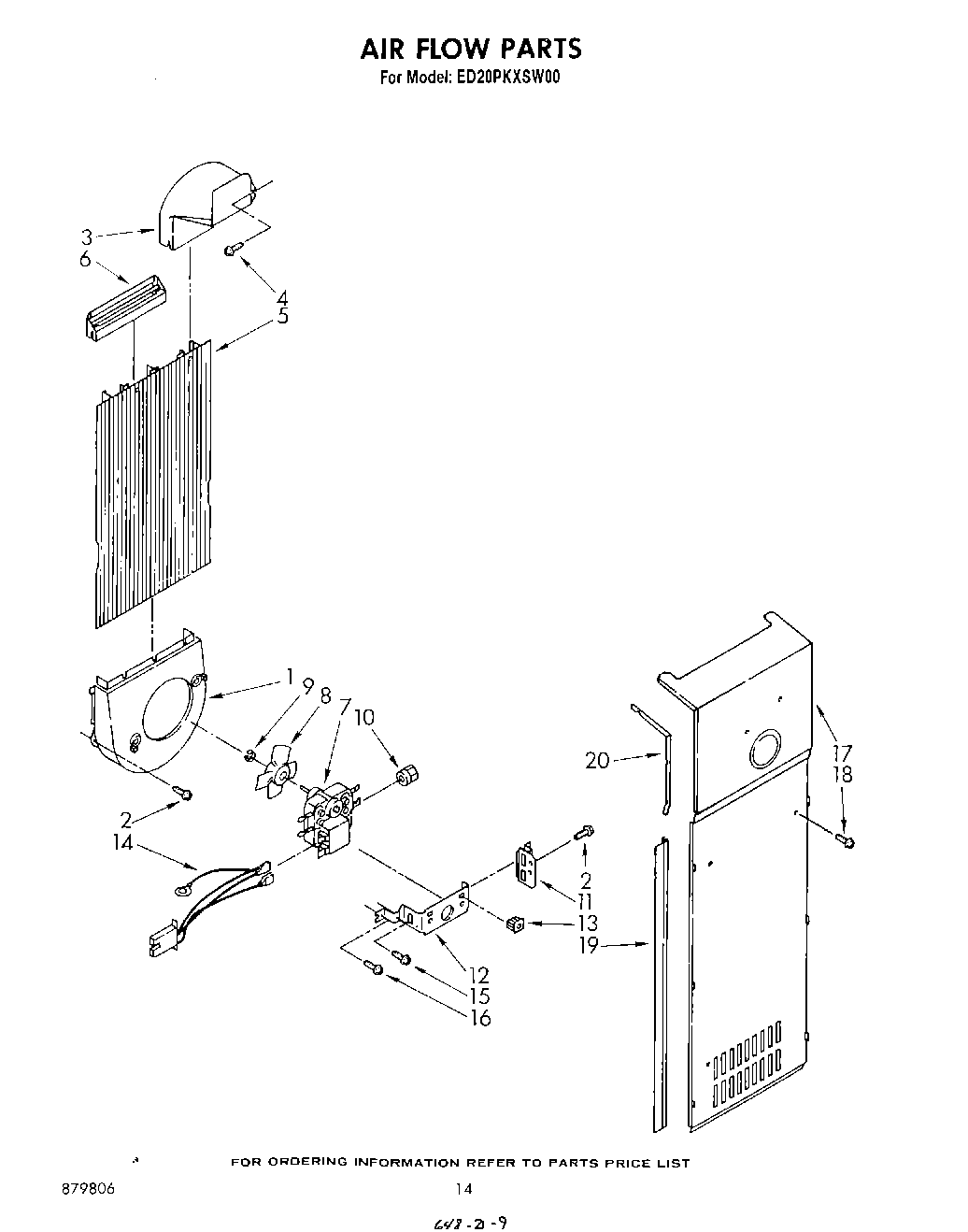

| 1 | Fan Scroll |
| 2 | W11624204 Whirlpool Screw |
| 3 | Air Scoop |
| 4 | WP488729 Whirlpool Refrigerator Door Screw |
| 5 | Air Duct Freezer |
| 6 | Diffuser Air Duct |
| 7 | 482469 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 8 | Blade, Fan |
| 9 | Ring, Compression |
| 10 | Grommet (3) |
| 11 | Fan, Bracket Double |
| 12 | Bracket, Fan Mounting (Single) |
| 13 | Screw Grommet |
| 14 | Fan Motor, Harness |
| 15 | WP489128 Whirlpool Refrigerator Screw |
| 16 | WP489069 Whirlpool Compactor Screw |
| 17 | Cover, Evaporator |
| 19 | Gasket, Evaporator Cover (2) |
| 20 | Gasket, Evaporator Cover Top (2) |
