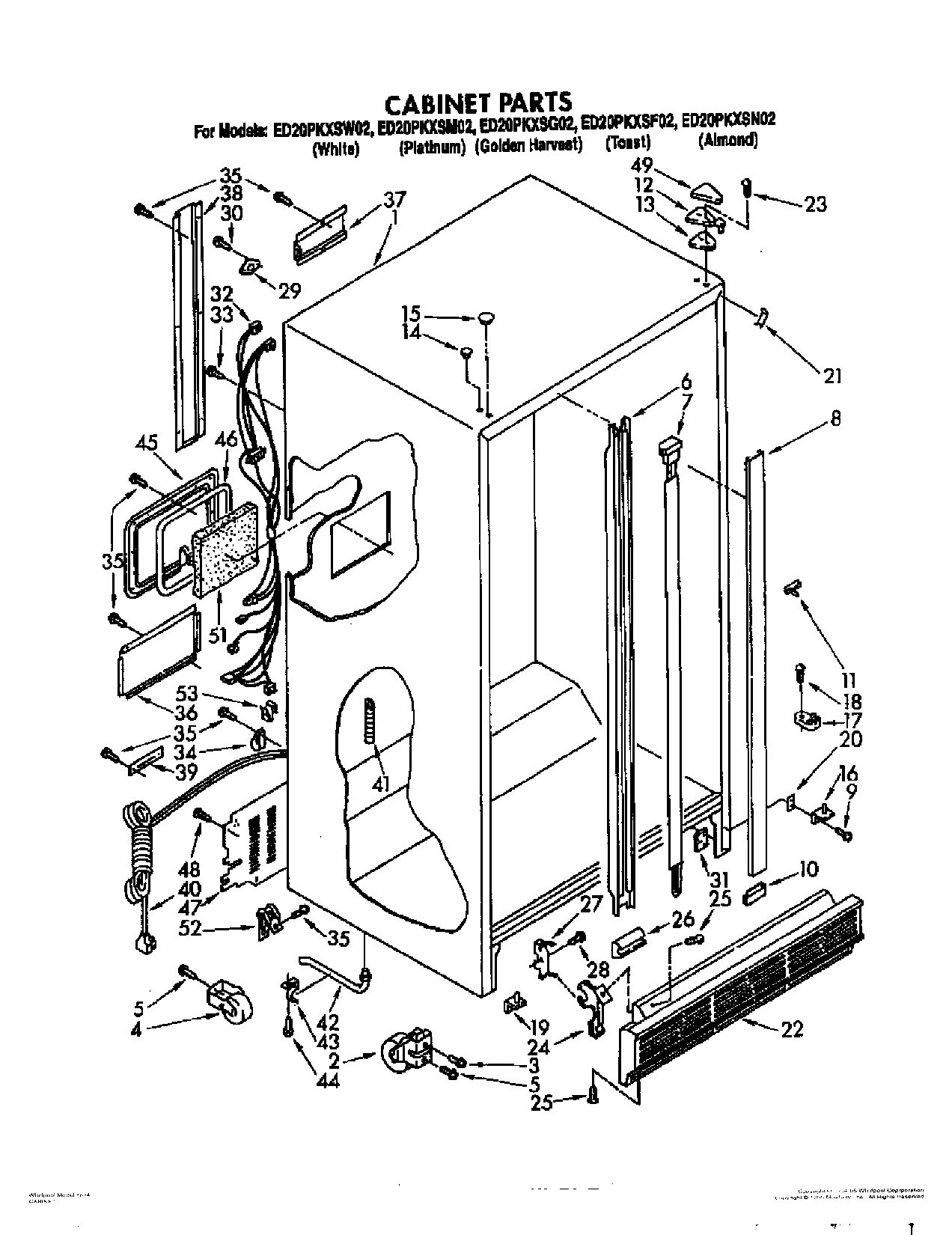

ED20PKXSW02 02 – CABINET

ED20PKXSW02 02 – CABINET

Written by

in

ED20PKXSW02 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Roller, Front
3Screw, 5/16-24 x 1
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5Screw, 1/4-28 x 1/2 (2)
6Mullion Rail
7Heater, Mullion
8Front Mullion Rail (Toast)
8Front Mullion Rail (Golden Harvest)
8Front Mullion Rail
8Front Mullion Rail (Platinum)
8Front Mullion Rail (Almond)
10Filler Bottom Mullion (White)
10Filler Bottom Mullion (Almond)
10Filler Bottom Mullion (Golden Harvest)
10Filler Bottom Mullion (Toast)
10Filler Bottom Mullion (Platinum)
11Clip, Ground
12Hinge, Top
13Shim, Hinge Top
14Hole, Plug (Toast)
14Hole, Plug (Platinum)
14Hole, Plug (White)
14Hole, Plug (Golden Harvest)
14Hole Plug (Almond)
15Hole Plug (Toast)
15Hole Plug (Almond)
15Hole Plug (White)
15Hole Plug (Bold)
15Hole Plug (Platinum)
16Hinge, Bottom R.H.
17WPW10329686 Whirlpool Door Cam Black
18WP486579 Whirlpool Air Conditioner Screw
19Hinge, Bottom (L.H.)
20Spacer, Hinge
21Filler, Wrapper (White)
21Filler, Wrapper (Platinum)
21Filler, Wrapper (Golden Harvest)
21Filler, Wrapper (Almond)
21Filler, Wrapper (Toast)
22Grille
23Screw (Repair)
23WP999367 Whirlpool Refrigerator Screw
24WP944224 Whirlpool Refrigerator Support
25Screw, 8-22 x 5/16 (4)
26Bumper, Grille
27WPL 989068
28W11624204 Whirlpool Screw
29WPL 1114614
31Tap Plate
32WPL 1123739
33WP250830 Whirlpool Refrigerator Screw
34Clamp
35SCREW
35WP489478 Whirlpool Refrigerator Screw
36Cover, Wiring
37Wiring Shield, Short
38Wiring Shield, Long
39Tube Clamp (2)
40Cord, Service
41Drain Ferrule
42WP1108438 Whirlpool Refrigerator Extension
43WP1108439 Whirlpool Refrigerator Clip
44Screw, 8-15 x 3/8
45Cover, Plug
46Sealing Gasket
47Cover, Unit
49Hinge Cover (Toast)
49Hinge Cover (Golden Harvest)
491119787 Whirlpool Refrigerator Hinge Cover
51Insulation
52549193 Whirlpool Refrigerator Power Clamp
53Clip, Wire (2)
