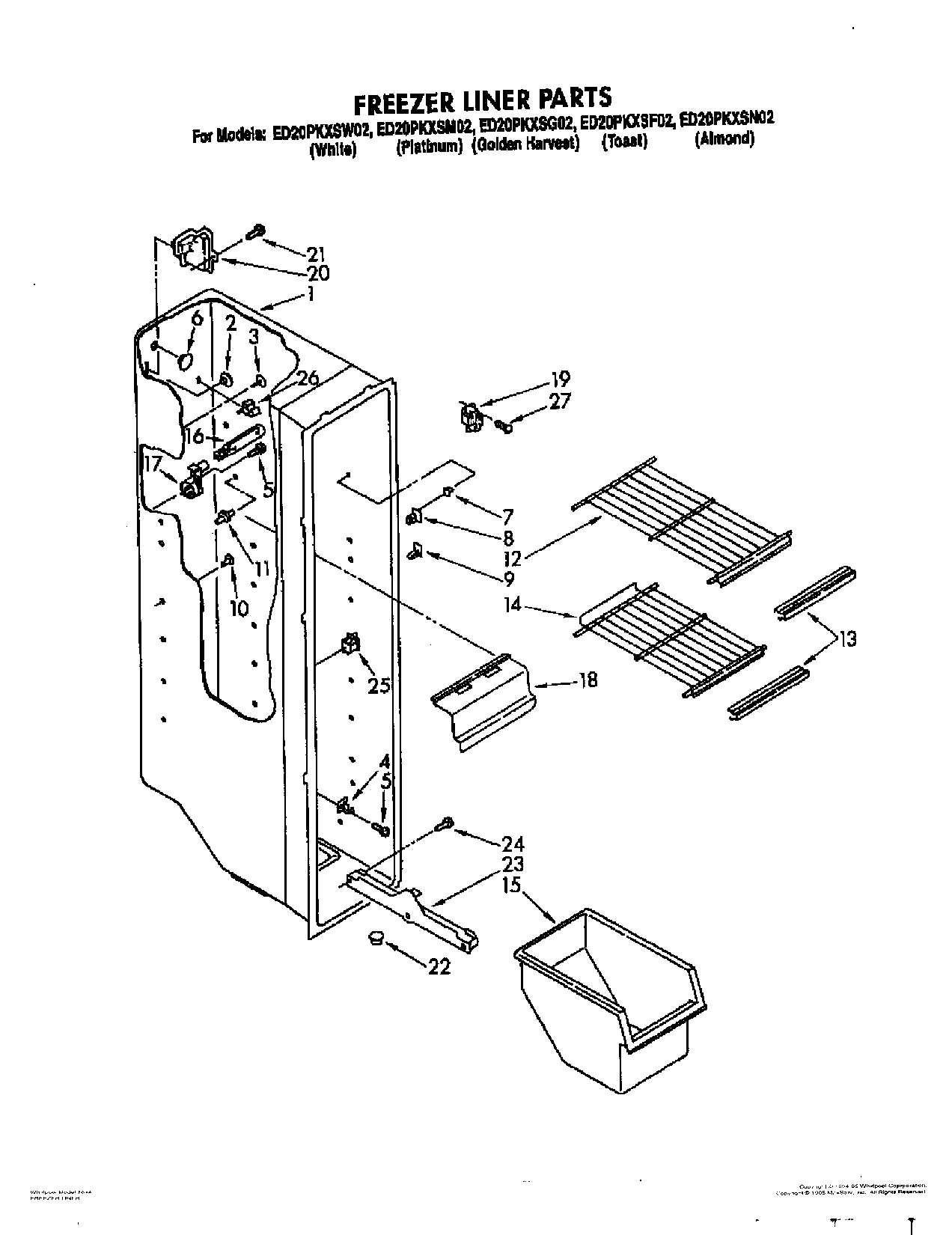

ED20PKXSW02 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Hole Plug (2)
3	WP941839 Whirlpool Refrigerator Button Plug
4	Evaporator, Support
5	W11624204 Whirlpool Screw
6	WPL 1120224
7	Stud, Support
8	Stud, Front R.S.
9	Stud, Rear R.S.
10	Grommet (8)
11	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12	Shelf
13	Trim Shelf
14	Shelf (3)
15	Freezer Bin
16	WP548049 Whirlpool Refrigerator Light Bulb
17	Socket Assembly
18	Lens, Light
19	Terminal Block, Multiple
20	Cover, Wiring
21	WP488729 Whirlpool Refrigerator Door Screw
22	Fitting, Drain
23	Slide, Basket (Left Side)
24	Screw, 8 x 1
25	W11384469 Whirlpool Door Switch
26	2215823 Whirlpool Refrigerator Clip
27	SCREW
27	WP489478 Whirlpool Refrigerator Screw
