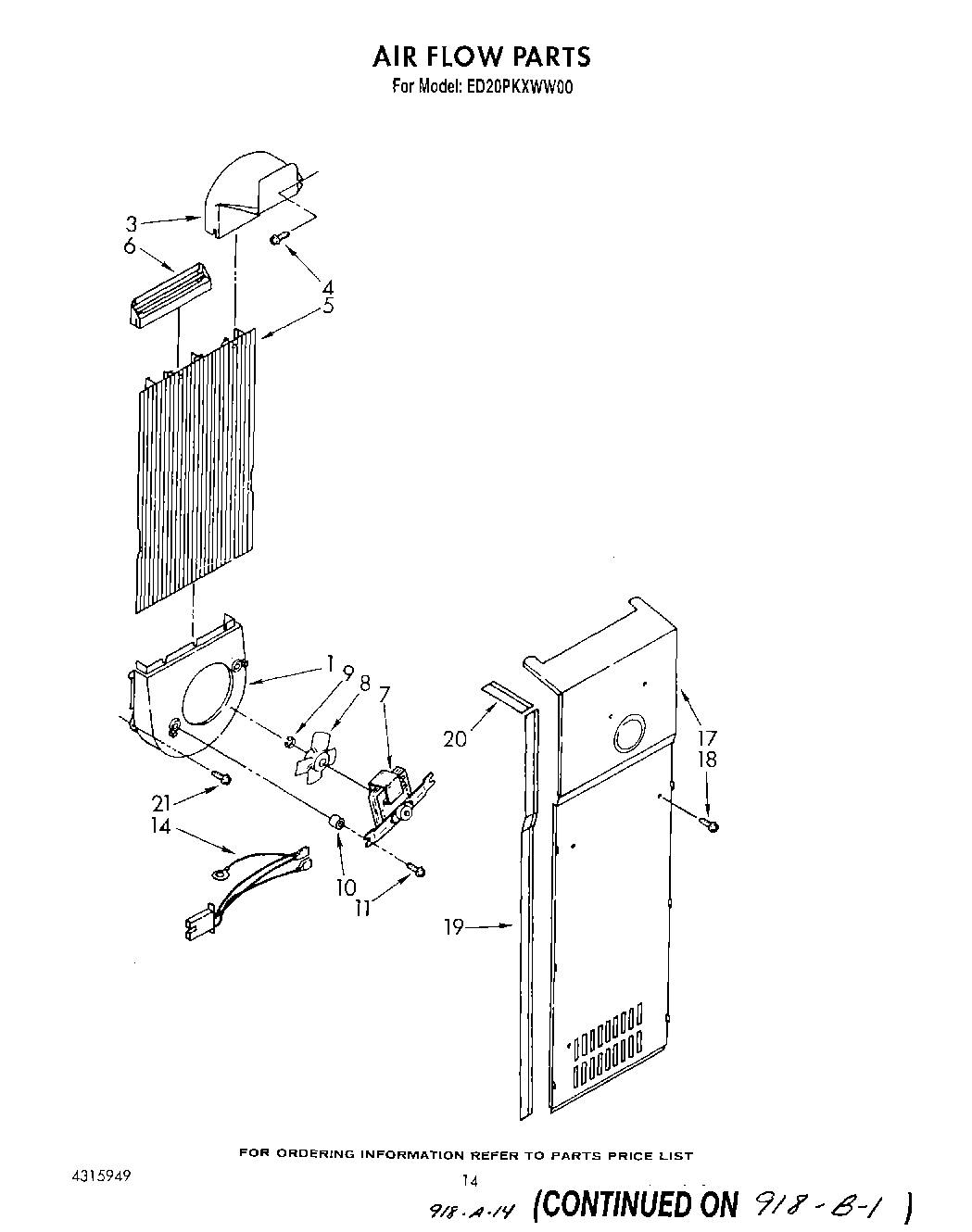

ED20PKXWG00 08 – AIR FLOW

Products

PositionProduct
1Fan Scroll
3Air Scoop
4WP488729 Whirlpool Refrigerator Door Screw
5Air Duct Freezer
6Diffuser Air Duct
7Fan Motor
8Blade, Fan
9Ring, Compression
10Fan Grommet (2)
11Screw (2)
14Wiring, Fan Motor
17Cover, Evaporator
19Gasket, Evaporator Cover (2)
20Gasket, Evaporator Cover Top (2)
21SCREW
21WP489478 Whirlpool Refrigerator Screw
