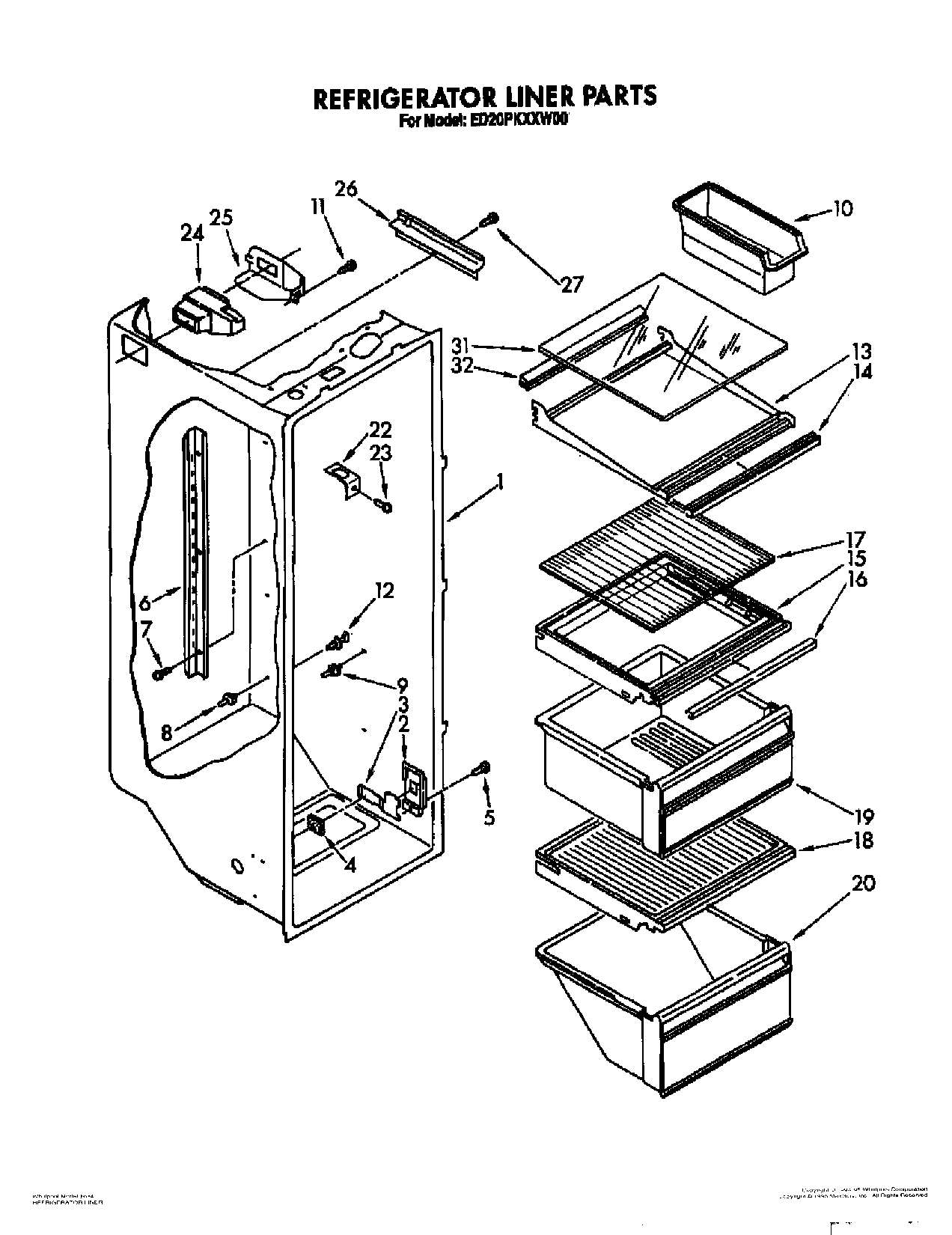

ED20PKXXW00 03 – REFRIGERATOR LINERadmin2025-04-26T11:50:00+00:00ED20PKXXW00 03 – REFRIGERATOR LINER
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | Escutcheon, Meat Pan Control |
| 3 | Slide, Meat Pan Control |
| 4 | Pad, Foam |
| 6 | Ladder, Shelf |
| 7 | WP488729 Whirlpool Refrigerator Door Screw |
| 8 | 4388538 Whirlpool Refrigerator Stud Shelf Kit (White) |
| 9 | WP2149540 Whirlpool Shelf Support |
| 10 | WP982704 Whirlpool Refrigerator Container |
| 11 | WP489478 Whirlpool Refrigerator Screw |
| 13 | Shelf, Cantilever |
| 14 | Trim, Shelf |
| 15 | WP1126289 Whirlpool Refrigerator Cover |
| 16 | Trim, Crisper Cover |
| 17 | Glass, Crisper Cover |
| 18 | WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan |
| 19 | WP2148279 Whirlpool Refrigerator Crisper Pan |
| 20 | Pan, Meat |
| 22 | WP2256085 Whirlpool Refrigerator Retainer |
| 23 | WP488488 Whirlpool Refrigerator Screw |
| 24 | WPW10151374 Whirlpool Refrigerator Diffuser |
| 25 | 2152019 Whirlpool Refrigerator Cover |
| 26 | Cover, Conduit |
| 27 | W10759522 Whirlpool Screw |
| 31 | Glass, Shelf |
| 32 | Reflector, Shelf |
