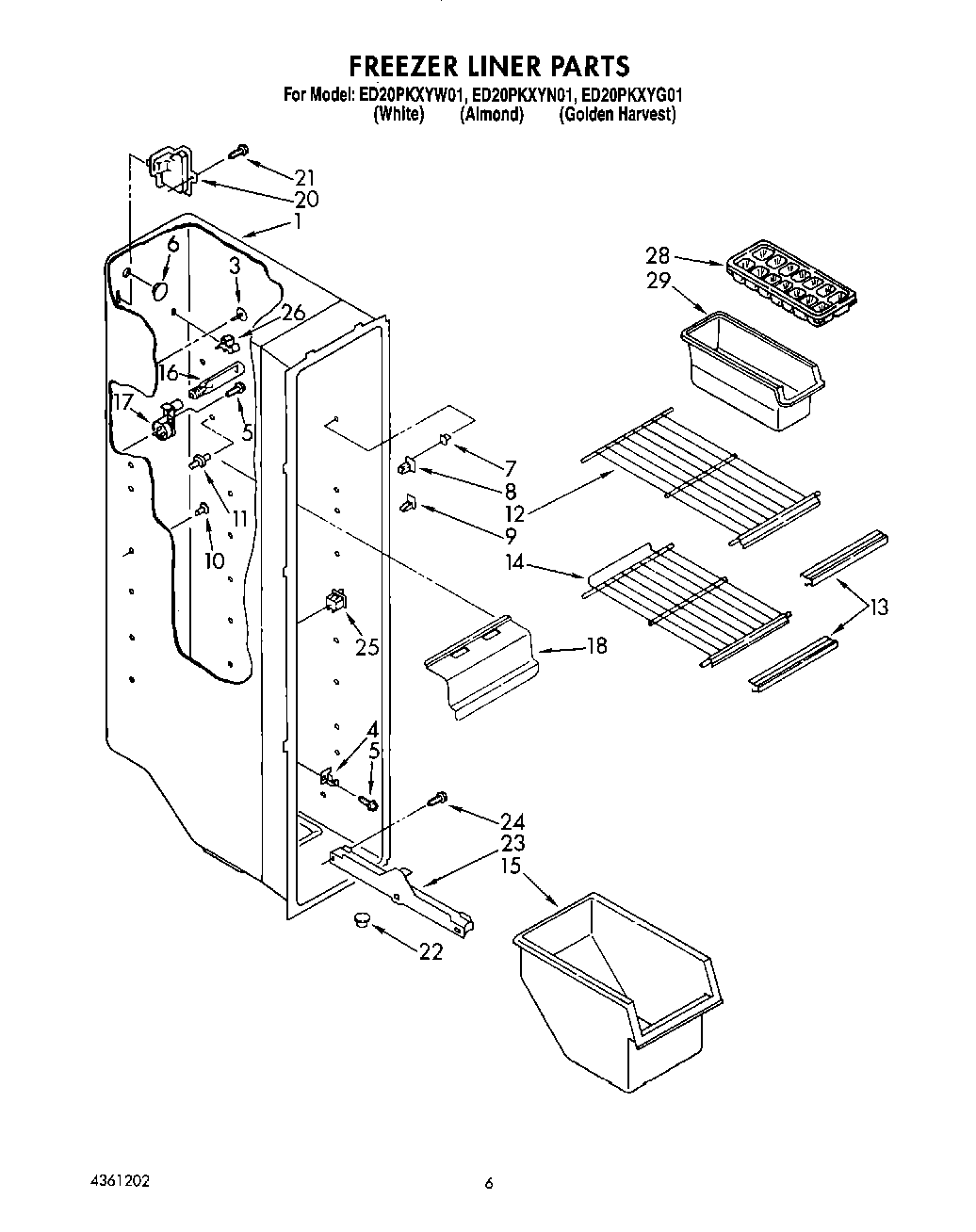

ED20PKXYN01 04 – FREEZER LINERadmin2025-04-26T11:50:16+00:00ED20PKXYN01 04 – FREEZER LINER
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 3 | Hole Plug (2) |
| 3 | WP941839 Whirlpool Refrigerator Button Plug |
| 4 | Evaporator, Support |
| 5 | WP489478 Whirlpool Refrigerator Screw |
| 6 | WPL 655411 |
| 7 | Stud, Support |
| 8 | Stud, Front R.S. |
| 9 | Stud, Rear R.S. |
| 10 | Grommet (8) |
| 11 | 4388538 Whirlpool Refrigerator Stud Shelf Kit (White) |
| 12 | Shelf |
| 13 | Trim Shelf |
| 14 | Shelf (3) |
| 15 | Bin, Freezer |
| 16 | WP548049 Whirlpool Refrigerator Light Bulb |
| 17 | Socket Assembly |
| 18 | Lens, Light |
| 20 | Cover, Wiring |
| 21 | WP488729 Whirlpool Refrigerator Door Screw |
| 22 | Fitting, Drain |
| 23 | Slide, Basket (Left Side) |
| 23 | W10845583 Whirlpool Refrigerator Track |
| 24 | Screw, 8 x 1 |
| 24 | 718257 Whirlpool Dishwasher Screw |
| 25 | W11384469 Whirlpool Door Switch |
| 26 | 2215823 Whirlpool Refrigerator Clip |
| 28 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 29 | WP982704 Whirlpool Refrigerator Container |
