ED20SKXXW00 03 – REFRIGERATOR LINER

ED20SKXXW00 03 – REFRIGERATOR LINER

Written by

in

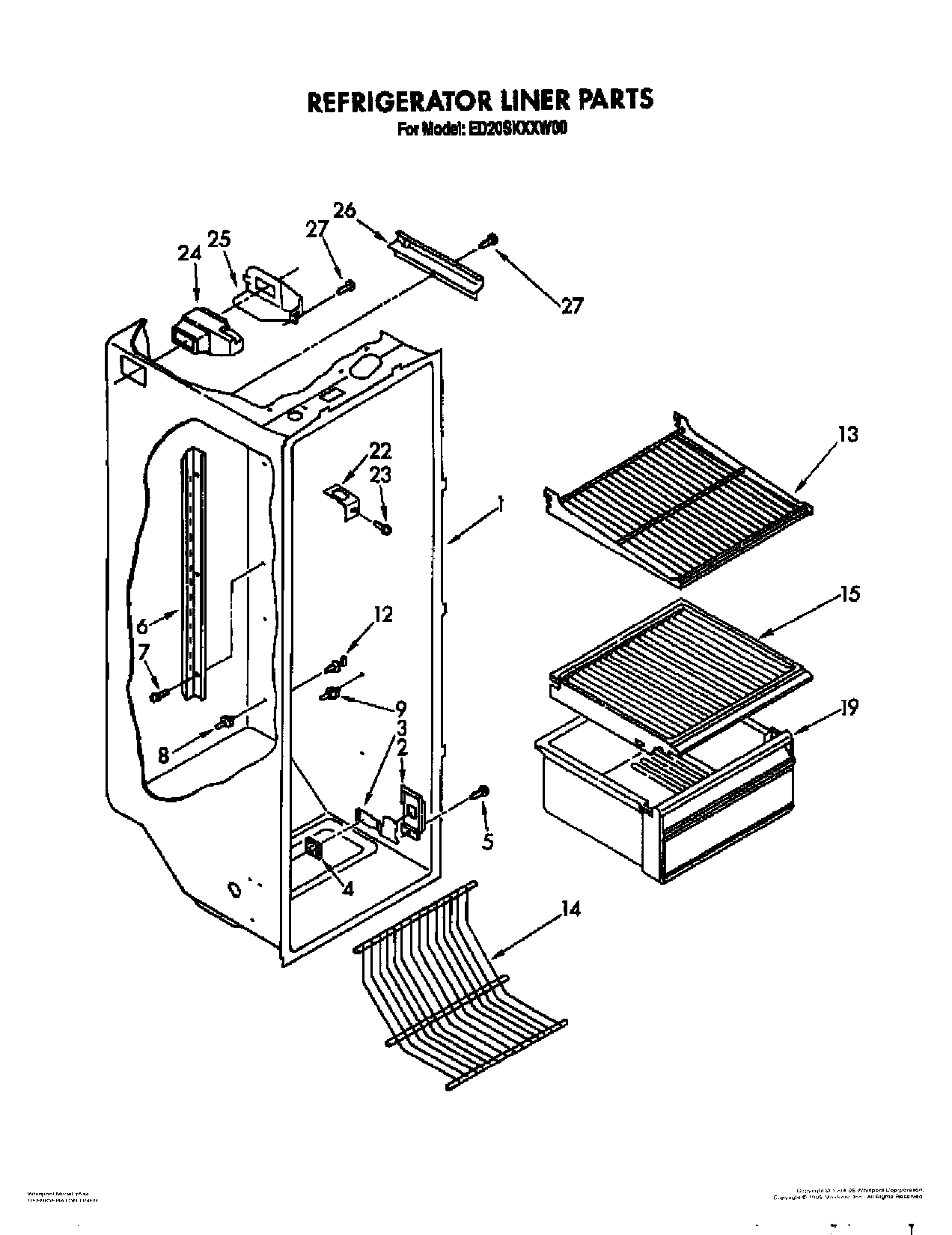

ED20SKXXW00 03 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Escutcheon Meat
3Slide, Meat Pan Control
4Pad, Foam
5WP489478 Whirlpool Refrigerator Screw
6Ladder, Shelf
7WP488729 Whirlpool Refrigerator Door Screw
84388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9WP2149540 Whirlpool Shelf Support
13Shelf, Cantilever
14Trivet
15Crisper Cover
19WP2148279 Whirlpool Refrigerator Crisper Pan
22WP2256085 Whirlpool Refrigerator Retainer
23WP488488 Whirlpool Refrigerator Screw
24WPW10151374 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
26Cover, Conduit
27W10759522 Whirlpool Screw
