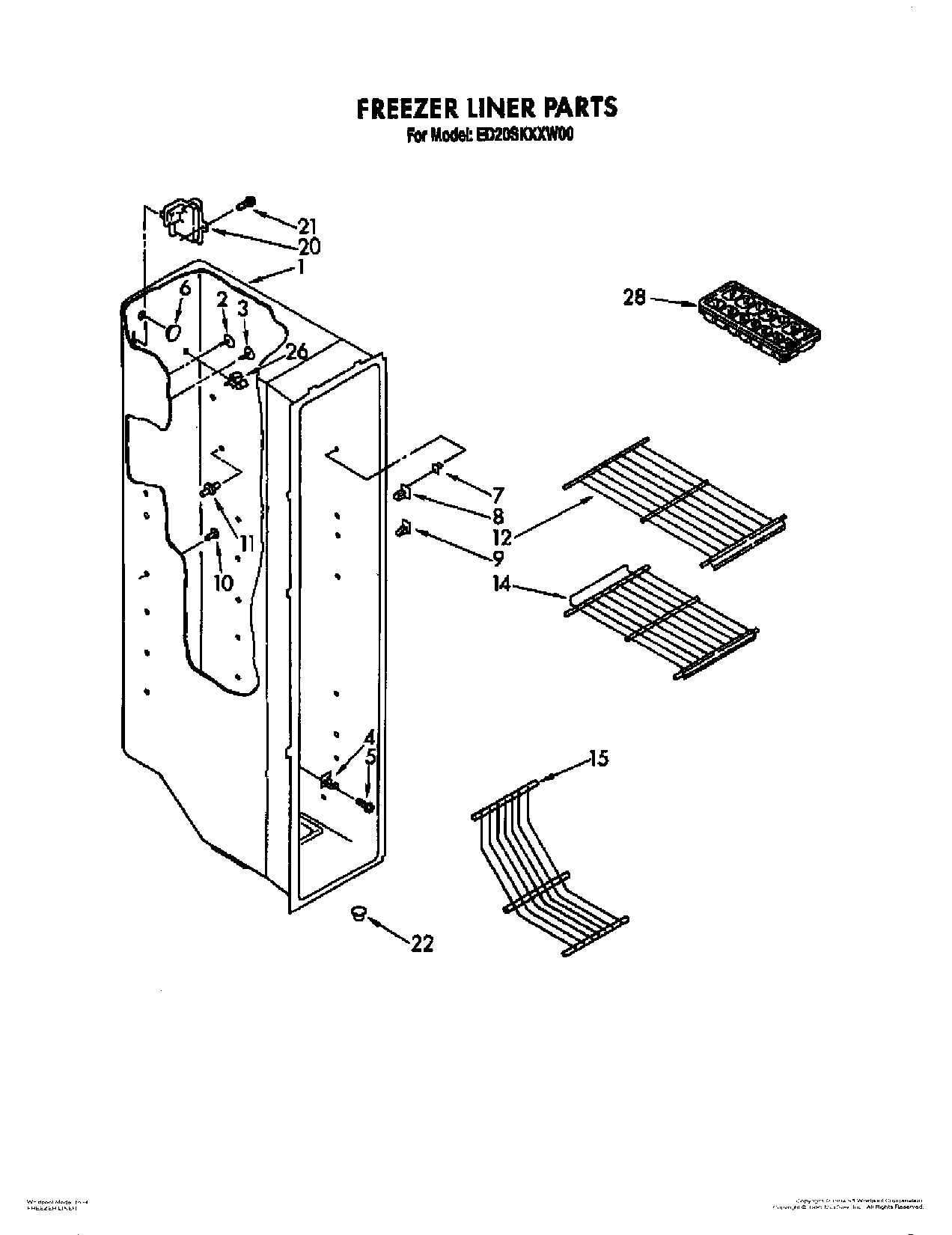

ED20SKXXW00 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Hole Plug (2)
3	WP941839 Whirlpool Refrigerator Button Plug
4	Evaporator, Support
5	WP489478 Whirlpool Refrigerator Screw
6	WPL 655411
7	Stud, Support
8	Stud, Front R.S.
9	Stud, Rear R.S.
10	Grommet (8)
11	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12	Shelf
14	Shelf (3)
15	Trivet
20	Cover, Wiring
21	WP488729 Whirlpool Refrigerator Door Screw
22	Fitting, Drain
26	2215823 Whirlpool Refrigerator Clip
28	WP841180A Whirlpool Microwave Glass Turntable Tray
