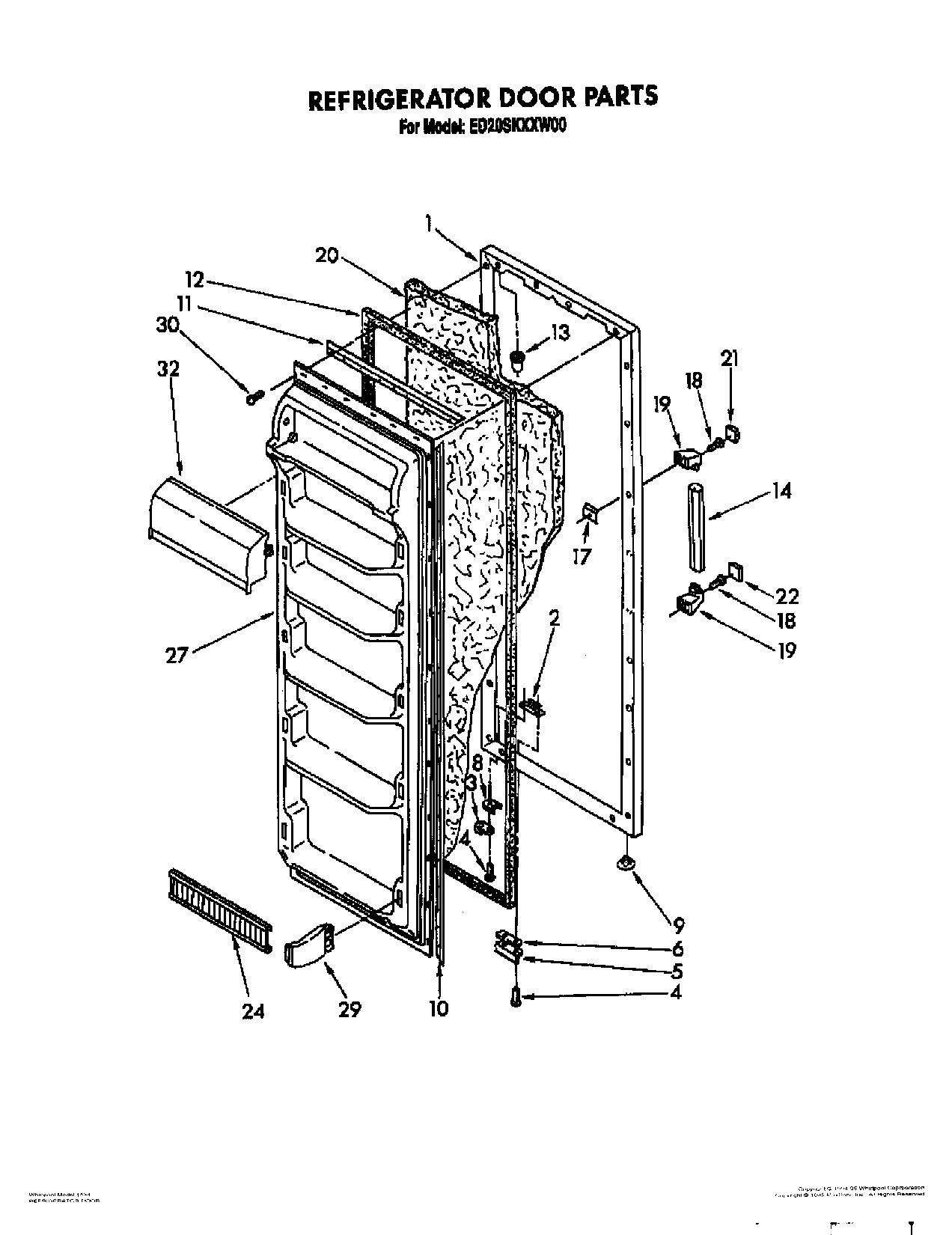

ED20SKXXW00 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Also Order Item 20)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
8	WP1104787 Whirlpool Refrigerator Shim
9	Hole Plug (2)
10	Retainer, Gasket
11	Gasket Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Handle, Center
17	WP939101 Whirlpool Refrigerator Plate
18	Screw, 8-15 x 1-5/8
19	End Cap, Handle (2)
20	WPL 876029
21	Insert, Cover (Top)
22	Insert, Screw Cover
24	Trim, Door Shelf (5)
27	Panel, Interior Door
29	Retainer, Door Trim
32	Door, Compartment
