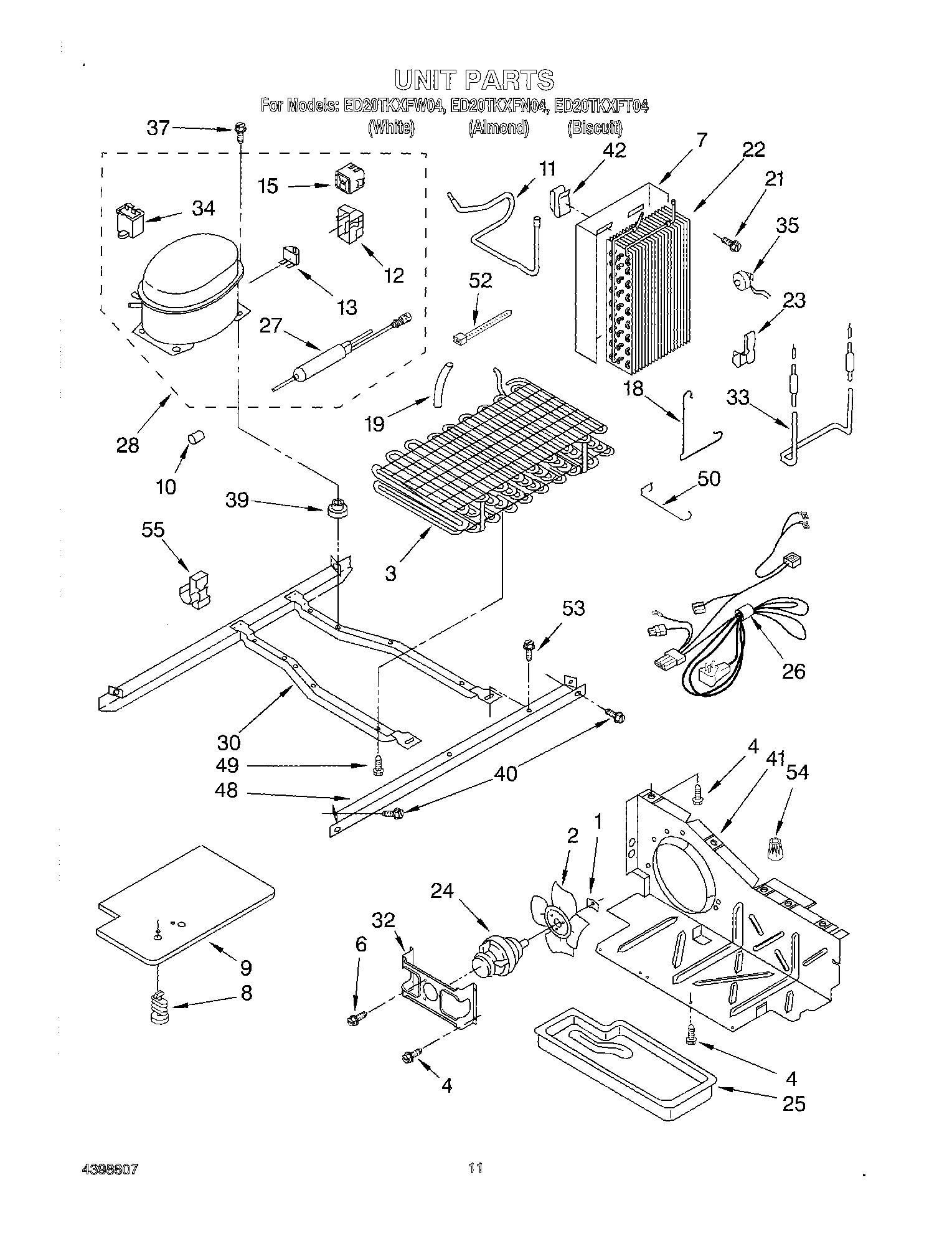

ED20TKXFN04 07 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	489396 Whirlpool Refrigerator Clip
9	Unit Cover, Bottom
10	WP2158826 Whirlpool Refrigerator Dampener
11	2205764 Whirlpool Refrigerator Tube
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	OVERLOAD
15	8201799 Whirlpool Refrigerator Compressor Start Device Relay and Overload Kit
18	Clamp
19	SLEEVE
21	WP965173 Whirlpool Dishwasher Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clip
24	W10822259 Whirlpool Refrigerator Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
30	Unit Mounting Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	WP4387764 Whirlpool Run Capacitor
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	Screw
39	W11661108 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	978027 Whirlpool Refrigerator Primary Valve
55	978030 Whirlpool Refrigerator Valve
55	VALVE, ACCESS (5/8“)
55	876764 Whirlpool Refrigerator Primary Valve
55	VALVE, ACCESS (1/2“)
55	WP978025 Whirlpool Refrigerator Valve
55	978026 Whirlpool Refrigerator Primary Valve
55	Clip, Wire & Tube
