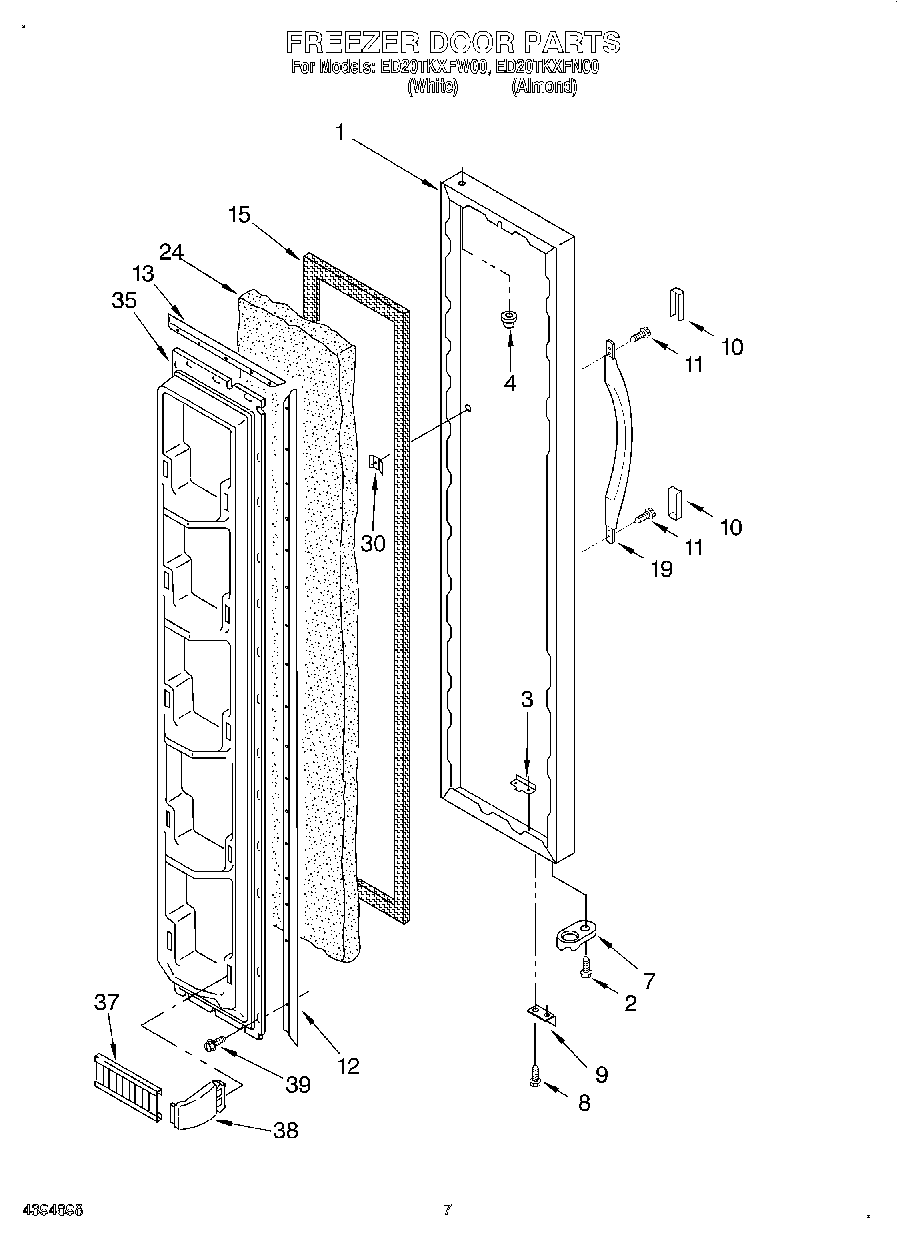

ED20TKXFW00 05 – FREEZER DOORadmin2025-04-26T11:51:12+00:00ED20TKXFW00 05 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer, Door Panel (Almond) |
| 1 | Freezer Door Panel |
| 2 | WP3400012 Whirlpool Refrigerator Screw |
| 3 | Tap, Plate |
| 4 | Cap, Hinge Sleeve (2) |
| 7 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 8 | WP489483 Whirlpool Screw |
| 9 | Bracket, Door Stop (Chrome) |
| 10 | Endcap, Handle (2) (Almond) |
| 10 | WP2193353W Whirlpool Refrigerator Trim Handle |
| 11 | WP489491 Whirlpool Refrigerator Screw |
| 12 | Retainer, Gasket |
| 13 | Retainer, Gasket |
| 15 | 2188405A Whirlpool Refrigerator Door Gasket |
| 19 | Handle, Center (Almond) |
| 19 | Handle, Center (White) |
| 24 | WPL 876029 |
| 30 | Screw Anchor (2) |
| 35 | Panel, Interior Door |
| 37 | Trim, Door Shelf |
| 38 | WP2196100 Whirlpool Shelf Retainer Bar Support |
| 39 | WP489069 Whirlpool Compactor Screw |
