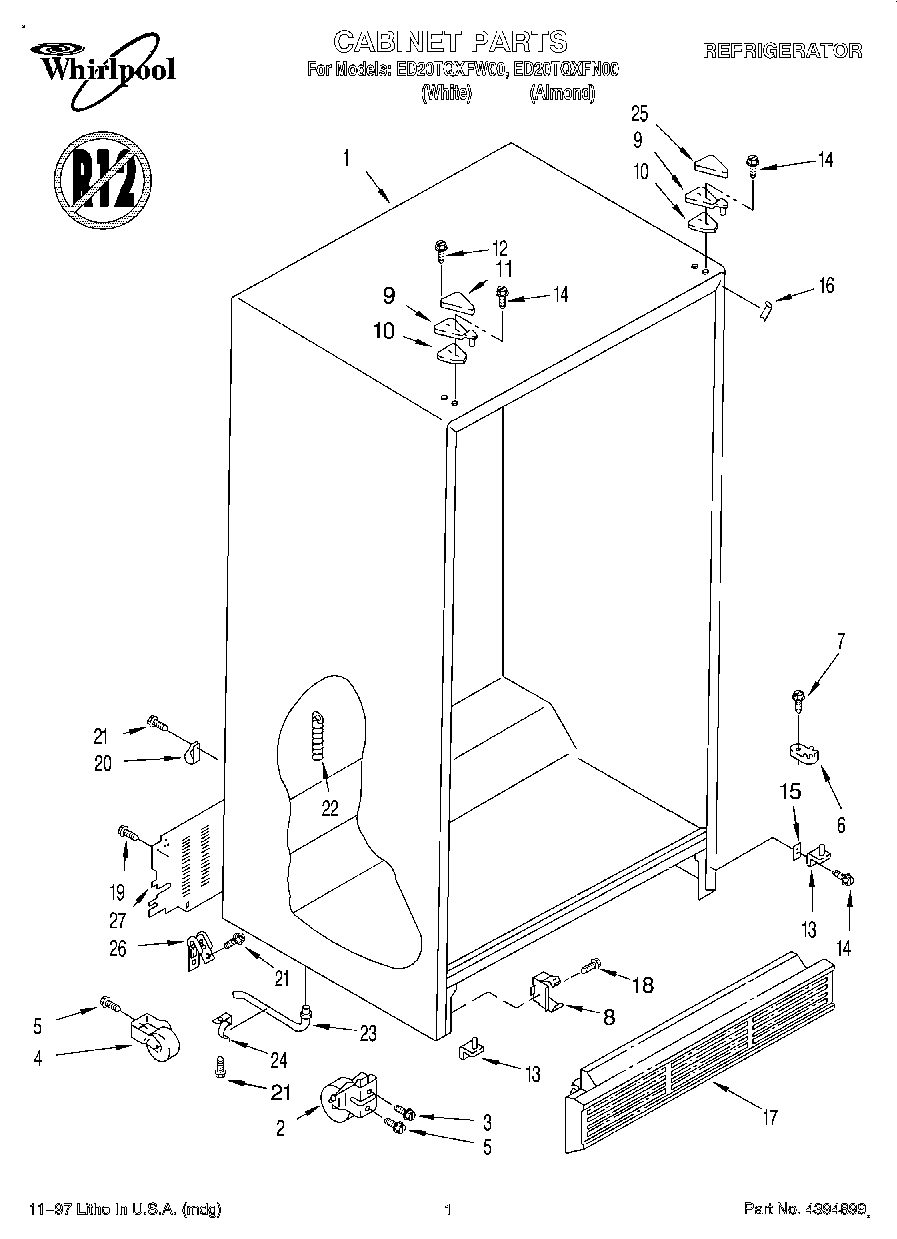

ED20TQXFW00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WPW10329686 Whirlpool Door Cam Black
7	WP489483 Whirlpool Screw
8	WP2155013 Whirlpool Refrigerator Clip
9	WP2196046 Whirlpool Refrigerator Door Hinge
10	Shim, Hinge Top
11	WP1129262 Whirlpool Refrigerator Cover
12	Screw
13	8201707 Whirlpool Door Hinge
14	WP489497 Whirlpool Screw
15	WP2181911 Whirlpool Refrigerator Shim
16	Filler, Wrapper (White)
16	Filler, Wrapper (Almond)
17	Grille (Almond)
17	Grille (White)
18	WP489478 Whirlpool Refrigerator Screw
20	WP488366 Whirlpool Refrigerator Clamp
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	WP1108438 Whirlpool Refrigerator Extension
24	WP1108439 Whirlpool Refrigerator Clip
25	1119787 Whirlpool Refrigerator Hinge Cover
26	549193 Whirlpool Refrigerator Power Clamp
27	WP2188756 Whirlpool Refrigerator Unit Cover
