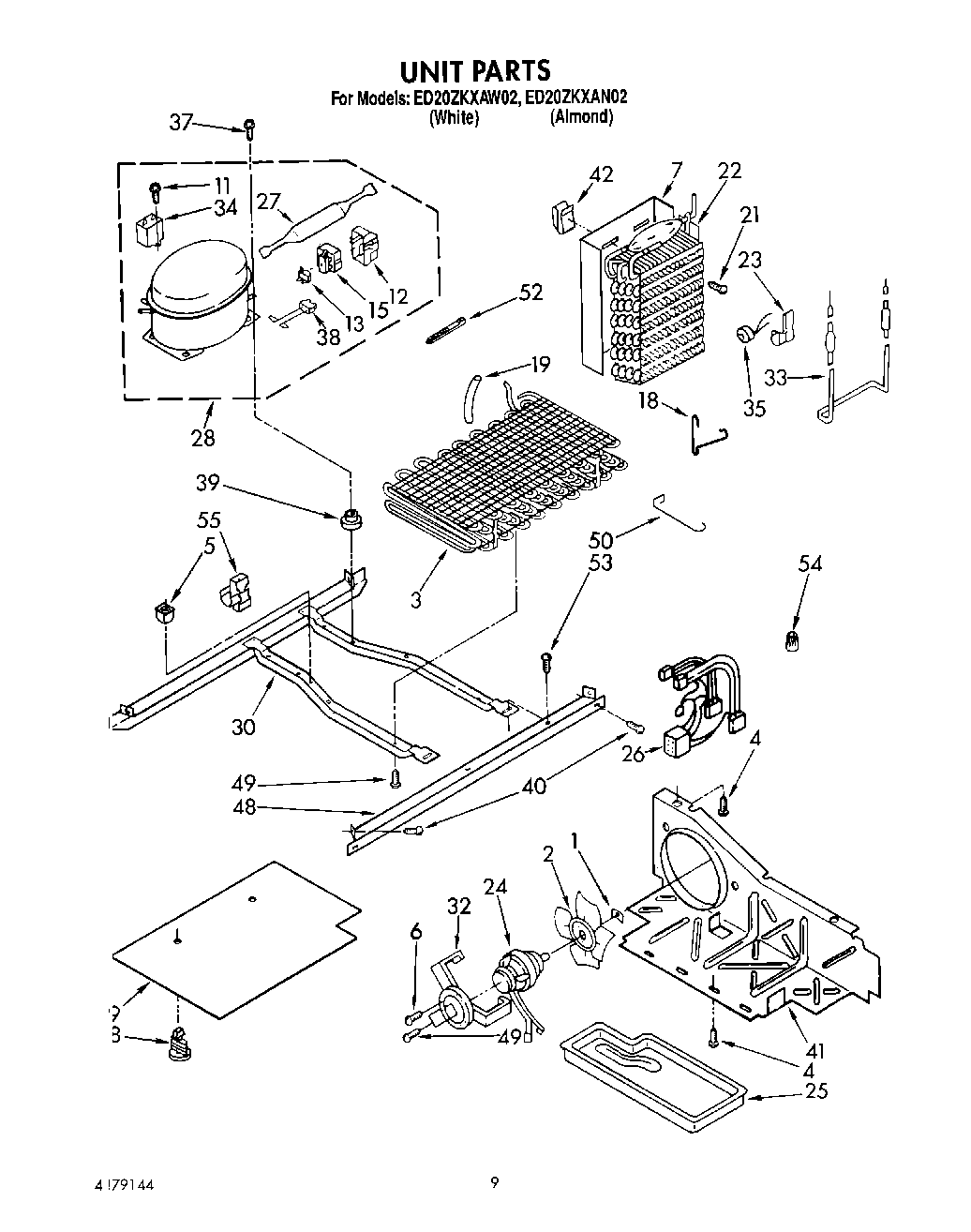

| 1 | WP486692 Whirlpool Refrigerator Nut |
| 2 | Fan, Blade |
| 3 | Condenser Assembly |
| 4 | WP489464 Whirlpool Refrigerator Screw |
| 5 | Screw Grommet |
| 6 | 681390 Whirlpool Refrigerator Screw |
| 7 | Heat Shield |
| 8 | 489396 Whirlpool Refrigerator Clip |
| 9 | Cover-Unit Btm. |
| 11 | W11693756 Whirlpool Screw Assembly |
| 12 | Cover |
| 12 | WP2162358 Whirlpool Refrigerator Terminal Cover |
| 13 | OVERLOAD |
| 15 | Relay (See Overload) |
| 18 | Clamp |
| 19 | SLEEVE |
| 21 | WP965173 Whirlpool Dishwasher Screw |
| 22 | WP2188822 Whirlpool Refrigerator Evaporator |
| 23 | Clip |
| 24 | 833697 Whirlpool Condenser Fan Motor |
| 25 | WPW10614158 Whirlpool Refrigerator Evaporator Tray |
| 26 | Wiring Assembly, Intermediate |
| 27 | W10843121 Whirlpool Refrigerator Tube |
| 28 | W10309990 Whirlpool Refrigerator Compressor |
| 30 | Unit Mounting Frame |
| 32 | Fan, Motor Bracket |
| 33 | Heater, Defrost |
| 34 | Running Capacitor (Service) |
| 35 | WPW10225581 Whirlpool Refrigerator Defrost Thermostat |
| 38 | WP2172890 Whirlpool Refrigerator Wire |
| 39 | 876811 Whirlpool Grommet |
| 40 | 489340 Whirlpool Refrigerator Screw |
| 41 | Air Baffle |
| 42 | Clip, Heat Shield |
| 48 | Unit Mounting Rail |
| 49 | Screw, 8 x 3/8 |
| 50 | 1105612 Whirlpool Fan Guard |
| 52 | WPW10339879 Whirlpool Wire Tie |
| 53 | WP489427 Whirlpool Refrigerator Screw |
| 54 | Wire Connector |
| 55 | WP978025 Whirlpool Refrigerator Valve |
| 55 | 978030 Whirlpool Refrigerator Valve |
| 55 | VALVE, ACCESS (1/2``) |
| 55 | 978026 Whirlpool Refrigerator Primary Valve |
| 55 | Clip, Wire |
| 55 | 876764 Whirlpool Refrigerator Primary Valve |
| 55 | 978027 Whirlpool Refrigerator Primary Valve |
| 55 | VALVE, ACCESS (5/8``) |
