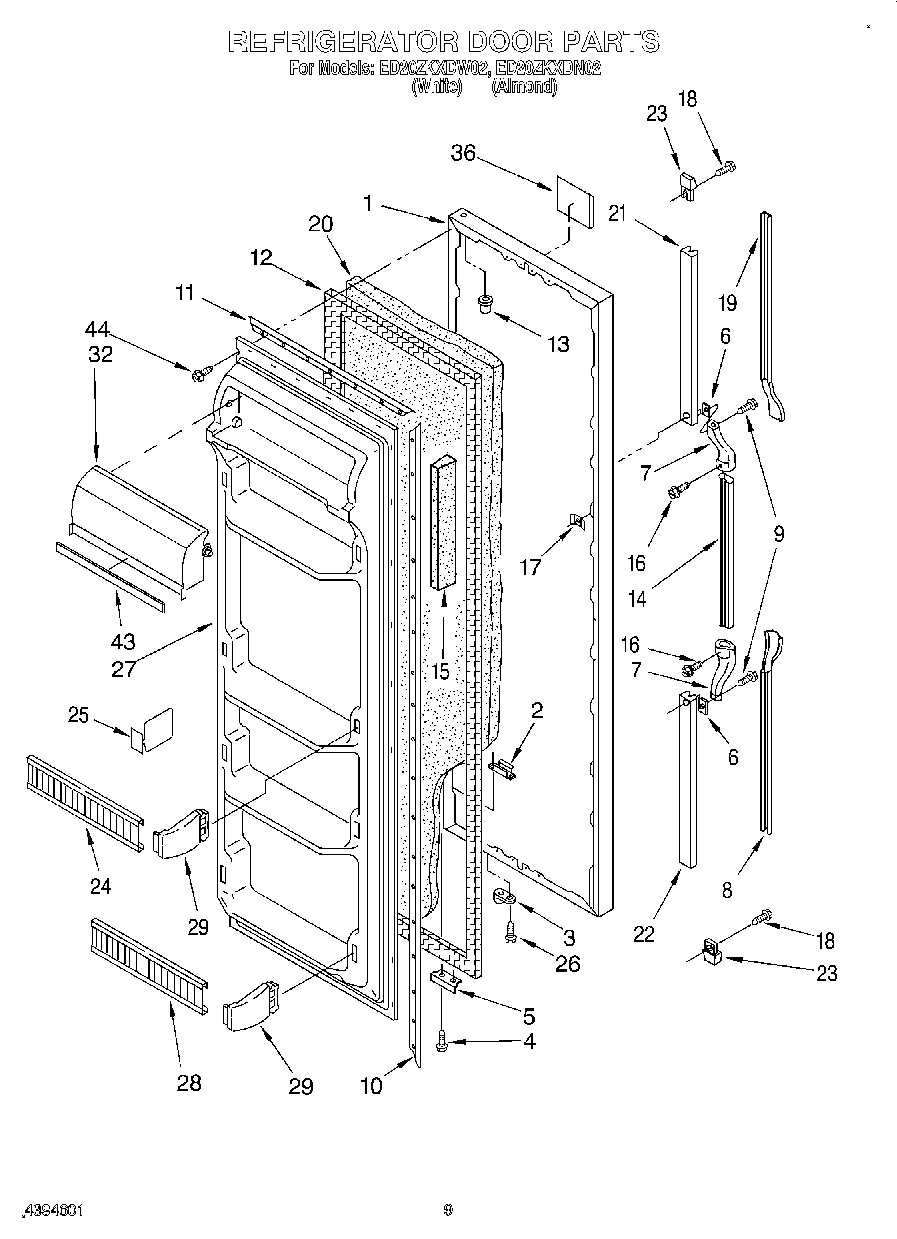

ED20ZKXDN02 06 – REFRIGERATOR DOOR

Written by

Products

Position	Product
1	Refrigerator Door Panel (Almond (Also Order Item 20))
1	Refrigerator Door Panel (White)
2	Tap, Plate
4	WP489483 Whirlpool Screw
5	Bracket, Door Stop
6	Shim
7	End Cap, Center Handle
8	Insert, Bottom (White)
8	Insert, Bottom (Almond)
9	WP489463 Whirlpool Refrigerator Screw
10	Retainer, Gasket
11	Gasket Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Handle, Center (Almond)
14	Handle, Center (White)
15	Reinforcement, Shelf
16	Screw
17	Screw Anchor (2)
18	Screw
19	Insert, Top (White)
19	Insert, Top (Almond)
20	WPL 876029
21	Insert Retainer (Top)
22	Retainer, Bottom
23	End Cap (2)
24	WP2182189 Whirlpool Door Shelf Bar
25	Divider-Door
26	WP3400012 Whirlpool Refrigerator Screw
27	Panel, Interior Door
28	WP2256010 Whirlpool Door Shelf Trim
29	WP2196190 Whirlpool Shelf Retainer Bar Support
29	4318165 Whirlpool Refrigerator Door Closure Cam Kit
32	Door, Compartment
36	Nameplate (Almond Model)
36	Nameplate (White)
43	Trim, Compartment Door
44	WP489069 Whirlpool Compactor Screw
