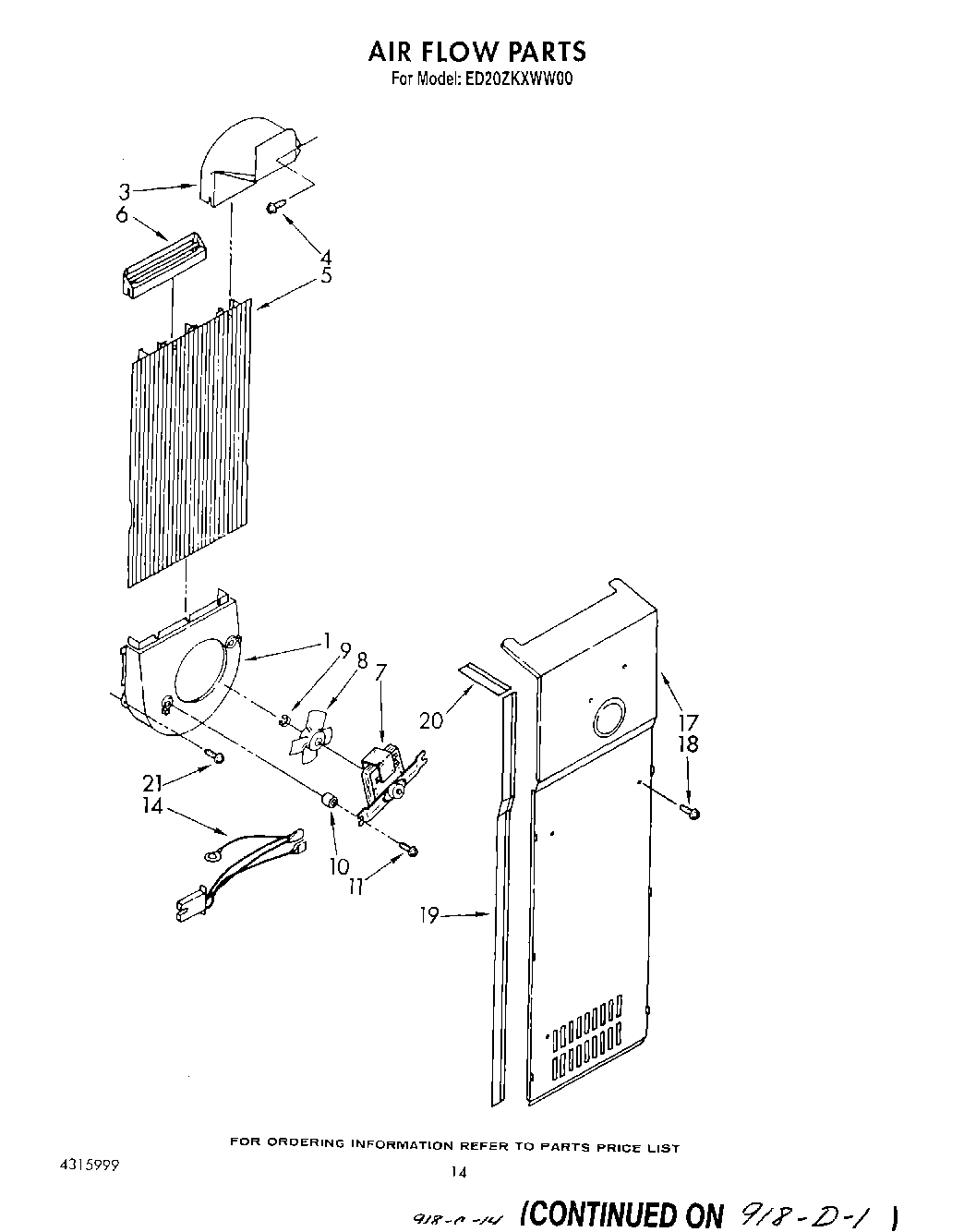

ED20ZKXWN00 08 – AIR FLOW

Written by

Products

Position	Product
1	Fan Scroll
3	Air Scoop
4	WP488729 Whirlpool Refrigerator Door Screw
5	Air Duct Freezer
6	Diffuser, Air Duct
7	Fan Motor
8	Blade, Fan
9	Ring, Compression
10	Fan Grommet (2)
11	Screw (2)
14	Wiring, Fan Motor
17	Cover, Evaporator
19	Gasket, Evaporator Cover (2)
20	Gasket, Evaporator Cover Top (2)
21	SCREW
21	WP489478 Whirlpool Refrigerator Screw
