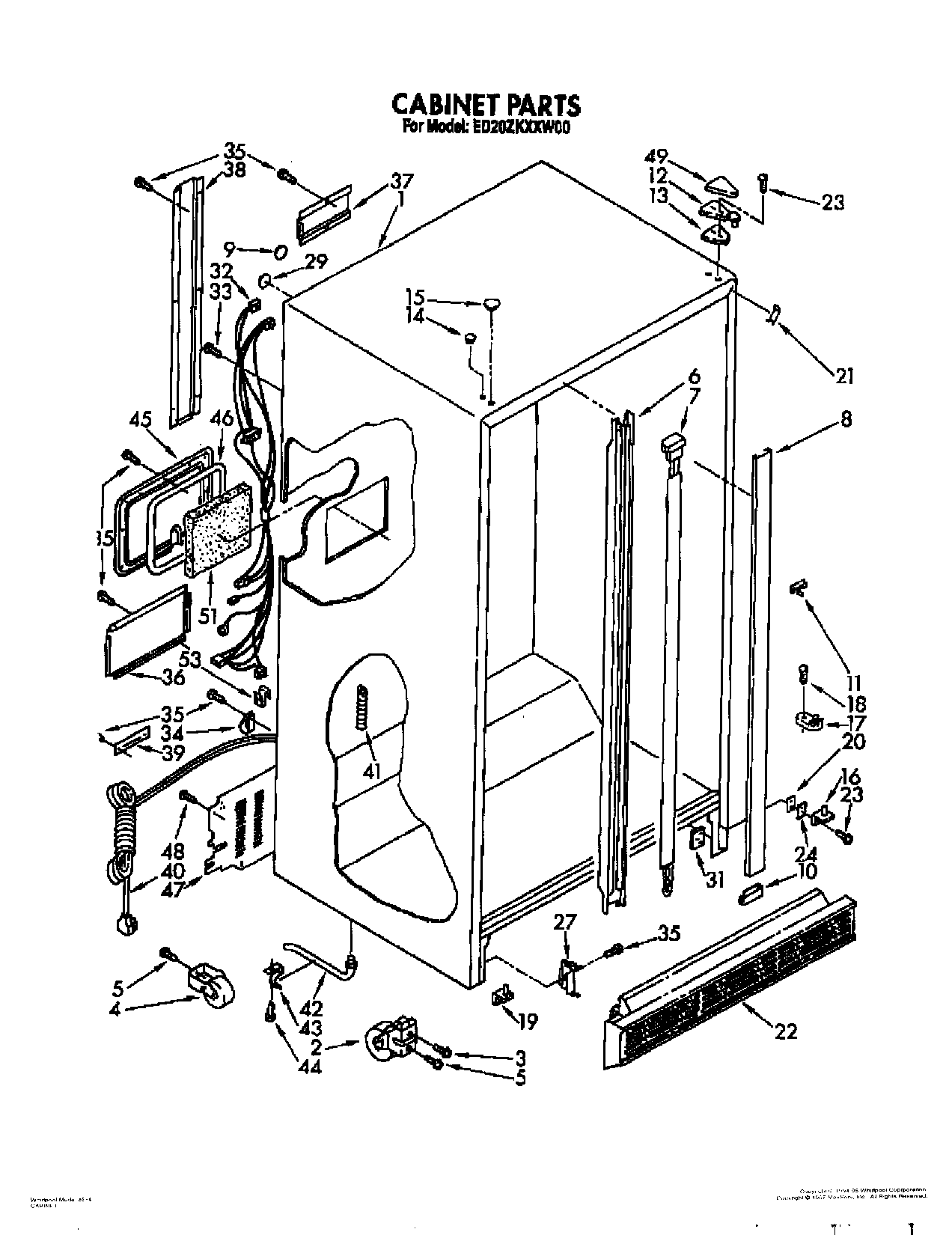

ED20ZKXXN00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	Mullion Rail
7	Heater, Mullion
8	Front Mullion Rail
8	Front Mullion Rail (Golden Harvest)
8	Front Mullion Rail (Almond)
9	WPL 1120224
10	Filler Bottom Mullion (Golden Harvest)
10	Filler Bottom Mullion (Almond)
10	Filler Bottom Mullion (White)
11	Clip, Ground
12	Hinge, Top
13	Shim, Hinge Top
14	Hole, Plug (White)
14	Hole, Plug (Golden Harvest)
14	Hole Plug (Almond)
15	Hole Plug (Bold)
15	Hole Plug (Almond)
15	Hole Plug (White)
16	Hinge Bottom (R.H.)
17	WPW10329686 Whirlpool Door Cam Black
18	WP489399 Whirlpool Refrigerator Screw
19	hinge Bottom (L.H.)
20	Spacer, Hinge
21	Filler, Wrapper (Almond)
21	Filler, Wrapper (Golden Harvest)
21	Filler, Wrapper (White)
22	Grille (Black)
23	WP489349 Whirlpool Refrigerator Screw
24	Shim, Bottom Hinge
27	WP2155013 Whirlpool Refrigerator Clip
29	Hole Seal
31	Tap Plate (2)
32	Cabinet Harness
33	WP250830 Whirlpool Refrigerator Screw
34	Clamp
35	WP489478 Whirlpool Refrigerator Screw
36	Cover, Wiring
37	Wiring Shield, Short
38	Wiring Shield, Long
39	Tube Clamp (2)
40	Cord, Service
41	Drain Ferrule
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
44	Screw, 8-15 x 3/8
45	Cover, Plug
46	Sealing Gasket
47	Cover, Unit
48	WP489464 Whirlpool Refrigerator Screw
49	Hinge Cover (Golden Harvest)
49	1119787 Whirlpool Refrigerator Hinge Cover
51	Insulation
53	Clip, Wire (2)
