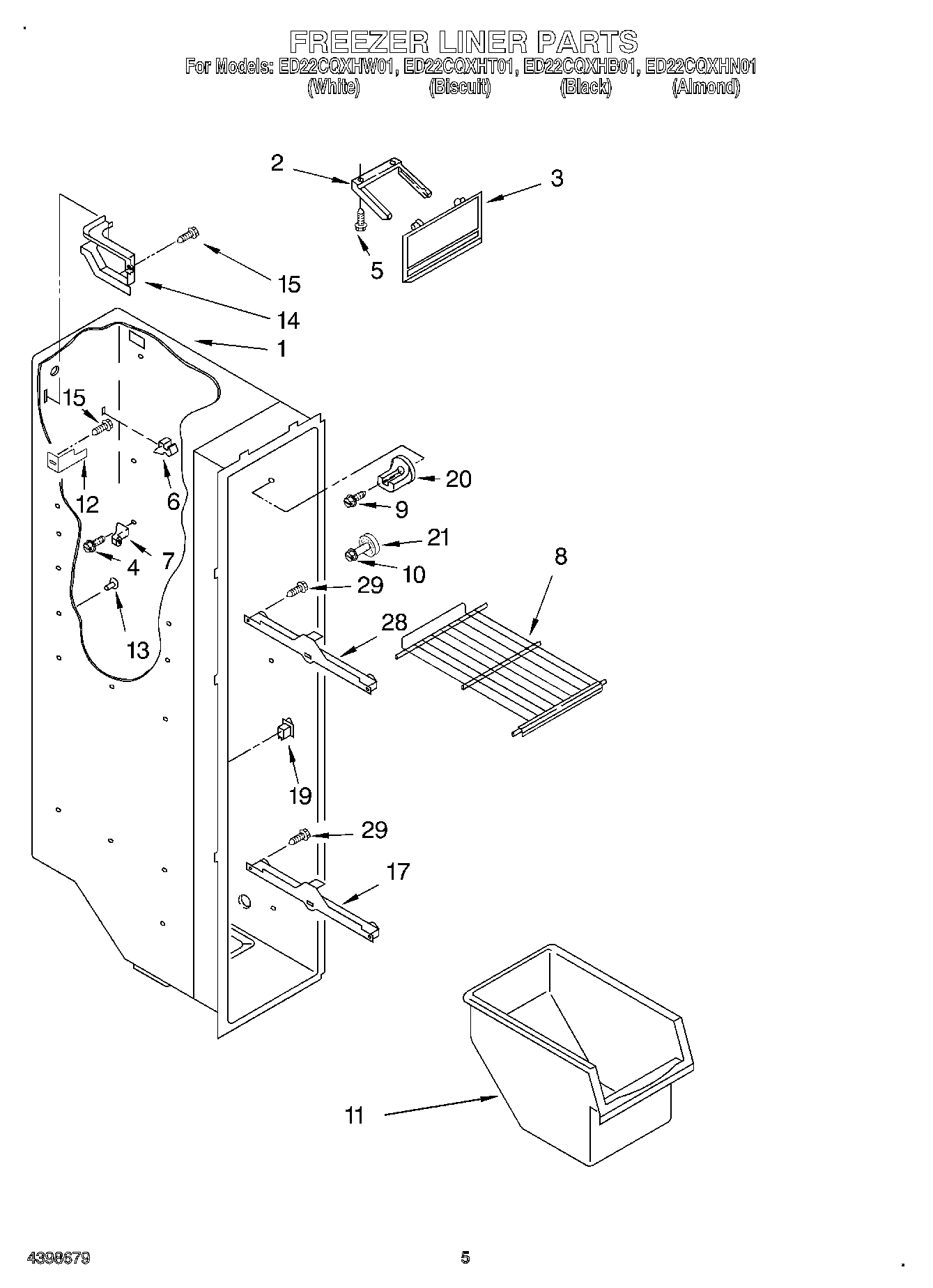

ED22CQXHB01 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	WP2174249K Whirlpool Refrigerator Wire Shelf
8	Shelf (2)
9	W10142289 Whirlpool Air Conditioner Screw
10	WP3400806 Whirlpool Screw
11	Bin, Freezer
12	Bracket, Fill Tube
13	Grommet
14	Cover, Wiring
15	SCREW
17	Slide, Basket (Left Side)
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	Stud, Rear
21	WP2196483 Whirlpool Refrigerator Shelf Stud
28	W10845583 Whirlpool Refrigerator Track
28	W10845585 Whirlpool Refrigerator Track
29	718257 Whirlpool Dishwasher Screw
