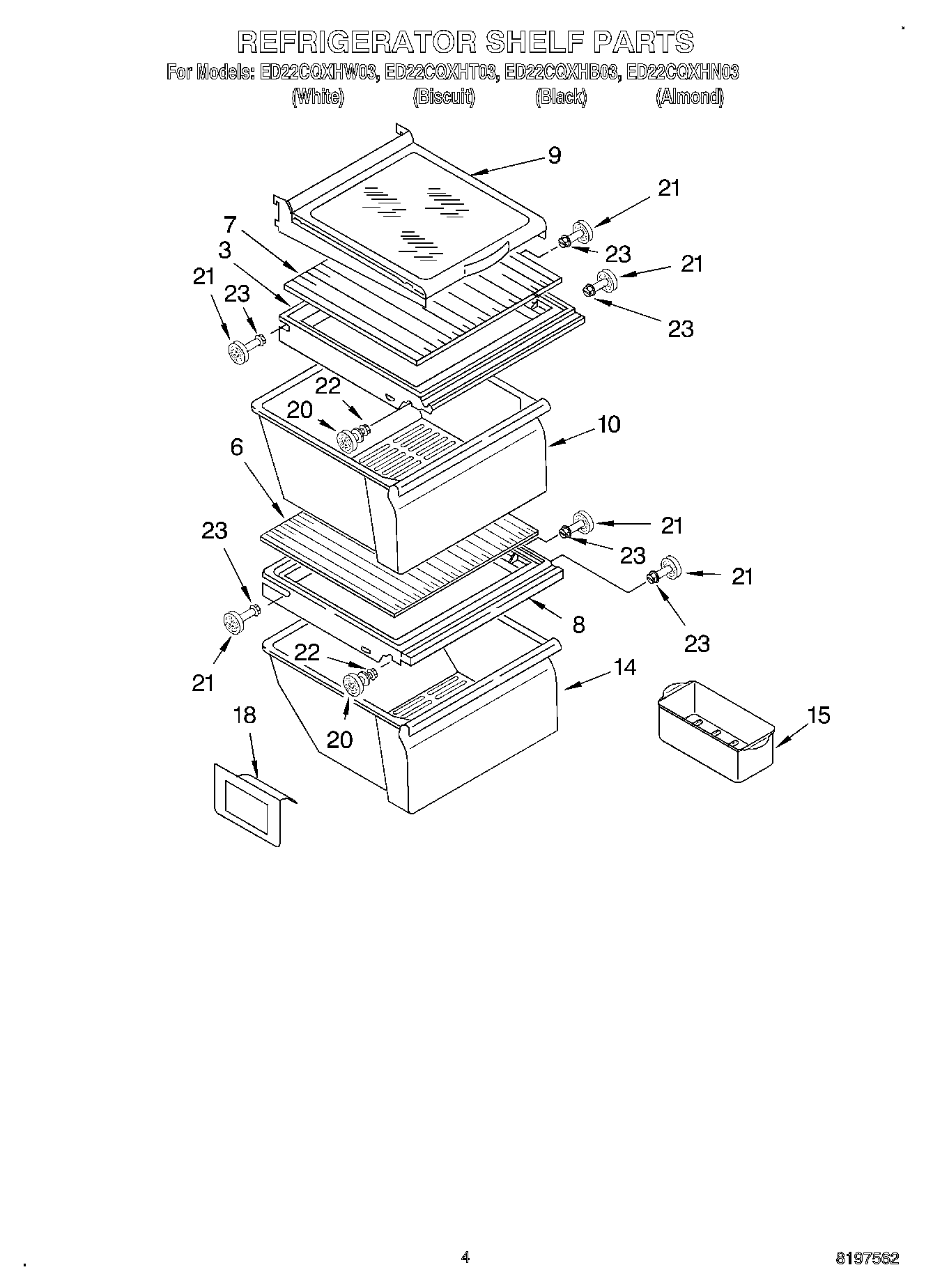

ED22CQXHT03 03 – REFRIGERATOR SHELF

ED22CQXHT03 03 – REFRIGERATOR SHELF

Written by

in

ED22CQXHT03 03 – REFRIGERATOR SHELF

Products

PositionProduct
3W10508993 Whirlpool Refrigerator Cover Pan
7W10864399 Whirlpool Glass Shelf
8Cover, Meat Pan
9Shelf Assembly, Cantilever (2)
10WP2188661 Whirlpool Crisper Pan
14WP2188664 Whirlpool Dishwasher Meat Crisper Pan
15W10136387A Whirlpool Refrigerator Egg Container
182179350 Whirlpool Refrigerator Deflector
20W11223328 Whirlpool Refrigerator Shelf Stud
21WP2196483 Whirlpool Refrigerator Shelf Stud
22WP3-24004-109 Whirlpool Refrigerator Screw
23WP3400806 Whirlpool Screw
