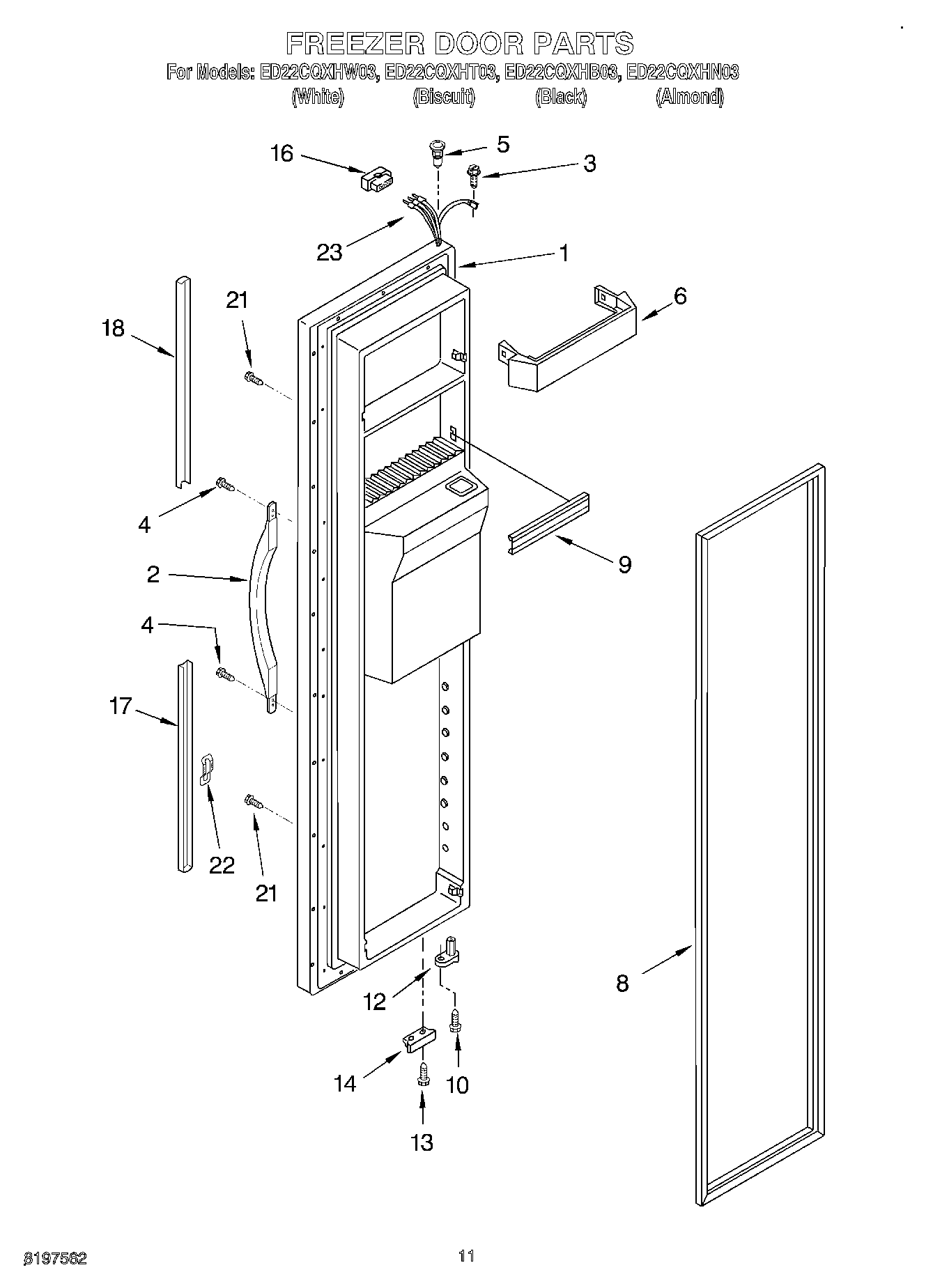

ED22CQXHT03 08 – FREEZER DOOR
Written by
in
ED22CQXHT03 08 – FREEZER DOOR
Products
Position
Product
1
Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Biscuit)
1
Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black)
1
Freezer Door (Includes No.6 And Dispenser Front Parts) (White)
1
Freezer Door (Includes No.6 And Dispenser Front Parts) (Almond)
2
Handle, Center (Biscuit)
2
Handle, Center (White)
2
Handle, Center (Almond)
2
WP2186649B Whirlpool Refrigerator Handle
3
WP489128 Whirlpool Refrigerator Screw
4
WP489491 Whirlpool Refrigerator Screw
5
WP2182181 Whirlpool Refrigerator Thimble
6
WP2156021 Whirlpool Refrigerator Door Trim
8
2159072 Whirlpool Refrigerator FIP Gasket
8
2159080 Whirlpool Refrigerator Door Gasket
9
WPW10307490 Whirlpool Door Trim Assembly
10
WP3400012 Whirlpool Refrigerator Screw
12
WP2182179 Whirlpool Cam Closer
13
WP489483 Whirlpool Screw
14
Bracket, Door Stop (Chrome)
16
WP2154473 Whirlpool Refrigerator Connector
17
Extension, Bottom (Almond)
17
Extension, Bottom (Biscuit)
17
Extension, Bottom (White)
17
WP2194969B Whirlpool Refrigerator Handle Trim
18
WP2194971B Whirlpool Refrigerator Handle Trim
18
Extension, Top (Biscuit)
18
Extension, Top (White)
18
Extension, Top (Almond)
21
WP3400852 Whirlpool Refrigerator Screw
22
WP2195327 Whirlpool Refrigerator Clip
23
Wire Harness
←
