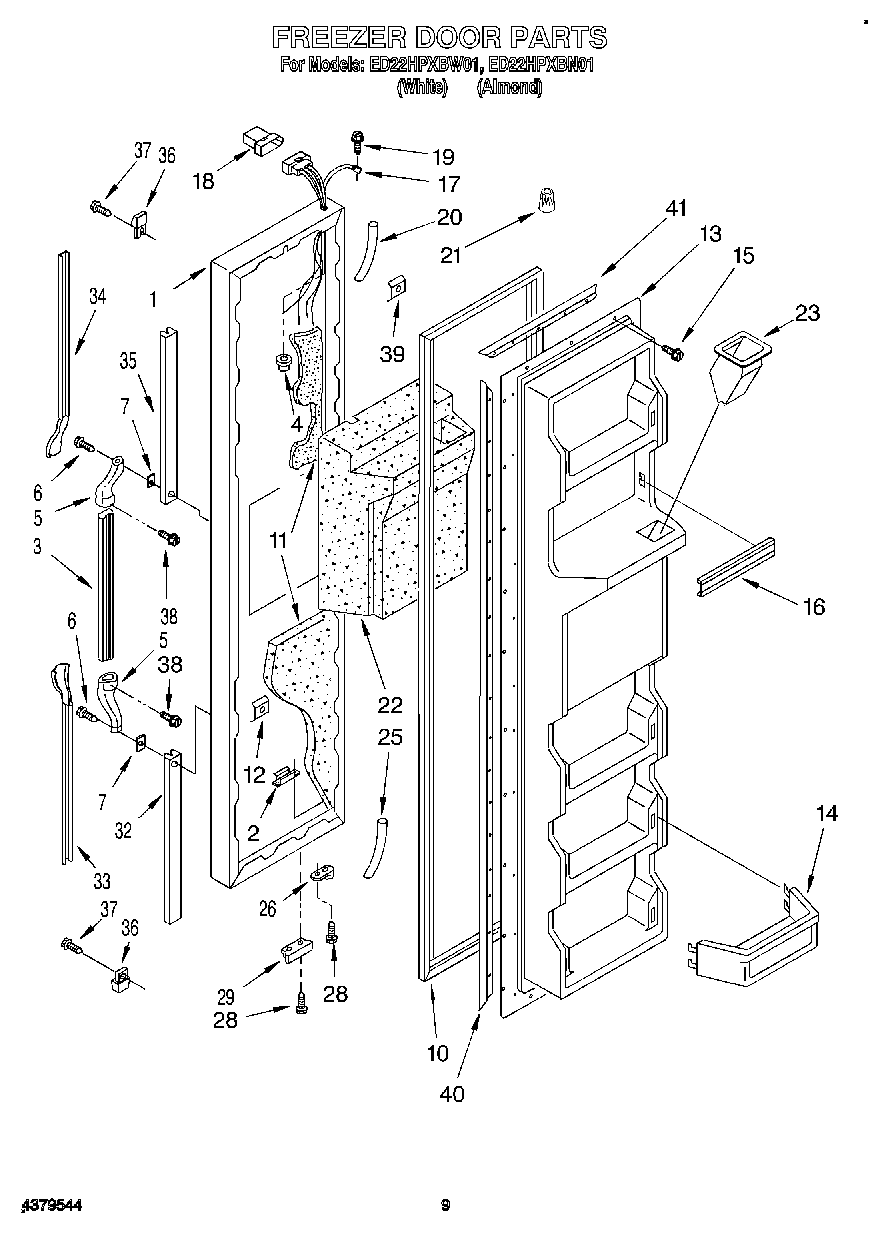

ED22HPXBN01 07 – FREEZER DOOR

ED22HPXBN01 07 – FREEZER DOOR

Written by

in

ED22HPXBN01 07 – FREEZER DOOR

Products

PositionProduct
1Freezer, Door Panel (Almond (Also Order Item 11))
1Freezer, Door Panel (White)
2Tap, Plate
3Handle, Center
4Seal, Hinge Pin
5End Cap, Center Handle
7Shim
102188405A Whirlpool Refrigerator Door Gasket
11WPL 876029
12Screw Anchor (2)
13Panel, Interior Door
14Trim, Door Shelf (4)
15WP489069 Whirlpool Compactor Screw
16Trim, Door Shelf
17Harness, Door (Includes Item 18)
18Connector, Plug
19WP488234 Whirlpool Air Conditioner Screw
20Tube, Door Wiring
21Wire Connector
22Insulation, Dispenser
23Chute, Ice
25Tube, Door Wiring
264318165 Whirlpool Refrigerator Door Closure Cam Kit
28WP999367 Whirlpool Refrigerator Screw
29Bracket, Door Stop (Black)
32Retainer, Insert (Bottom)
33Insert, Handle (White)
33Insert, Handle (Almond)
34Insert, Handle (Almond)
34Insert, Handle
35Retainer, Insert
36End Cap (2)
37Screw
38Screw
39WP939101 Whirlpool Refrigerator Plate
40Retainer, Gasket
41Retainer, Gasket
