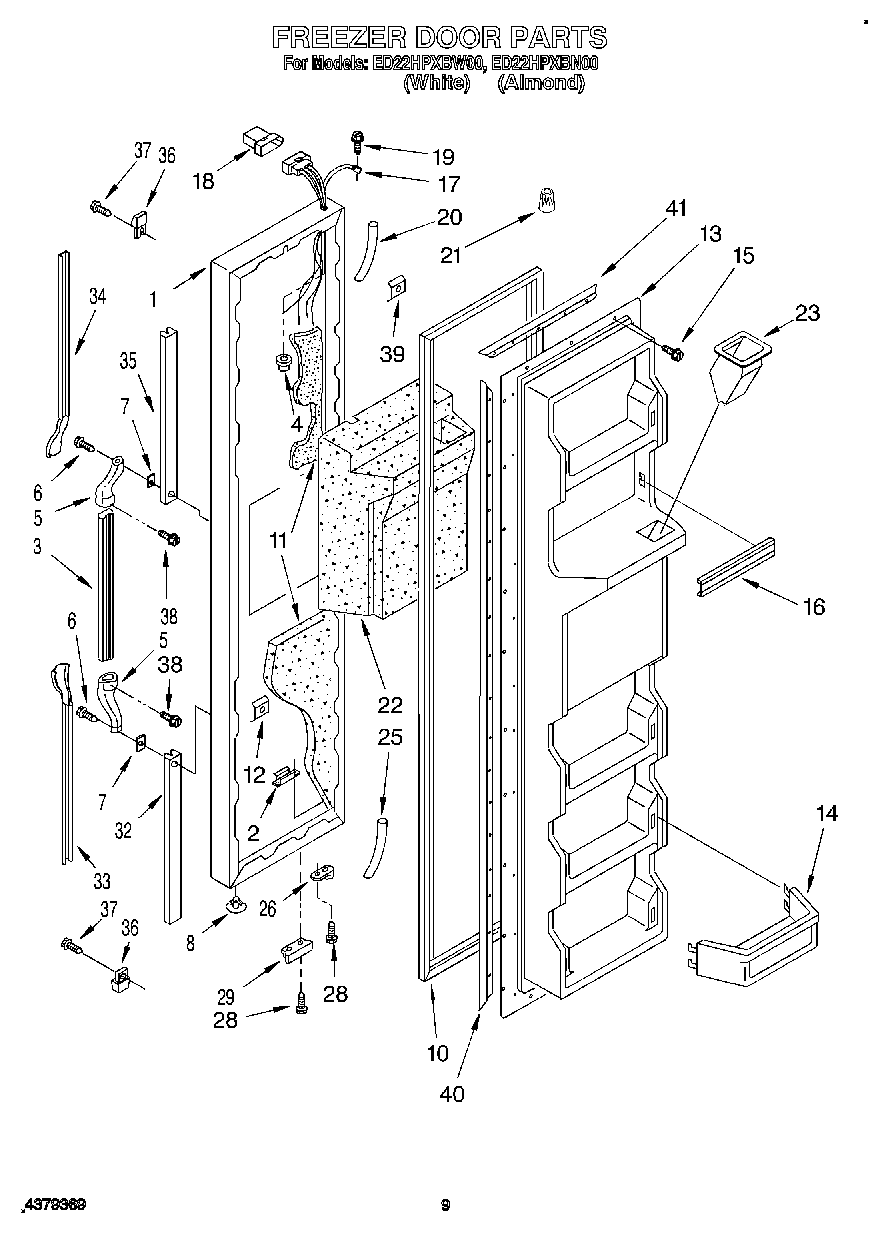

ED22HPXBW00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (Almond (Also Order Item 11))
1	Freezer, Door Panel (White)
2	Tap, Plate
3	Handle, Center
4	Seal, Hinge Pin
5	End Cap, Center Handle
7	Shim
8	Hole Plug (6) (Almond)
10	2188405A Whirlpool Refrigerator Door Gasket
11	WPL 876029
12	Screw Anchor (2)
13	Panel, Interior Door
14	Trim, Door Shelf (4)
15	WP489069 Whirlpool Compactor Screw
16	Trim, Door Shelf
17	Harness, Door (Includes Item 18)
18	Connector, Plug
19	WP488234 Whirlpool Air Conditioner Screw
20	Tube, Door Wiring
21	Wire Connector
22	Insulation, Dispenser
23	Chute, Ice
25	Tube, Door Wiring
26	4318165 Whirlpool Refrigerator Door Closure Cam Kit
28	WP999367 Whirlpool Refrigerator Screw
29	Bracket, Door Stop (Black)
32	Retainer, Insert (Bottom)
33	Insert, Handle (Almond)
33	Insert, Handle (White)
34	Insert, Handle (Almond)
34	Insert, Handle
35	Retainer, Insert
36	End Cap (2)
37	Screw
38	Screw
39	WP939101 Whirlpool Refrigerator Plate
40	Retainer, Gasket
41	Retainer, Gasket
