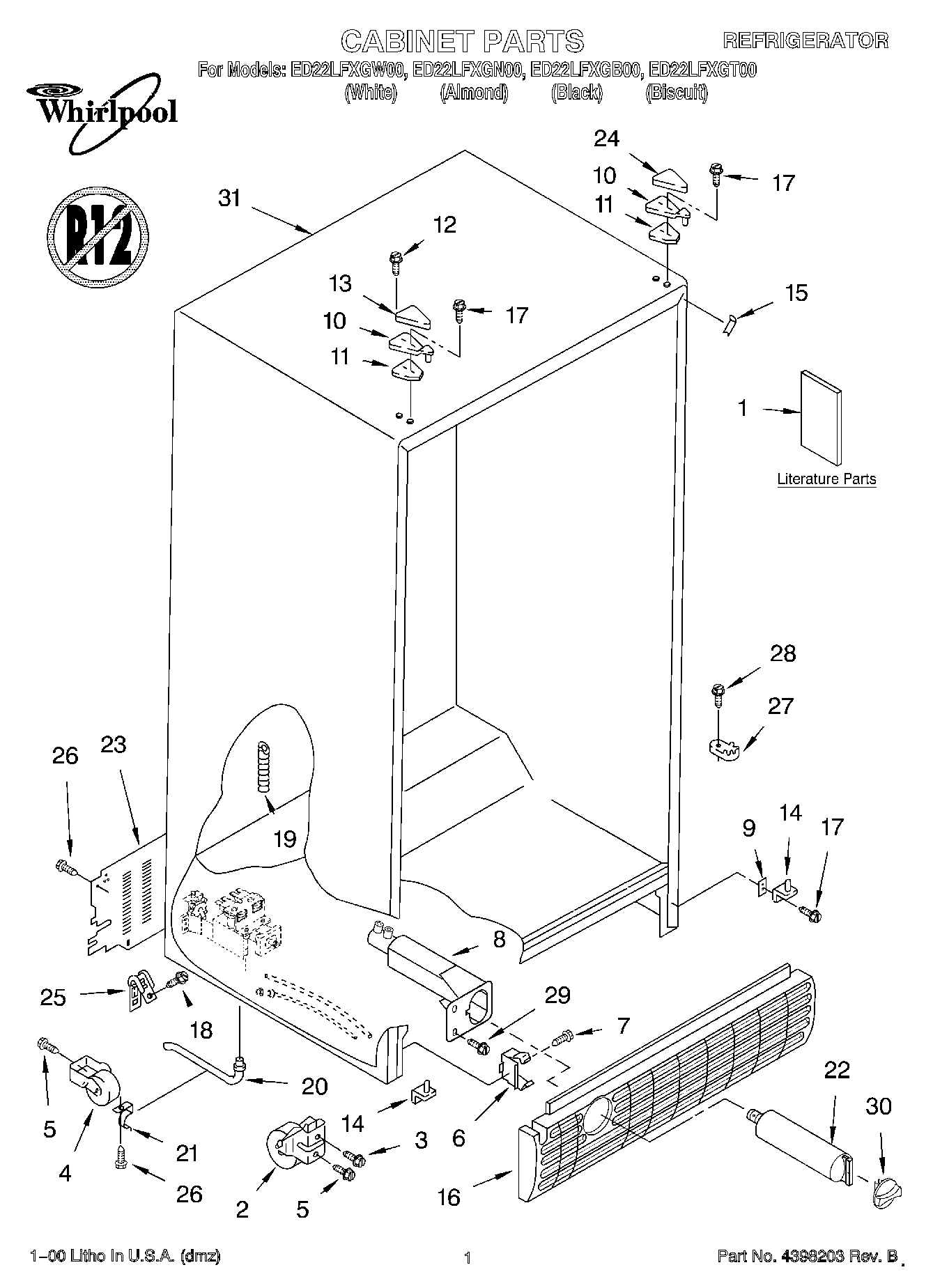

ED22LFXGB00 01 – CABINET, LITERATURE

Products

PositionProduct
1Energy Label
1LITERATURE PARTS (Service & Wiring Sheet)
1LITERATURE PARTS (Use & Care Guide)
1Modular Icemaker Service Sheet
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2186443 Whirlpool Water Filter Housing
9WP2181911 Whirlpool Refrigerator Shim
10WP2196046 Whirlpool Refrigerator Door Hinge
11Shim, Hinge Top
12Screw
13WP1129262 Whirlpool Refrigerator Cover
148201707 Whirlpool Door Hinge
15Filler, Wrapper (Biscuit)
15Filler, Wrapper (White)
15Filler, Wrapper (Almond)
15Filler, Wrapper (Black)
16W10802713 Whirlpool Refrigerator Grille
17WP489497 Whirlpool Screw
18WP489464 Whirlpool Refrigerator Screw
19W11566763 Whirlpool Fitting
20WP1108438 Whirlpool Refrigerator Extension
21WP1108439 Whirlpool Refrigerator Clip
22EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
23WP2188756 Whirlpool Refrigerator Unit Cover
241119787 Whirlpool Refrigerator Hinge Cover
24Hinge Cover (Black)
25549193 Whirlpool Refrigerator Power Clamp
27WPW10329686 Whirlpool Door Cam Black
28WP489483 Whirlpool Screw
29WP489500 Whirlpool Refrigerator Screw
30WP2186494T Whirlpool Water Filter Cap
30WP2186494B Whirlpool Refrigerator Filter Cap
30Cap, Water Filter (Almond)
30WP2186494W Whirlpool Water Filter Cap
