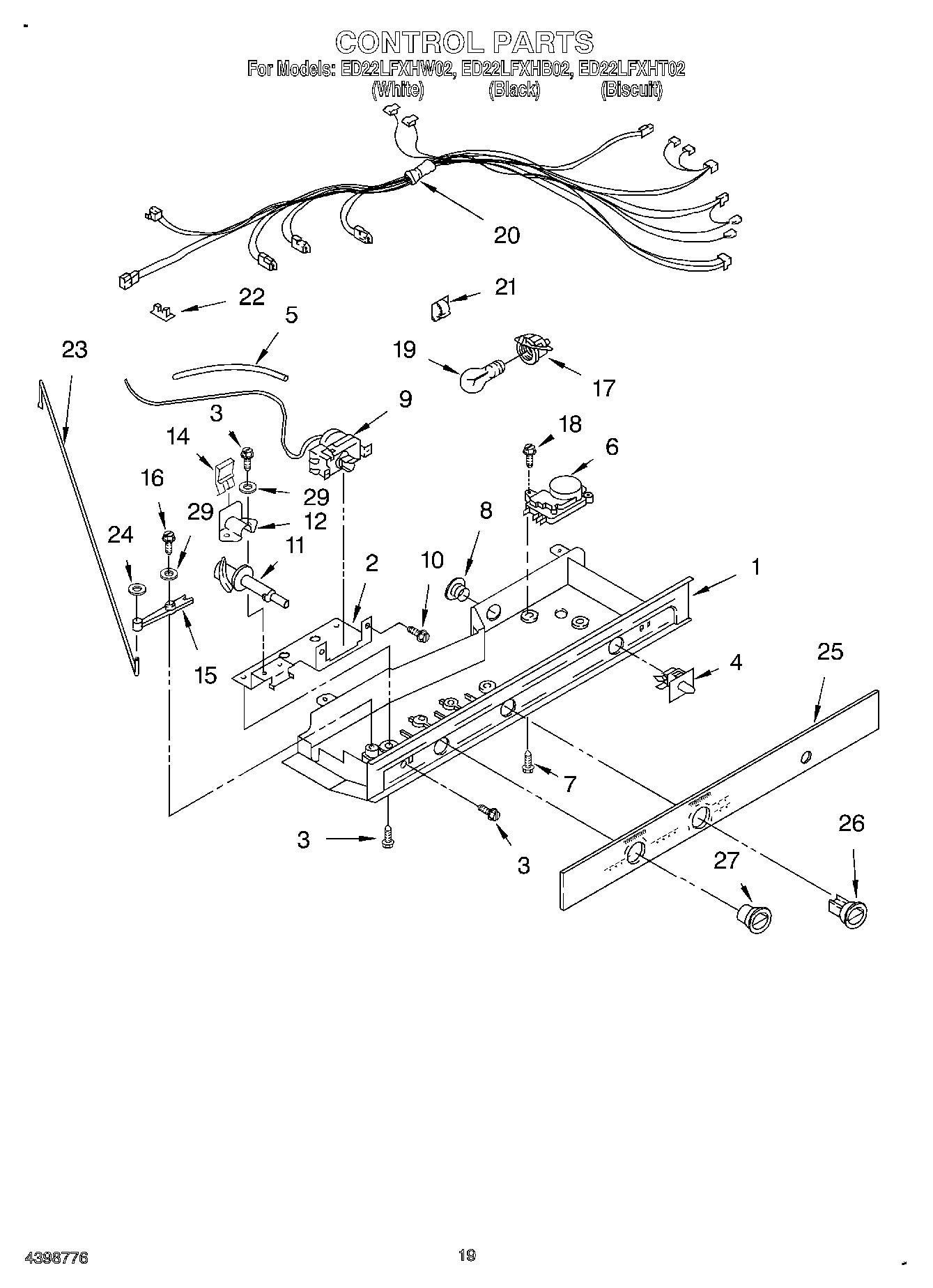

ED22LFXHB02 12 – CONTROL, OPTIONAL

ED22LFXHB02 12 – CONTROL, OPTIONAL

Written by

in

ED22LFXHB02 12 – CONTROL, OPTIONAL

Products

PositionProduct
1Control Box
2Mounting Bracket
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2196003 Whirlpool Refrigerator Bar Riser
6W10822278 Whirlpool Defrost Timer
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
10WP965173 Whirlpool Dishwasher Screw
11WP2182195 Whirlpool Refrigerator Cam
121110560 Whirlpool Refrigerator Bearing
14WP2196062 Whirlpool Refrigerator Clip
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
18489392 Whirlpool Refrigerator Screw
19RANGE ONLY 40W 120V APPL BULB
202311636 Whirlpool Refrigerator Wire Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon, Control Box
262182111 Whirlpool Refrigerator Thermal Knob
27Knob, Air Control
29799344 Whirlpool Refrigerator Paint
29511873 Whirlpool Refrigerator Paint
29350956 Whirlpool Spray Assembly
29489203 Whirlpool Refrigerator Washer
29350942 Whirlpool Spray Paint
29350930 Whirlpool White Spray Paint
29212643 Whirlpool Refrigerator Permagum Sealer
2972017 Whirlpool Appliance Touch-Up Paint White
29Almond (Uncut)
29WP72107 Whirlpool Touchup
29WP505587 Whirlpool Refrigerator Sealer
29WP542638 Whirlpool Refrigerator Grease
29Torx Key
29WP503695 Whirlpool Refrigerator Sealer
29TAPE, VINYL (3/4 X 108“)
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
29Enamel, Black (1 Qt. Uncut)
29WPL 799833
29WPL 876029
29876370 Whirlpool Refrigerator Insulation
29833938 Whirlpool Refrigerator Terminal
29285006 Whirlpool Spray
2972032 Whirlpool Touch Up Paint Black
29606755 Whirlpool Refrigerator Bag
29WPW10312301 Whirlpool Refrigerator Ice Container
