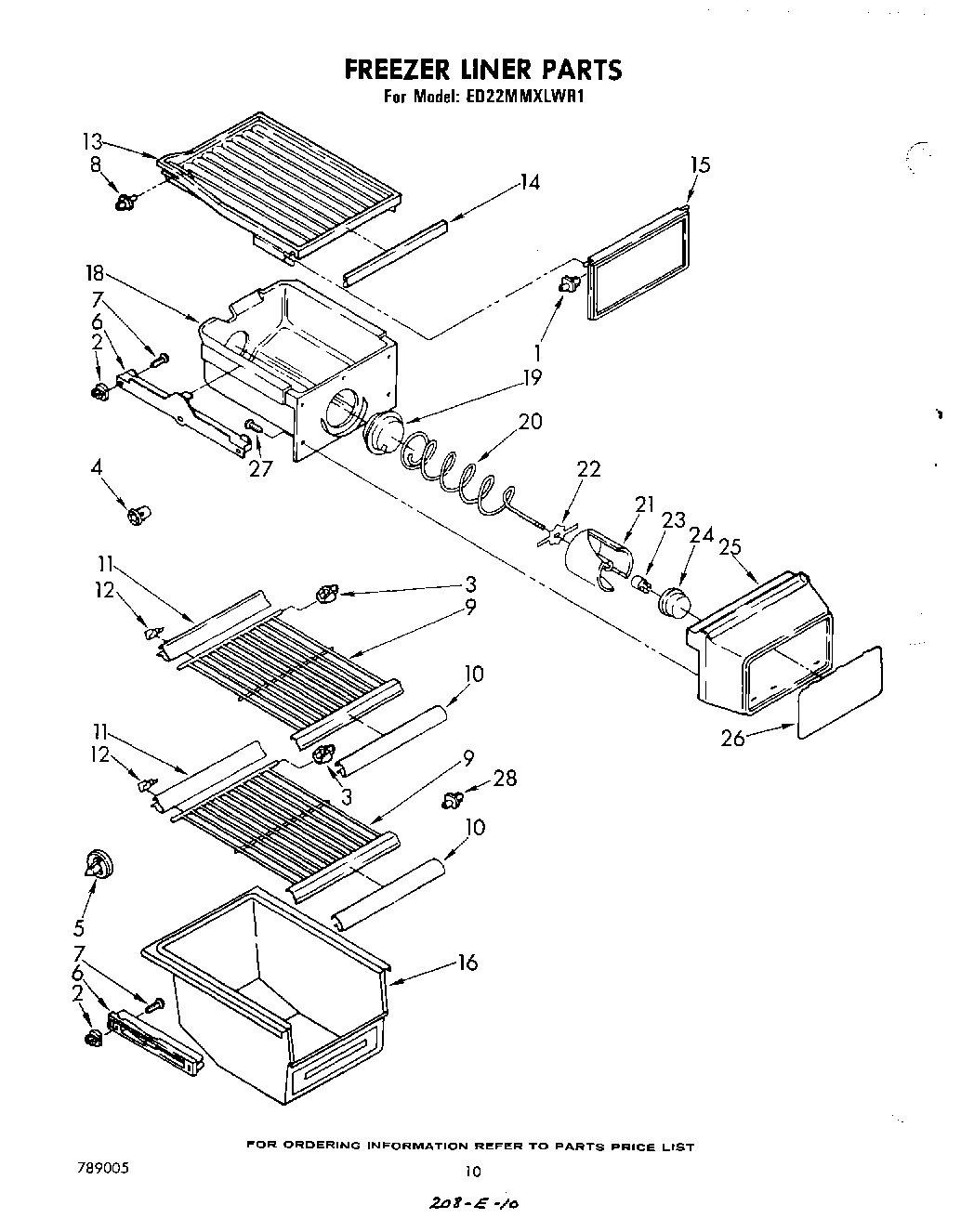

ED22MMXLWR1 06 – FREEZER LINERadmin2025-04-26T11:35:50+00:00ED22MMXLWR1 06 – FREEZER LINER
Products
| Position | Product |
|---|
| 1 | Shelf, Stud |
| 2 | Grommet |
| 3 | Shelf Support |
| 4 | Grommet |
| 5 | Retainer Stud |
| 6 | Slide, Freezer Bin |
| 7 | Screw, 8 x 1 |
| 8 | Stud, Shelf (2) |
| 9 | Shelf, Freezer |
| 10 | Shelf Trim, Ice Pan |
| 11 | Shelf, Reflector |
| 12 | Clip, Reflector |
| 13 | Solid Shelf |
| 14 | Trim, Shelf |
| 15 | Front, Ice Compartment |
| 16 | Bin, Freezer |
| 18 | Ice Container |
| 19 | W10749708 Whirlpool Refrigerator Coupling |
| 20 | Conveyor, Ice Container |
| 21 | Drum, Ice Dispenser |
| 22 | Drum, Drive Bar |
| 23 | Collar, Conveyor |
| 24 | Bearing, Conveyor |
| 25 | Front, Cover Container |
| 26 | Overlay, Front Cover |
| 27 | WP488787 Whirlpool Refrigerator Screw |
| 28 | Stud, Shelf |
