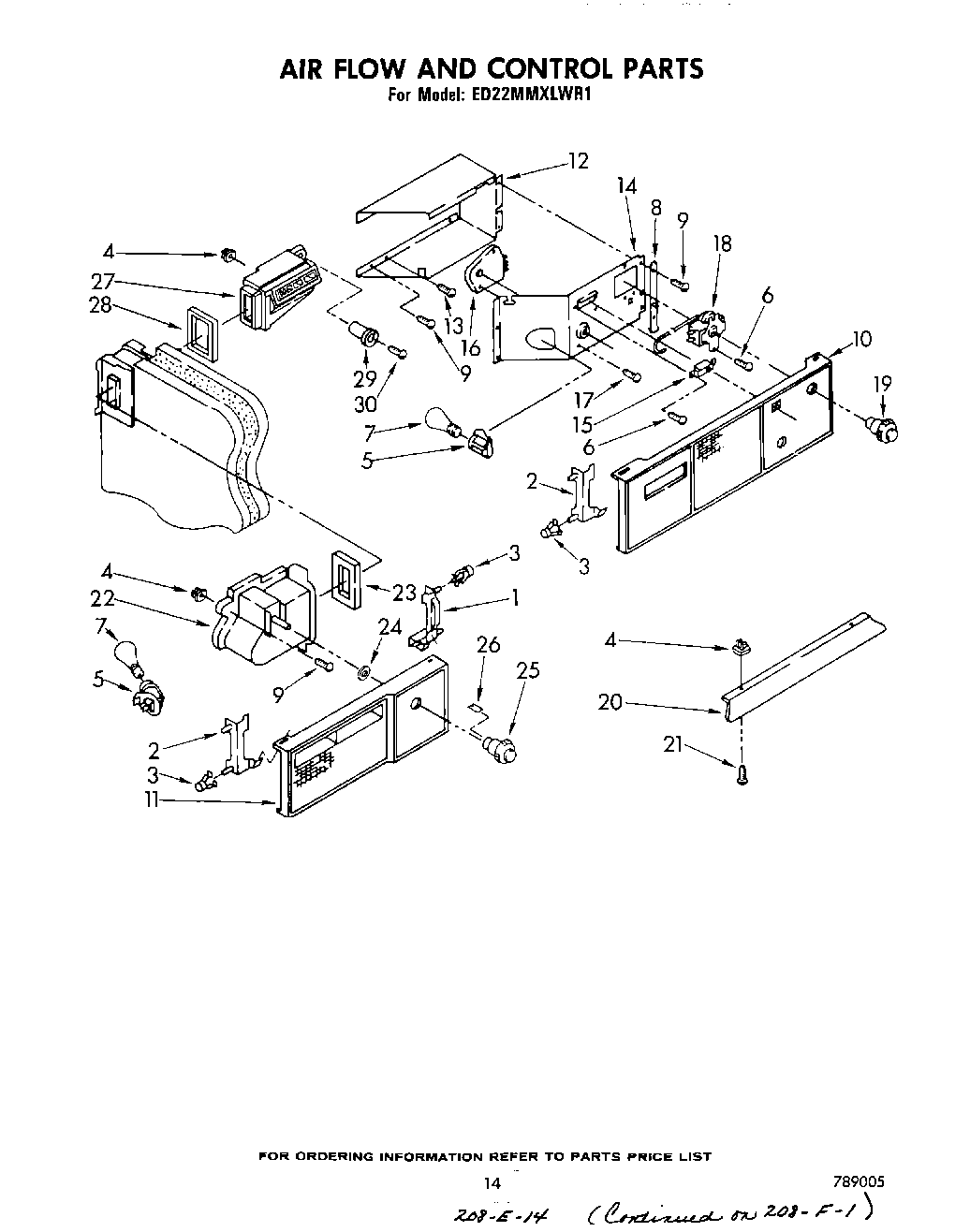

ED22MMXLWR1 08 – AIR FLOW AND CONTROL

ED22MMXLWR1 08 – AIR FLOW AND CONTROL

Written by

in

ED22MMXLWR1 08 – AIR FLOW AND CONTROL

Products

PositionProduct
1Support, Light Lens (R.S.)
2Support, Light Lens (L.S.)
3Clip, Tubular
4Grommet
54387478 Whirlpool Refrigerator Light Socket
6WP489128 Whirlpool Refrigerator Screw
7RANGE ONLY 40W 120V APPL BULB
8Support, Light Lens
9W11624204 Whirlpool Screw
10Light Lens
11Light Lens, Freezer
12Box, Control
13Screw, 8-32 x 3/8
14Control Box Front
15WP938213 Whirlpool Refrigerator Power Switch
16Defrost Timer
17WP3388228 Whirlpool Screw
18WP819470 Whirlpool Refrigerator Thermostat
19Knob, Temperature Control
20Baffle, Liner Top
21WP489069 Whirlpool Compactor Screw
22Air Scoop Assembly
23Gasket, Air Scoop
24Retainer, Damper
25Control Knob
26Knob, Retainer
27Air Diffuser
28Gasket, Air Diffuser
29836667 Whirlpool Refrigerator Spacer
30Screw, 8 x 1-1/4 (3)
