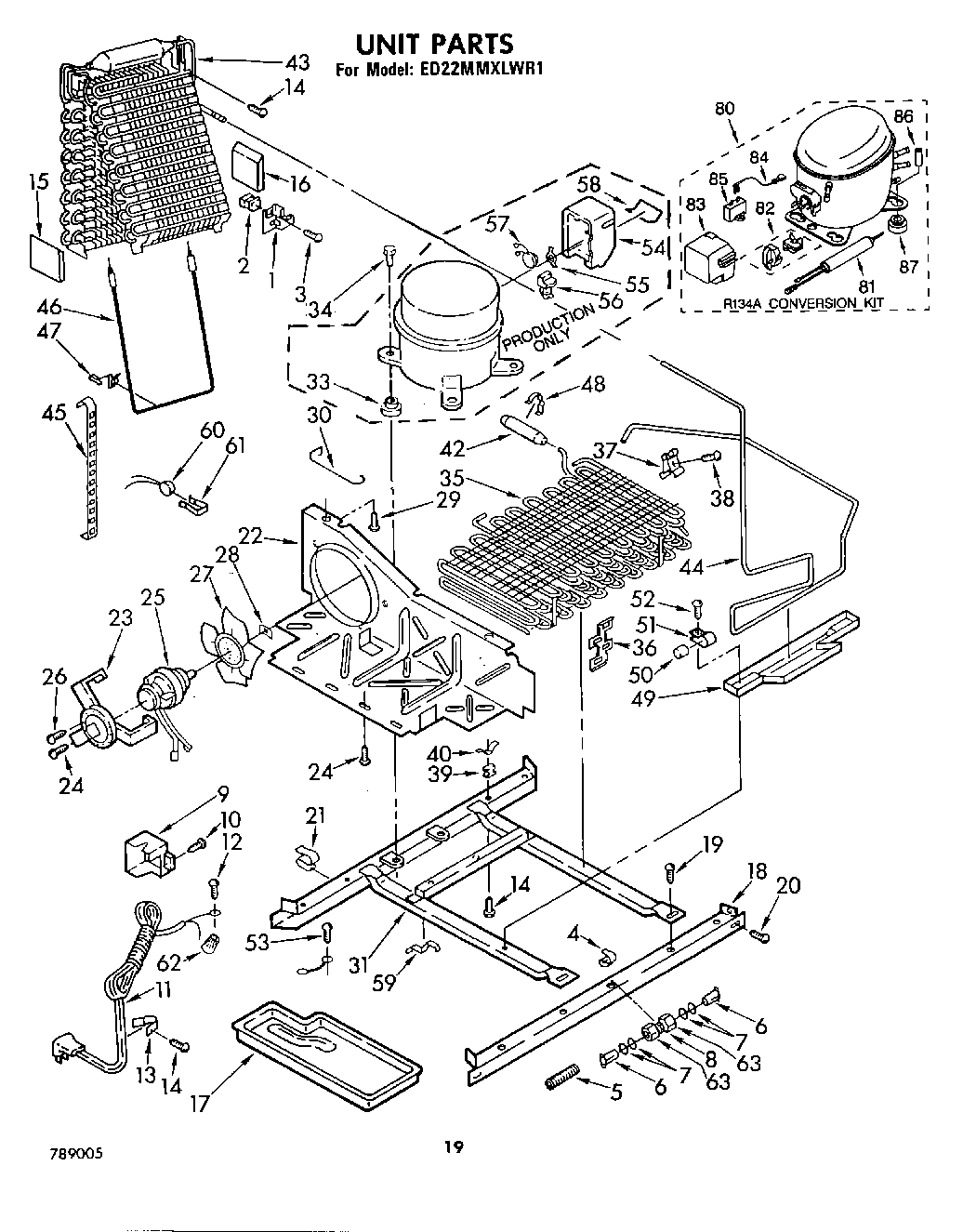

ED22MMXLWR1 11 – UNIT

ED22MMXLWR1 11 – UNIT

Written by

in

ED22MMXLWR1 11 – UNIT

Products

Position	Product
1	Support, Evaporator
2	Grommet, Screw
3	SCREW
4	Clip, Tube (3)
5	Spring-Tube
6	4387491 Whirlpool Refrigerator Insert
7	“O“ Ring Seal (4)
8	WP4211117 Whirlpool Refrigerator Connector
9	Box, Junction
10	WP488729 Whirlpool Refrigerator Door Screw
11	Cord, Service
12	Screw, 8-32 x 3/8
13	549193 Whirlpool Refrigerator Power Clamp
14	W11624204 Whirlpool Screw
15	Air Baffle, Evaporator
16	Baffle, Air
17	Tray, Evaporator
18	Rail, Front
19	Screw, 1/4-28 x 1/2 (2)
20	489340 Whirlpool Refrigerator Screw
20	Screw (Repair)
21	Clip, Wire (2)
22	Baffle, Air
23	Bracket, Motor
24	Screw, 8 x 3/8
25	833697 Whirlpool Condenser Fan Motor
26	Screw, 8-36 x 3/8 (3)
27	Fan, Blade
28	WP486692 Whirlpool Refrigerator Nut
29	Screw, 8-15 x 3/8
30	Guard, Fan
31	Frame
33	Grommet (4)
34	Screw, 1/4-28 x 1“ (4)
35	Condenser & Precooler
36	Spacer Condenser (4)
37	Clip, Tube (4)
38	WP488787 Whirlpool Refrigerator Screw
39	Grommet (4)
40	Clamp (4)
43	Evaporator
44	Exchanger, Heat
45	Heat Shield
46	WP549433 Whirlpool Refrigerator Heater
47	Heater, Clamp (4)
48	Clamp
49	Pan, Drip
50	Dampener (2)
51	Clamp Tube
52	WPW10141625 Whirlpool Refrigerator Screw Assembly
53	303776 Whirlpool Dishwasher Screw
54	WPL 549505
55	Spring, Overload
56	Relay
57	Overlo
58	Cover, Spring
59	Clip (2)
60	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
61	Clamp
62	Wire Connector
63	WP245183 Whirlpool Nut
80	Compressor (Includes Items 81, 82, 83, 84, 85, 86, & 87) Also order
80	876765 Whirlpool Primary Mounting Kit Refrigerator
81	W10843121 Whirlpool Refrigerator Tube
82	W11239930 Whirlpool Refrigerator Overload Relay
83	WP2162358 Whirlpool Refrigerator Terminal Cover
84	WP2172890 Whirlpool Refrigerator Wire
85	WP4387764 Whirlpool Run Capacitor
86	Sleeve (4) (Service Only)
87	978026 Whirlpool Refrigerator Primary Valve
87	978030 Whirlpool Refrigerator Valve
87	978027 Whirlpool Refrigerator Primary Valve
87	WP978025 Whirlpool Refrigerator Valve
87	VALVE, ACCESS (1/2“)
87	VALVE, ACCESS (5/8“)
87	WP4387558 Whirlpool Refrigerator Compressor Grommet
