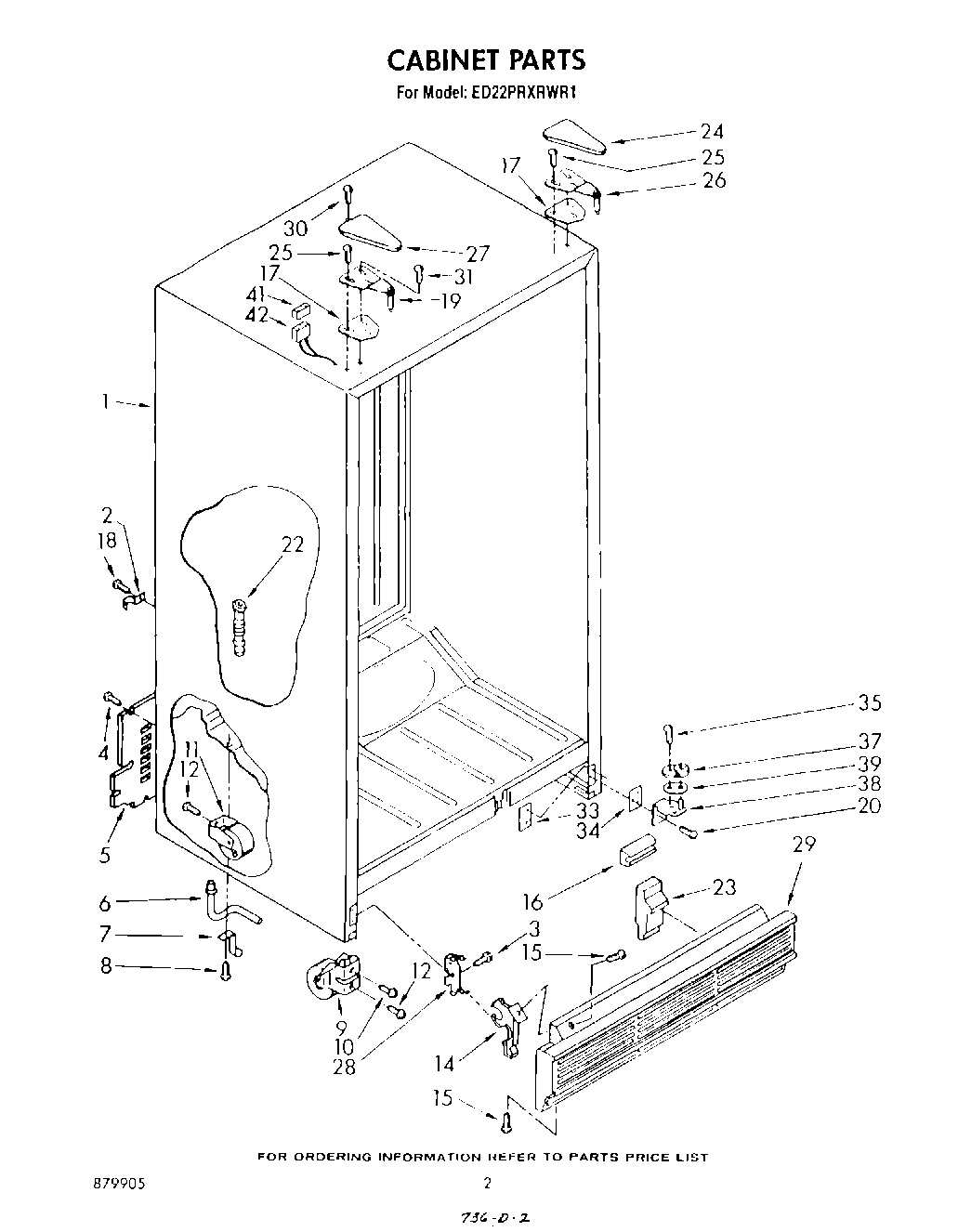

ED22PRXRWR1 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Clamp, Water Line (2)
3	W11624204 Whirlpool Screw
5	WPL 850457
6	Extension, Drain Fitting
7	Cup, Drain Extension
8	Screw, 8-15 x 3/8
9	Roller, Front
10	Screw, 5/16-24 x 1
11	WPW10250570 Whirlpool Refrigerator Cabinet Roller
12	Screw, 1/4-28 x 1/2 (2)
14	WP944224 Whirlpool Refrigerator Support
15	Screw, 8-22 x 5/16 (4)
16	Bumper, Grille
17	Shim, Hinge
18	WP489069 Whirlpool Compactor Screw
19	Hinge, Top Freezer
22	WPL 836068
23	WPL 836372
24	Hinge Cover (Golden Harvest)
24	Hinge Cover (Toast)
24	1119787 Whirlpool Refrigerator Hinge Cover
25	WP999367 Whirlpool Refrigerator Screw
25	Screw (Repair)
26	Hinge, Top
27	WP1129262 Whirlpool Refrigerator Cover
27	Hinge Cover (Toast)
27	Hinge Cover (Golden Harvest)
28	WPL 989068
29	Grille
30	Screw, 6-32 x 1/2
31	WP488234 Whirlpool Air Conditioner Screw
33	Tap Plate
34	Shim, Bottom Hinge
35	Screw (Repair)
35	WP486579 Whirlpool Air Conditioner Screw
37	WPW10329686 Whirlpool Door Cam Black
38	Hinge, Bottom R.H.
38	Hinge, Bottom (L.H.)
39	Shim, Door Closer
41	WPL 851648
42	WPL 482553
