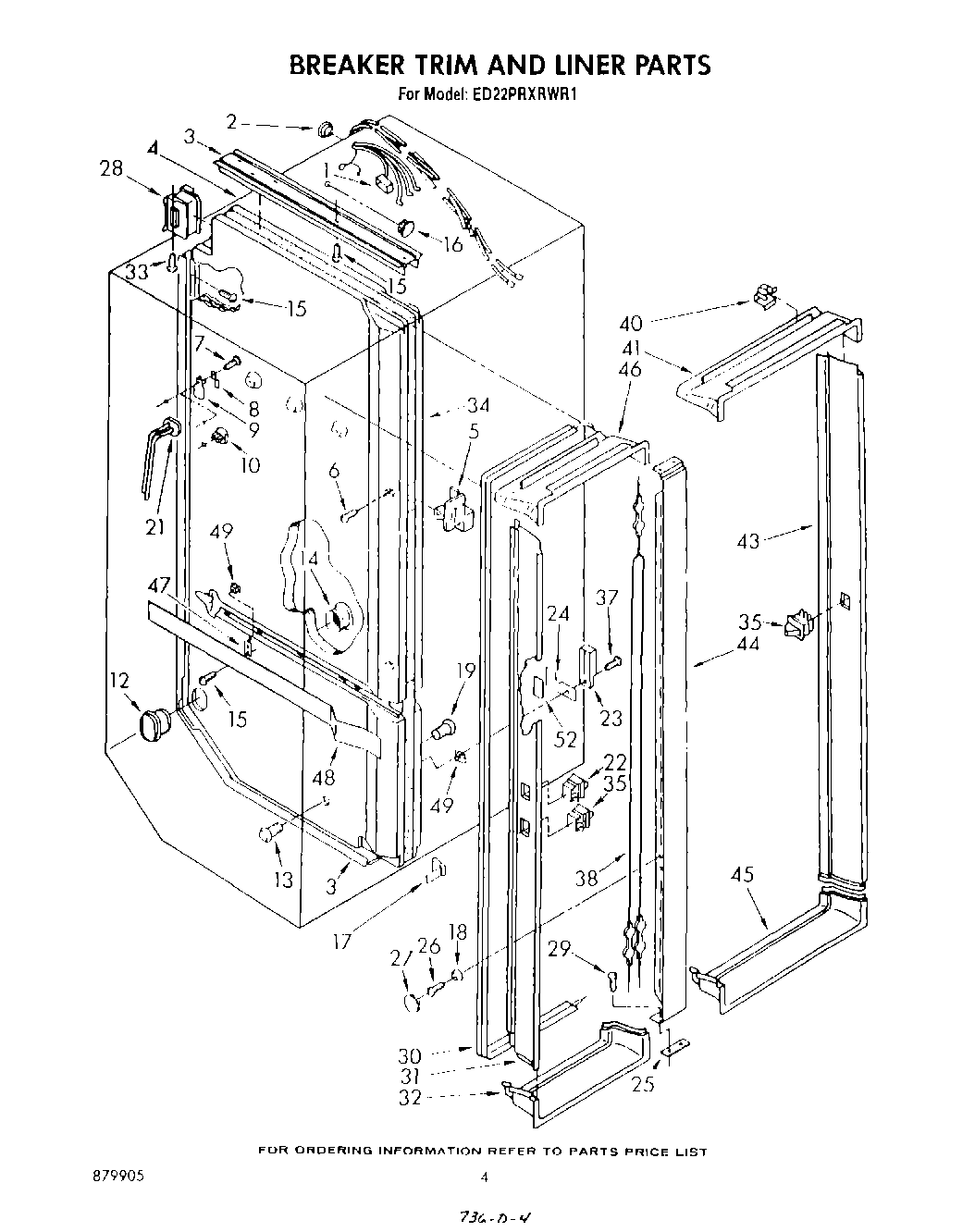

ED22PRXRWR1 03 – BREAKER TRIM AND LINER

Products

Position	Product
1	Liner Wiring (Defrost Timer)
2	Grommet, Wiring
3	Track Divider (Back & Bottom)
3	Track, Divider (Top)
4	Liner (Not A Serviceable Part)
5	Stabilizer, Mullion
6	WP488787 Whirlpool Refrigerator Screw
7	SCREW
8	Support Clip
9	Screw Grommet
10	Grommet
12	Insert, Air Return
13	Retainer, Hole Insert
14	Retainer, Insert
15	W11624204 Whirlpool Screw
16	Hole, Plug
17	WPL 935663
18	Spacer Screw, Stabilizer
19	Insert, Hole
21	Wiring, Ice Maker
22	WP4387911 Whirlpool Refrigerator Switch
23	Escutcheon, Meat Pan Control
24	Slide, Meat Pan Control
25	Spacer
26	Screw, 8 x 7/8
27	Hole Cover
28	Control Connector & Gasket Assembly
29	WP308685 Whirlpool Microwave Screw
29	WP489069 Whirlpool Compactor Screw
30	WPL 989660
31	Breaker Trim (L.S.)
32	WPL 848481
33	WP488163 Whirlpool Refrigerator Screw
34	Mullion Assembly
35	W11384469 Whirlpool Door Switch
37	Screw, 8-15 x 1/2 (4)
38	Heater, Mullion
40	Breaker, Clip
41	Breaker Trim, Top
43	Breaker, Trim R.S.
44	Center Rail Mullion (Almond)
44	Center Rail, Mullion (Toast)
44	Center Rail Mullion (White)
44	Center Rail Mullion (Golden Harvest)
45	WPL 848477
46	Breaker Trim, Top
47	Heat Exchanger, Clip
48	Cover, Heat Exchanger
49	Expansion Clip
52	Pad, Foam
