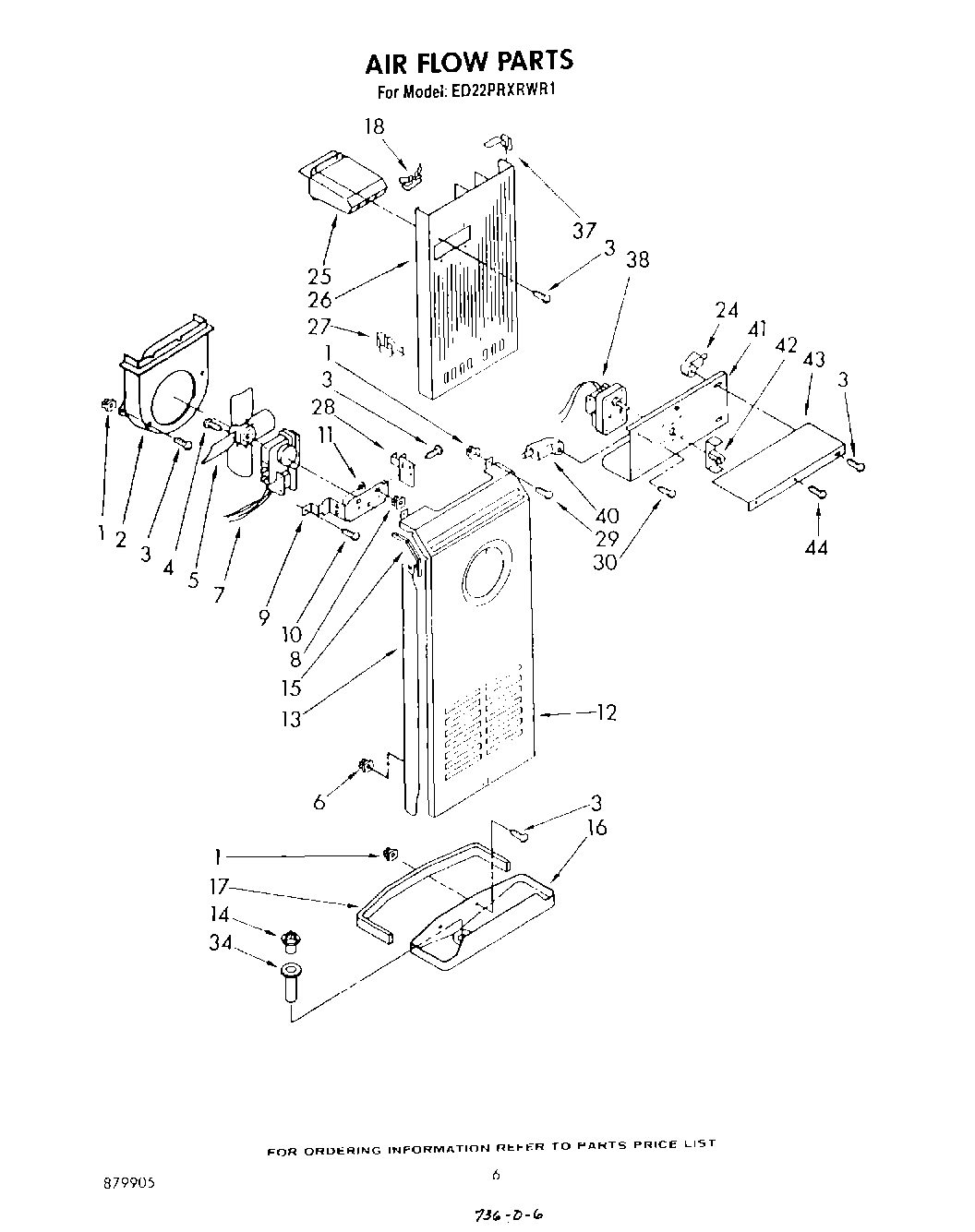

ED22PRXRWR1 04 – AIR FLOW

Products

Position	Product
1	Grommet
2	Scroll Fan
3	W11624204 Whirlpool Screw
4	WP487887 Whirlpool Refrigerator Screw
5	Blade, Fan
6	Screw, Grommet
7	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
8	Screw Grommet
9	Fan Bracket, Single
10	WP489069 Whirlpool Compactor Screw
11	Grommet (3)
12	Cover, Evaporator
13	Gasket, Evaporator
14	Cap, Drain
15	Gasket, Cover Top
16	Drain Pan
17	Gasket, Drain Pan
18	Clip, Air Deflector
24	Support, Stud
25	Air Deflector
26	Duct, Air
27	2215823 Whirlpool Refrigerator Clip
28	Fan, Bracket Double
29	WP488729 Whirlpool Refrigerator Door Screw
30	303776 Whirlpool Dishwasher Screw
34	Fitting, Drain Pan
37	Baffle, Air
38	Motor
40	Support, Stud
41	Bracket, Dispenser Motor
42	COUPLING AUGER MOTOR
43	Cover, Ice Dispenser
44	WP489128 Whirlpool Refrigerator Screw
