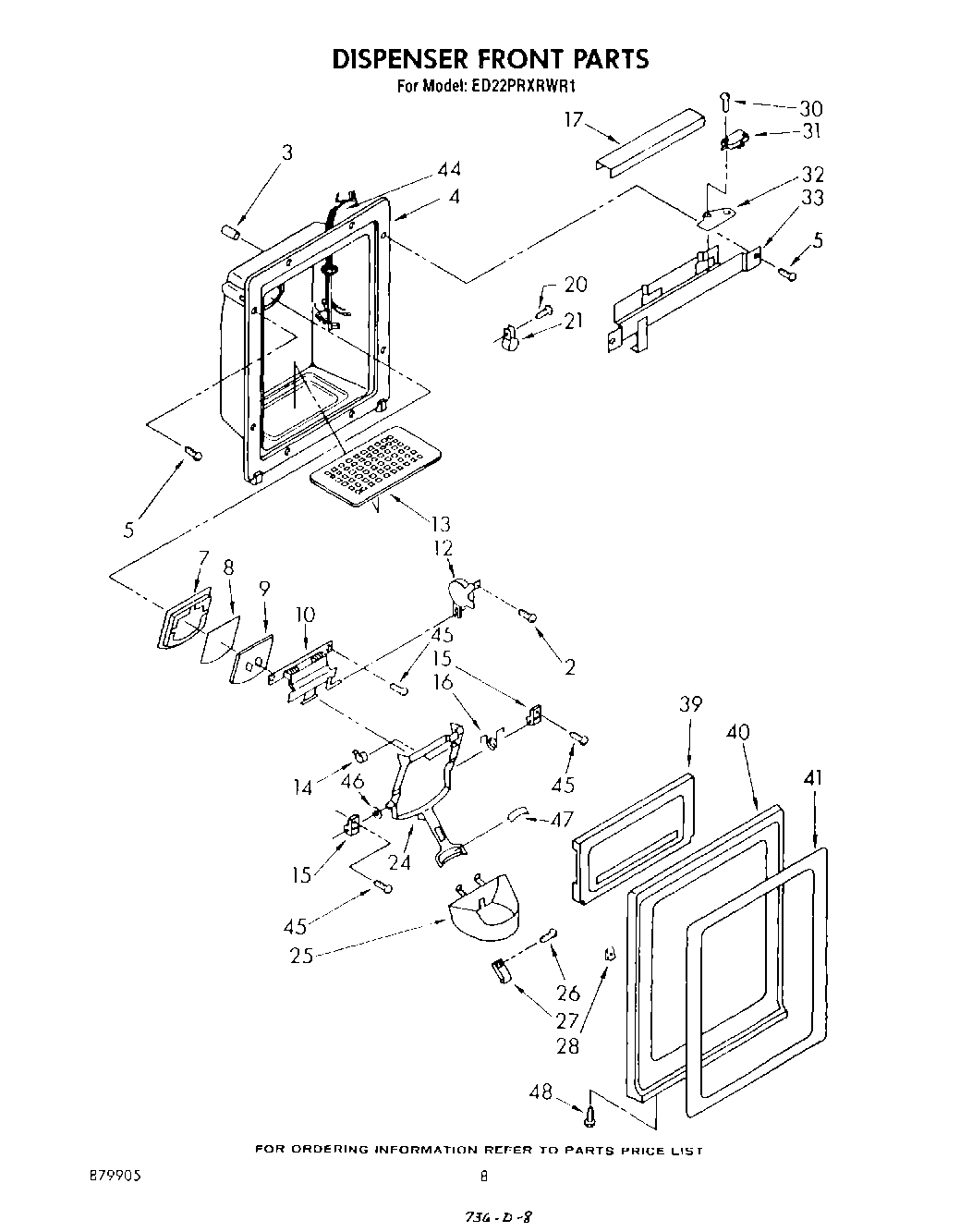

ED22PRXRWR1 05 – DISPENSER FRONT

Products

Position	Product
2	4387491 Whirlpool Refrigerator Insert
3	Screw, 8-18 x 3/4
4	Housing, Dispenser
5	W11693756 Whirlpool Screw Assembly
7	Gasket, Door
8	Shield, Ice Door
9	Door, Ice
10	Door Mechanism Assembly
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
20	WP965173 Whirlpool Dishwasher Screw
21	WP488878 Whirlpool Refrigerator Tube Clamp
24	Lever, Ice Dispenser
25	Guide, Ice
26	Screw
27	Glass Top
28	Speed Nut
30	Screw,
31	Switch
32	Insulator, Switch (2)
33	Bracket, Control
39	Cover, Housing
40	Front Cover, Housing
41	Insert, Front Housing
44	Wiring Assembly, Door
45	WP3400906 Whirlpool Refrigerator Screw
46	Washer
47	Pad, Lever
48	WP488729 Whirlpool Refrigerator Door Screw
