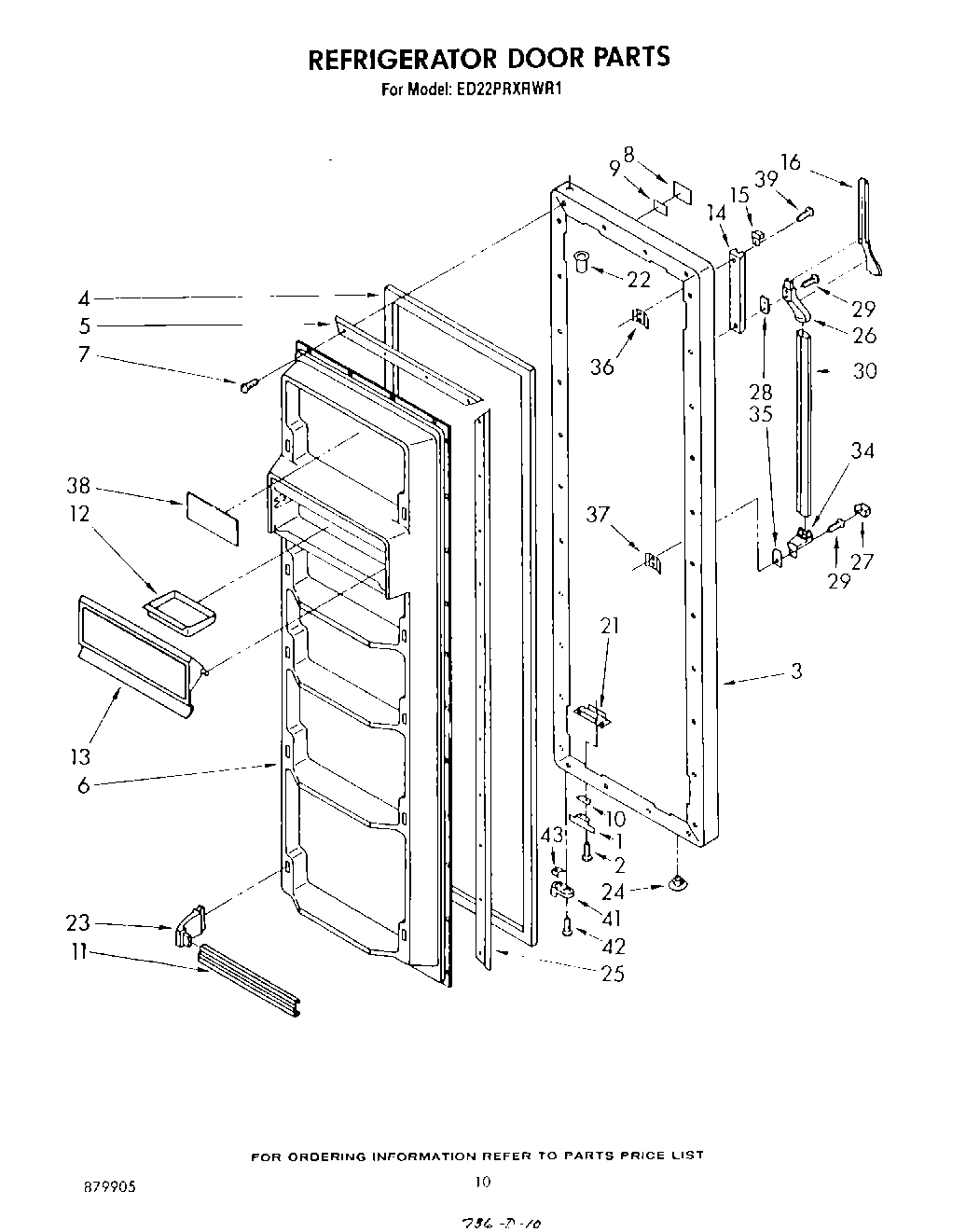

ED22PRXRWR1 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Bracket, Door Stop
2	Screw, 89 x 5/8
2	Screw (Repair)
3	Door, Refrigerator (Golden Harvest)
3	Door, Refrigerator (White)
3	Door, Refrigerator (Almond)
3	Door, Refrigerator (Toast)
4	2188404A Whirlpool Refrigerator Door Gasket
5	Retainer, Top & Bottom
6	Panel, Interior
7	SCREW
8	Escutcheon, Nameplate
9	Tape Strip
10	Shim
11	Trim, Door Shelf
13	Door, Compartment
14	Retainer Insert
15	End Cap
16	Insert Handle (White)
16	Insert Handle (Golden Harvest)
16	Insert Handle (Almond)
16	Insert Handle (Toast)
21	Tap Plate
22	Cap, Hinge Sleeve (2)
23	WP849996 Whirlpool Refrigerator Endcap Trim
24	Hole Plug (2)
25	Retainer Side, Gasket
26	Center End Cap, Handle
27	Cover, End Cap
28	Shim
30	Handle, Center
34	Handle End,
35	Shim, Handle
36	Screw Anchor (2)
37	WP939101 Whirlpool Refrigerator Plate
38	Label, Use & Care Guide
39	Screw
41	4318165 Whirlpool Refrigerator Door Closure Cam Kit
42	WP489069 Whirlpool Compactor Screw
43	WP1104787 Whirlpool Refrigerator Shim
