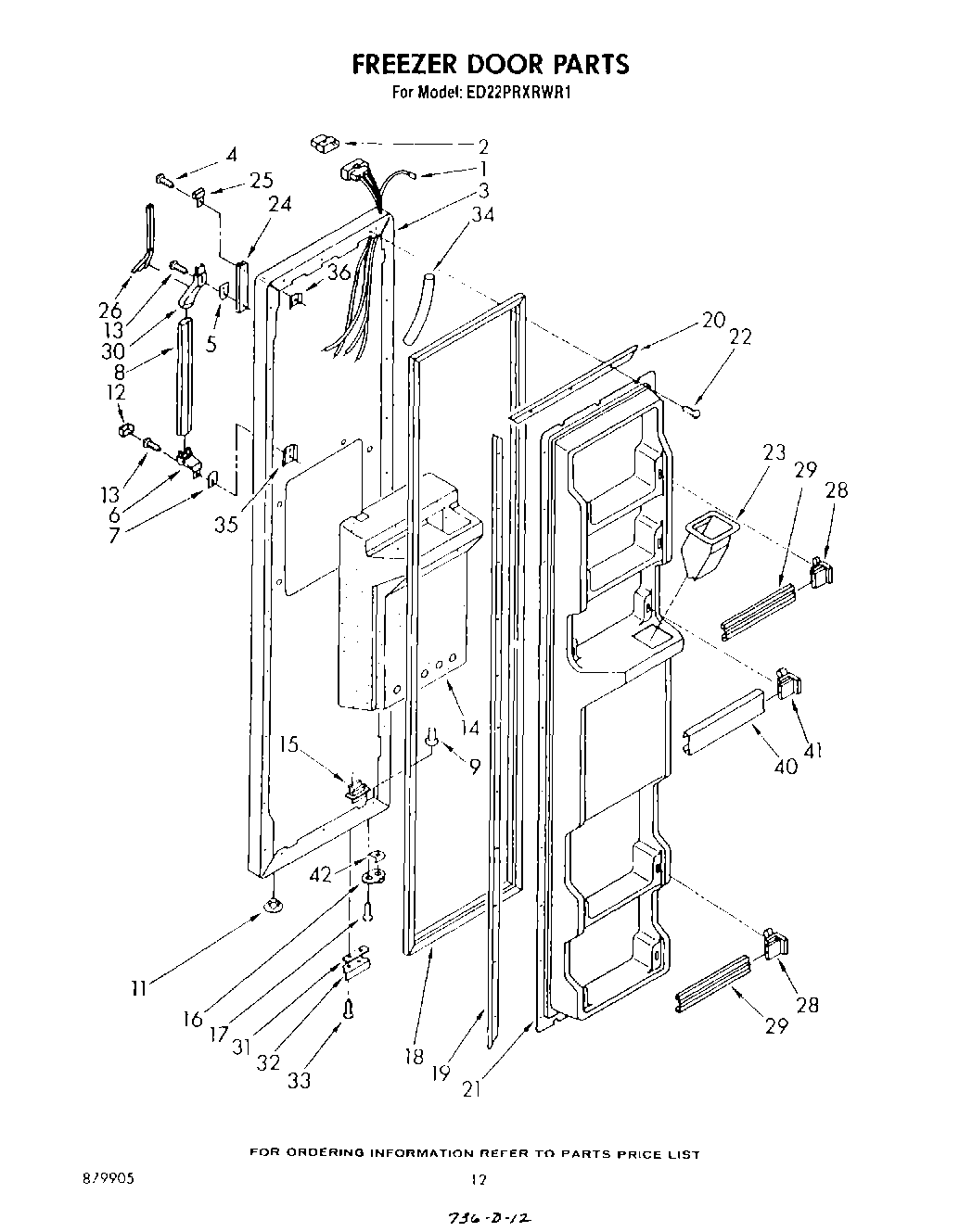

ED22PRXRWR1 07 – FREEZER DOOR

Products

Position	Product
1	Harness, Door (Includes Illus. 2)
2	Connector, Plug
3	Door, Freezer (Golden Harvest)
3	Door, Freezer (Toast)
3	Door, Freezer (White)
3	Door, Freezer (Almond)
4	Screw
5	Shim
7	Shim, Handle
8	Handle, Center
9	Cap, Hinge Sleeve (2)
11	Hole Plug (2)
12	Cover, End Cap
14	Insulation, Dispenser
15	Tap Plate
16	4318165 Whirlpool Refrigerator Door Closure Cam Kit
17	WP489069 Whirlpool Compactor Screw
18	2188405A Whirlpool Refrigerator Door Gasket
19	Retainer Side, Gasket
20	Retainer, Top & Bottom Gasket
21	Panel, Interior
22	SCREW
23	Chute, Ice
24	Retainer Insert
25	End Cap
26	Insert Handle (Toast)
26	Insert Handle (Golden Harvest)
26	Insert Handle (White)
26	Insert Handle (Almond)
28	WP839904 Whirlpool Refrigerator Endcap Trim
29	Shelf, Trim (4)
30	Center End Cap, Handle
31	Shim
32	Bracket, Door Stop
33	Screw, 89 x 5/8
33	Screw (Repair)
34	Tube, Door Wiring
35	WP939101 Whirlpool Refrigerator Plate
36	Screw Anchor (2)
40	Door, Shelf Trim
41	WP839975 Whirlpool Refrigerator Endcap Trim
42	WP1104787 Whirlpool Refrigerator Shim
