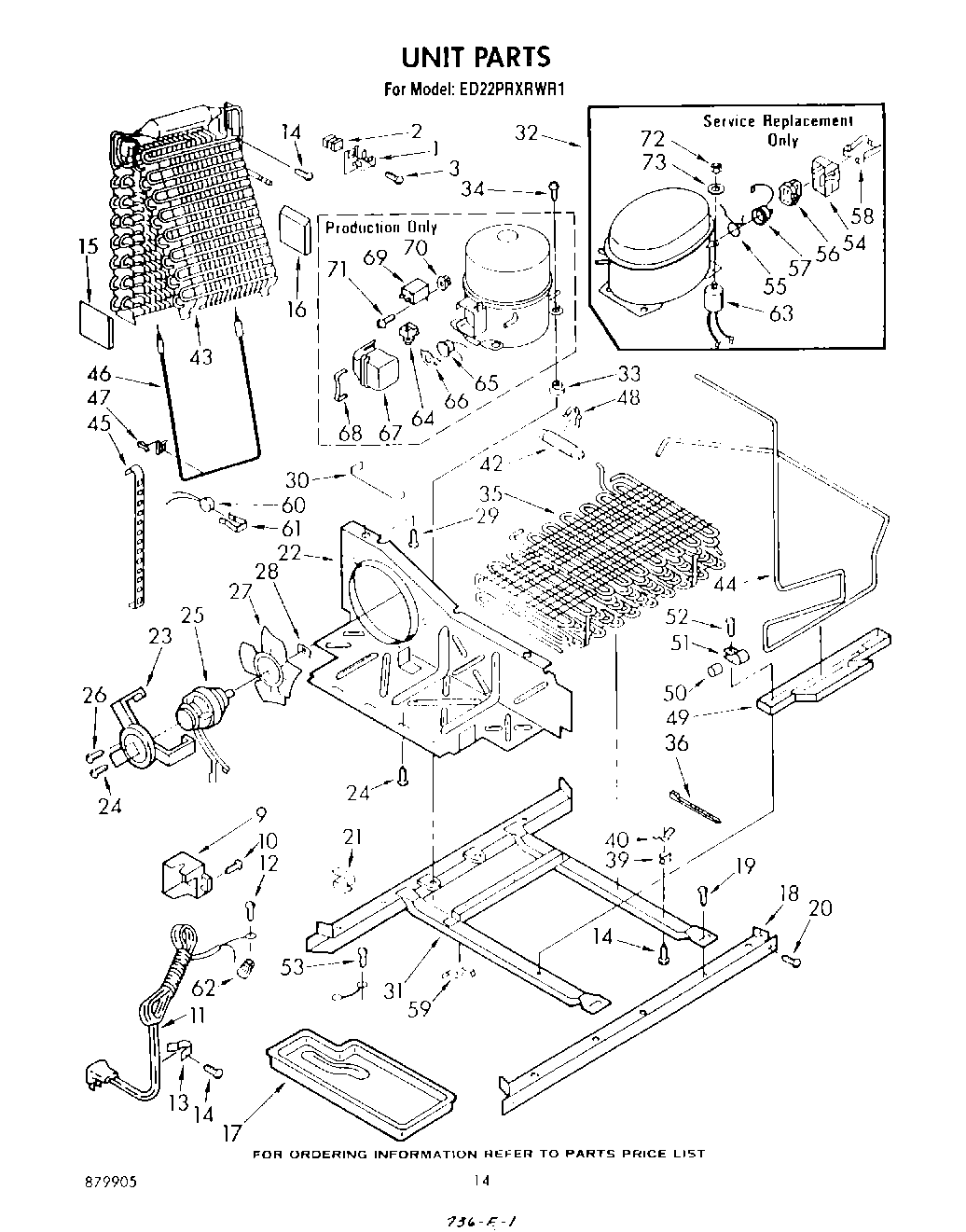

ED22PRXRWR1 08 – UNIT

ED22PRXRWR1 08 – UNIT

Written by

in

ED22PRXRWR1 08 – UNIT

Products

Position	Product
1	Support, Evaporator
2	Grommet, Screw
3	SCREW
9	Box, Junction
10	WP488729 Whirlpool Refrigerator Door Screw
11	Cord, Service
12	Screw, 8-32 x 3/8
13	549193 Whirlpool Refrigerator Power Clamp
14	W11624204 Whirlpool Screw
15	Air Baffle, Evaporator
16	Baffle, Air
17	Tray, Evaporator
18	Rail, Front
19	Screw, 1/4-28 x 1/2 (2)
20	Screw (Repair)
20	489340 Whirlpool Refrigerator Screw
21	Clip, Wire (2)
22	Baffle, Air
23	Bracket, Motor
24	Screw, 8 x 3/8
25	833697 Whirlpool Condenser Fan Motor
26	681390 Whirlpool Refrigerator Screw
27	Fan, Blade
28	WP486692 Whirlpool Refrigerator Nut
29	Screw, 8-15 x 3/8
30	Guard, Fan
31	Frame
32	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order)
33	876811 Whirlpool Grommet
35	Condenser & Precooler
36	Strap
39	Grommet (4)
40	Clamp (4)
42	W10843121 Whirlpool Refrigerator Tube
43	Evaporator
44	Exchanger, Heat
45	Heat Shield
46	WP549433 Whirlpool Refrigerator Heater
47	Heater, Clamp (4)
48	Clamp
49	Pan, Drip
50	Dampener (2)
51	Clamp Tube
52	WPW10141625 Whirlpool Refrigerator Screw Assembly
53	303776 Whirlpool Dishwasher Screw
54	Cover, Terminal
55	Overload Spring
56	WP2262181 Whirlpool Refrigerator Start Relay
57	Overload
58	Strap
59	Clip (2)
60	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
61	Clamp
62	Wire Connector
63	Capacitor
64	Relay
65	Overload
66	Overload Spring
67	Case, Relay
68	Spring, Case
69	WPW10662129 Whirlpool Refrigerator Run Capacitor
70	Screw Grommet
71	W11693756 Whirlpool Screw Assembly
72	Nut
73	Washer
73	876764 Whirlpool Refrigerator Primary Valve
73	VALVE, ACCESS (1/2“)
73	WP978025 Whirlpool Refrigerator Valve
73	978030 Whirlpool Refrigerator Valve
73	978027 Whirlpool Refrigerator Primary Valve
73	978026 Whirlpool Refrigerator Primary Valve
73	VALVE, ACCESS (5/8“)
