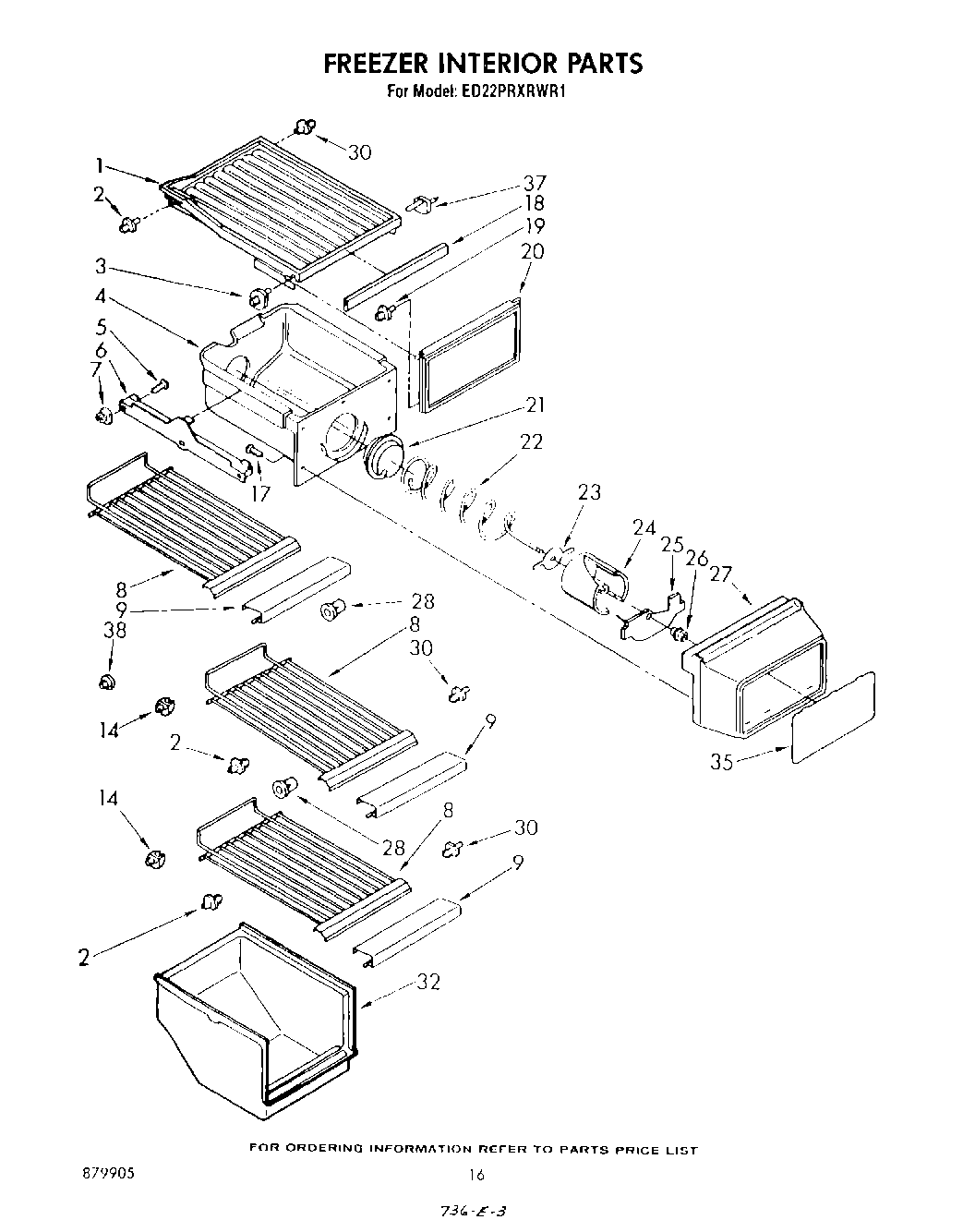

ED22PRXRWR1 09 – FREEZER INTERIOR

ED22PRXRWR1 09 – FREEZER INTERIOR

Written by

in

ED22PRXRWR1 09 – FREEZER INTERIOR

Products

PositionProduct
1Solid Shelf
2Stud, Shelf (2)
3Shelf, Stud
4Ice Container
5Screw, 8 x 1
6Slide, Freezer Bin
7Grommet
8Shelf, Ice Cube Pan
9Trim, Shelf
14Shelf Support
17WP488787 Whirlpool Refrigerator Screw
18Trim, Shelf
19Shelf, Stud
20Front, Ice Compartment
21W10749708 Whirlpool Refrigerator Coupling
22Conveyor, Ice Container
234388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
25Baffle
26Nut, Bearing
27Cover, Ice Container
28Grommet
30Stud, Shelf
32Bin, Freezer
35Overlay, Front Cover
37Stud, Shelf
38Retainer Stud
