ED22TQXFW00 01 – CABINET

ED22TQXFW00 01 – CABINET

Written by

in

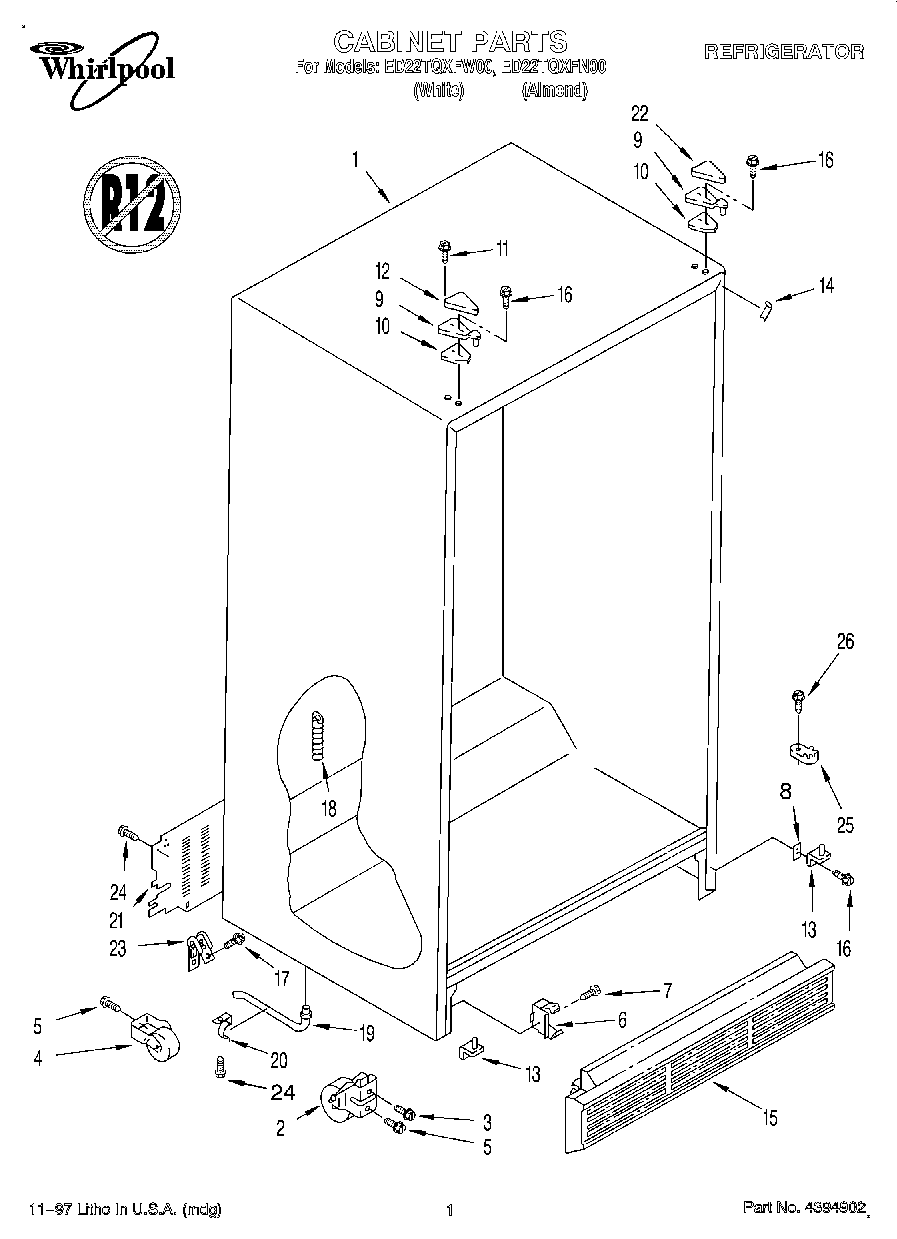

ED22TQXFW00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2181911 Whirlpool Refrigerator Shim
9WP2196046 Whirlpool Refrigerator Door Hinge
10Shim, Hinge Top
11Screw
12WP1129262 Whirlpool Refrigerator Cover
138201707 Whirlpool Door Hinge
14Filler, Wrapper (Almond)
14Filler, Wrapper (White)
15Grille (White)
15Grille (Almond)
16WP489497 Whirlpool Screw
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19WP1108438 Whirlpool Refrigerator Extension
20WP1108439 Whirlpool Refrigerator Clip
21WP2188756 Whirlpool Refrigerator Unit Cover
221119787 Whirlpool Refrigerator Hinge Cover
23549193 Whirlpool Refrigerator Power Clamp
25WPW10329686 Whirlpool Door Cam Black
26WP489483 Whirlpool Screw
