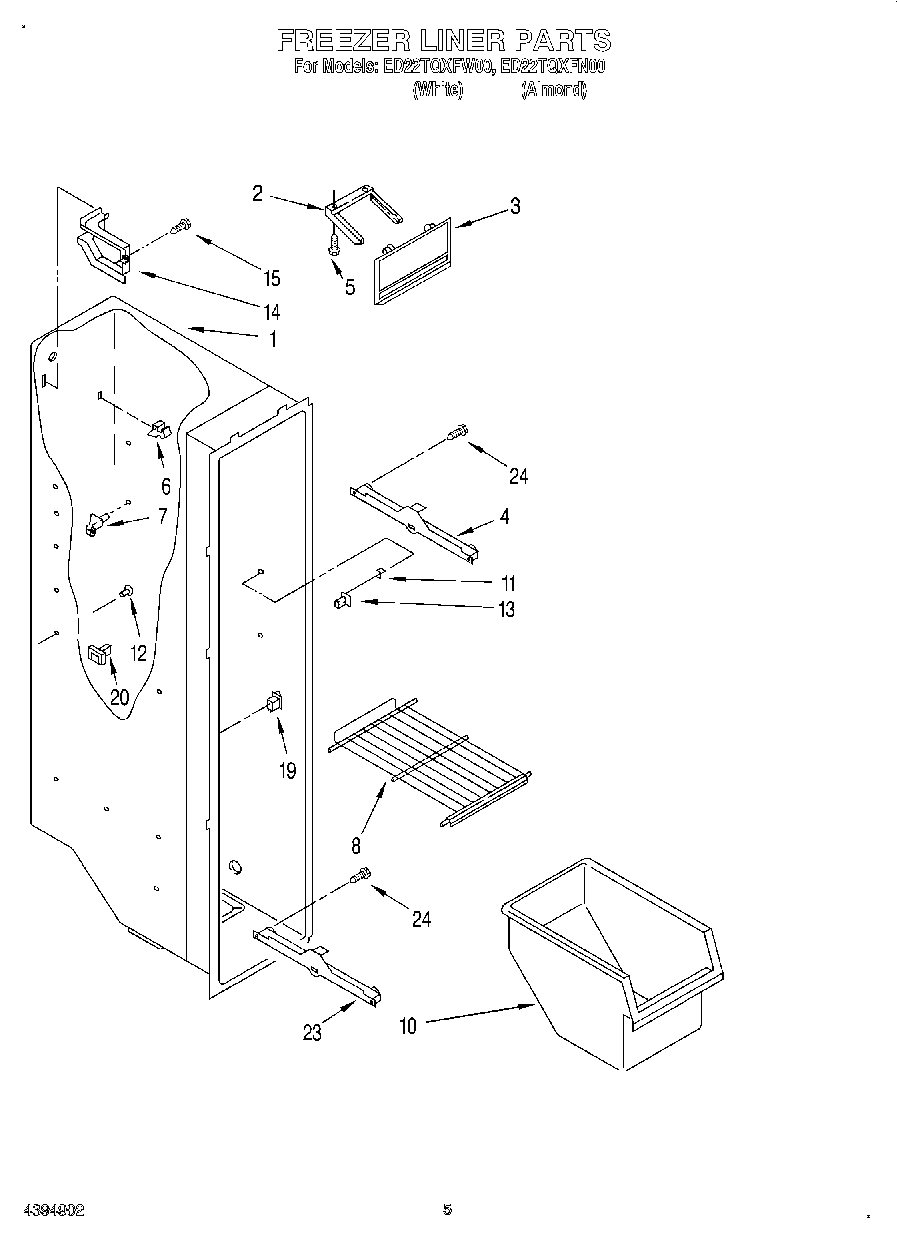

ED22TQXFW00 04 – FREEZER LINER

ED22TQXFW00 04 – FREEZER LINER

Written by

in

ED22TQXFW00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4W10845585 Whirlpool Refrigerator Track
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf (2)
8WP2174249K Whirlpool Refrigerator Wire Shelf
10Bin, Freezer
11Stud, Support
12Grommet
13Stud, Front R.S.
14Cover, Wiring
15SCREW
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20Stud, Rear R.S.
23Slide, Basket (Left Side)
23W10845583 Whirlpool Refrigerator Track
24718257 Whirlpool Dishwasher Screw
