ED22UQXGN01 03 – REFRIGERATOR SHELF

ED22UQXGN01 03 – REFRIGERATOR SHELF

Written by

in

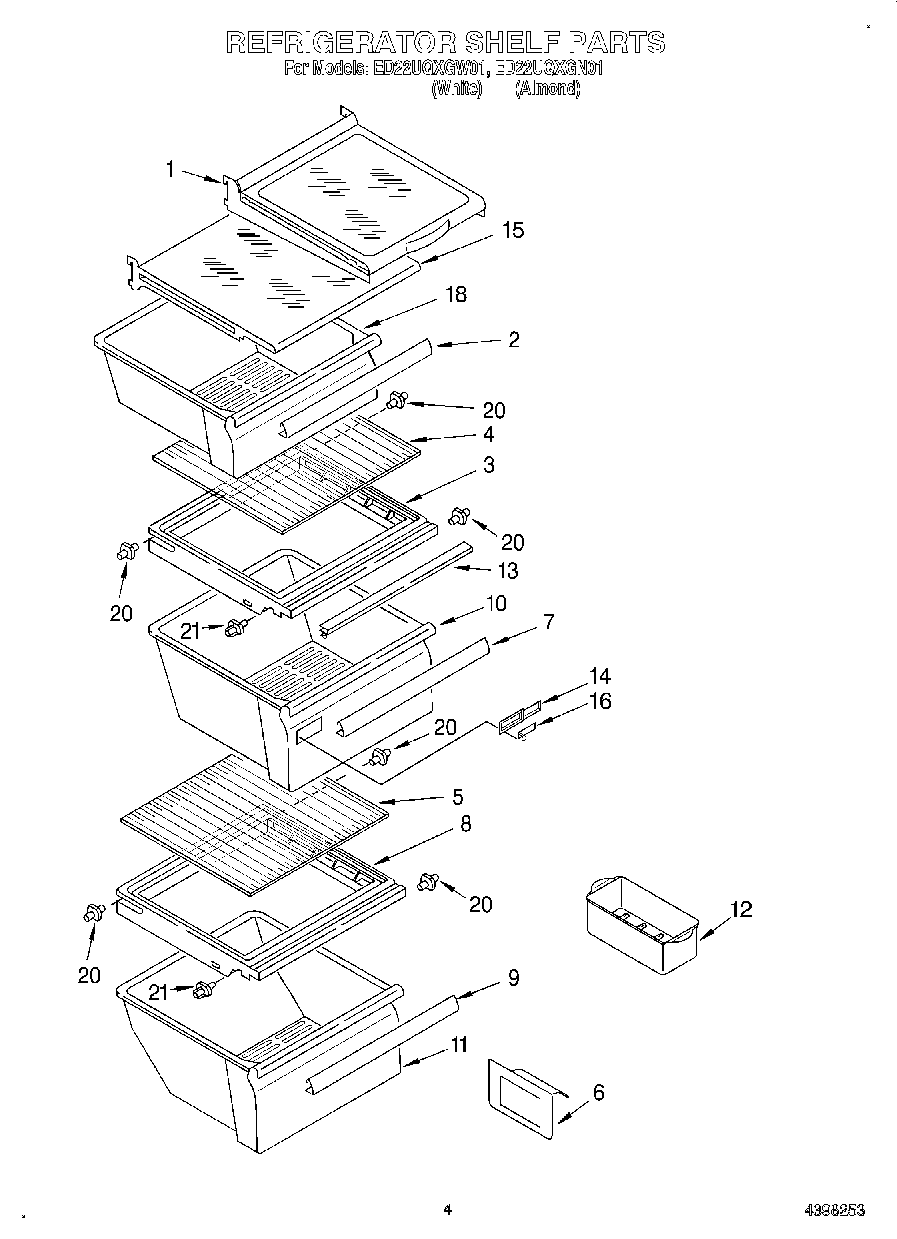

ED22UQXGN01 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2WP2179243 Whirlpool Refrigerator Pan Trim
4W10864399 Whirlpool Glass Shelf
62179350 Whirlpool Refrigerator Deflector
8W10508993 Whirlpool Refrigerator Cover Pan
9WP2179234 Whirlpool Refrigerator Pan Trim
10PAN-CRISPR
11Meat Pan
12W10136387A Whirlpool Refrigerator Egg Container
13Gasket, Front
14WP2179342 Whirlpool Refrigerator Slide
15Shelf, Cantilever (Snack Bin)
16WP2179343 Whirlpool Refrigerator Control Body
18W11497323 Whirlpool Snack Pan
204388538 Whirlpool Refrigerator Stud Shelf Kit (White)
214388539 Whirlpool Refrigerator Shelf Stud
