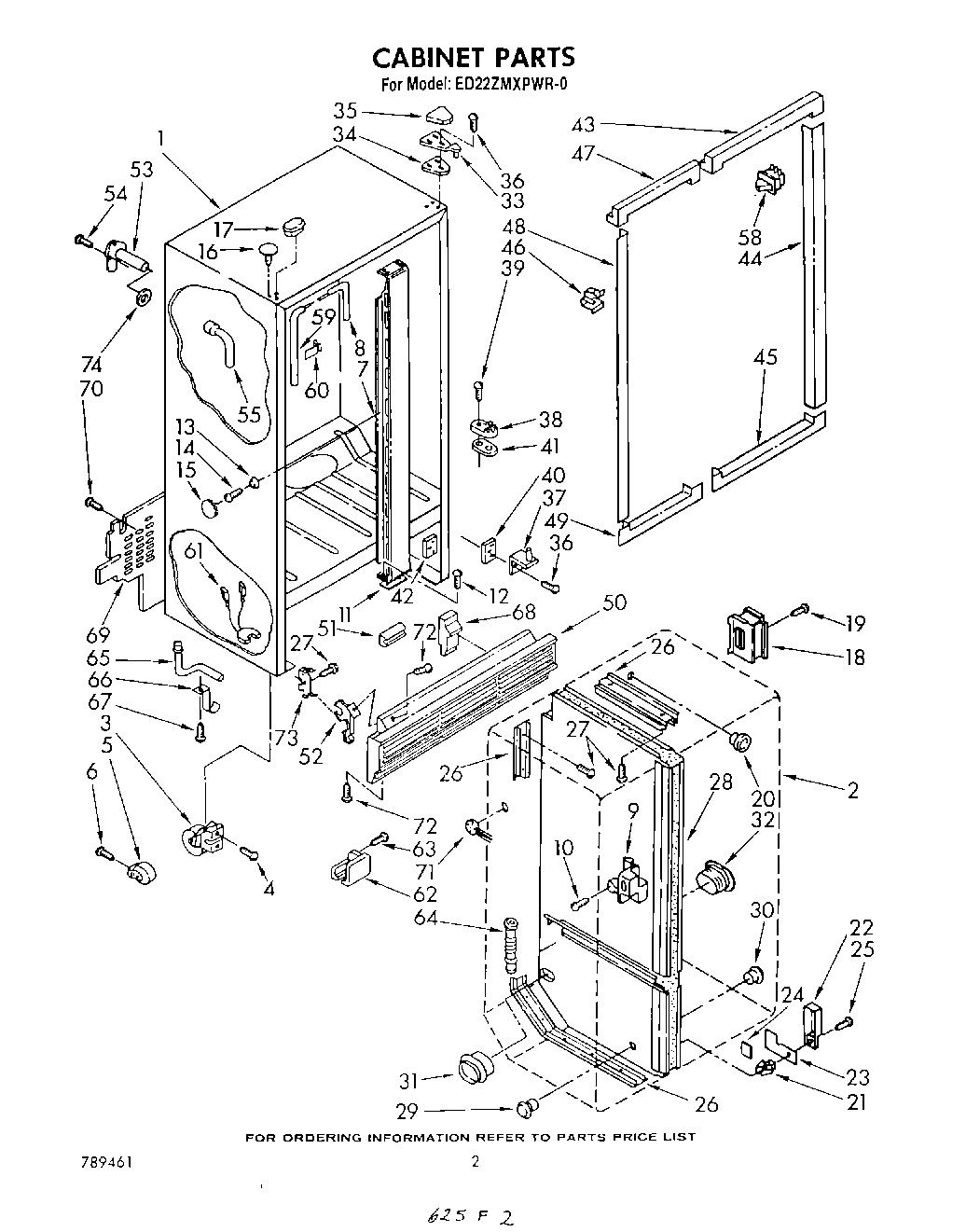

ED22ZMXPWR0 02 – CABINET

ED22ZMXPWR0 02 – CABINET

Written by

in

ED22ZMXPWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Liner (Not A Serviceable Part)
3	Roller, Front
4	Screw, 5/16-24 x 1
5	WPW10250570 Whirlpool Refrigerator Cabinet Roller
6	Screw, 1/4-28 x 1/2 (2)
7	Center Rail Mullion (Golden Harvest)
7	Center Rail Mullion (White)
7	Center Rail Mullion (Almond)
7	Center Rail, Mullion (Platinum)
7	Center Rail, Mullion (Toast)
8	Heater, Mullion
9	Stabilizer, Mullion
10	WP488787 Whirlpool Refrigerator Screw
11	Spacer
12	WP489069 Whirlpool Compactor Screw
12	WP308685 Whirlpool Microwave Screw
13	Spacer Screw, Stabilizer
14	Screw, 8 x 7/8
15	Hole Cover
16	Hole, Plug (Platinum)
16	Hole, Plug (White)
16	Hole, Plug (Golden Harvest)
16	Hole Plug (Almond)
16	Hole, Plug (Toast)
17	Hole Plug (Platinum)
17	Hole Plug (Almond)
17	Hole Plug (Golden Harvest)
17	Hole Plug (White)
17	Hole Plug (Toast)
18	Control Connector & Gasket Assembly
19	WP488163 Whirlpool Refrigerator Screw
20	Grommet, Wiring
21	Expansion Clip
22	Escutcheon, Meat Pan Control
23	Slide, Meat Pan Control
24	Pad, Foam
25	Screw, 8-15 x 1/2 (4)
26	Track Divider (Back & Bottom)
26	Track, Divider (Top)
27	W11624204 Whirlpool Screw
28	Divider, Mullion
29	Retainer, Hole Insert
30	Insert, Hole
31	Insert, Air Return
32	Retainer, Insert
33	Hinge, Top
34	Shim, Hinge
35	1119787 Whirlpool Refrigerator Hinge Cover
35	Hinge Cover (Golden Harvest)
35	Hinge Cover (Toast)
36	Screw (Repair)
36	WP999367 Whirlpool Refrigerator Screw
37	Hinge Bottom (L.H)
37	Hinge Bottom (R.H)
38	WPW10329686 Whirlpool Door Cam Black
39	WP486579 Whirlpool Air Conditioner Screw
40	Shim, Bottom Hinge
41	Shim, Door Closer
42	Tap Plate
43	WPL 848475
44	WPL 848476
45	WPL 848477
46	Breaker, Clip
47	WPL 848479
48	WPL 848480
49	WPL 848481
50	Exterior, Grille (White)
50	Exterior, Grille (Golden Harvest)
50	Exterior, Grille (Almond)
50	Exterior, Grille (Toast)
50	Exterior, Grille (Platinum)
51	Bumper, Grille
52	WP944224 Whirlpool Refrigerator Support
53	WP2196157 Whirlpool Fill Tube
54	WP98165 Whirlpool Screw
55	WPL 849909
58	W11384469 Whirlpool Door Switch
59	WPL 989660
60	WPL 935663
61	WPL 548734
62	WPL 549947
63	WP488729 Whirlpool Refrigerator Door Screw
64	WPL 836068
65	Extension, Drain Fitting
66	Cup, Drain Extension
67	Screw, 8-15 x 3/8
68	WPL 836372
69	WPL 850457
71	Wiring, Ice Maker
72	WPL 489085
73	WPL 989068
74	WP1106508 Whirlpool Refrigerator Gasket
