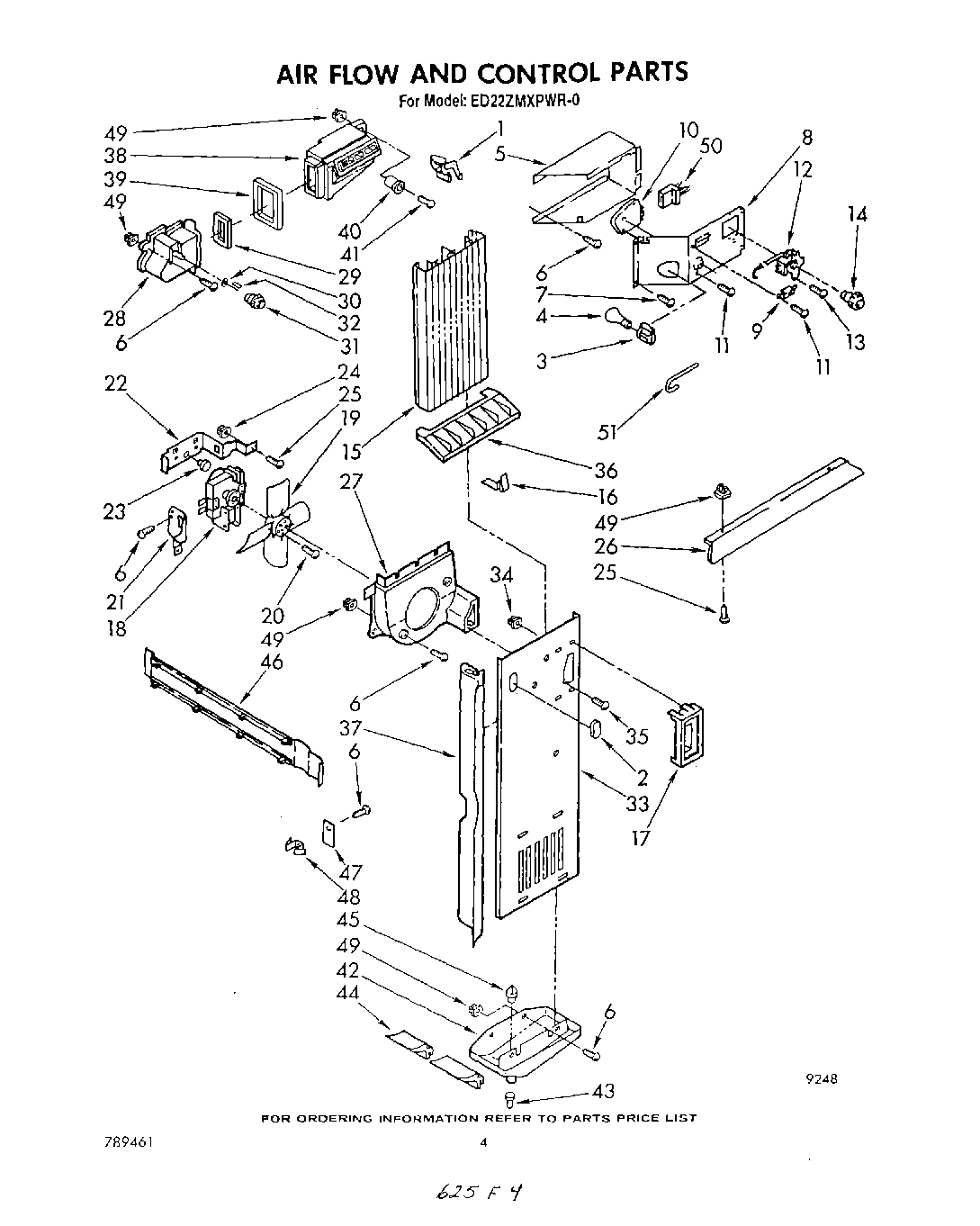

ED22ZMXPWR0 03 – AIRFLOW AND CONTROL

Products

Position	Product
1	2215823 Whirlpool Refrigerator Clip
2	Hole Plug
3	4387478 Whirlpool Refrigerator Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Box, Control
6	W11624204 Whirlpool Screw
7	Screw, 8-32 x 3/8
8	Control Box Front
9	WP938213 Whirlpool Refrigerator Power Switch
10	Defrost Timer
11	WP3388228 Whirlpool Screw
12	WP4317800 Whirlpool Refrigerator Thermostat
13	WP489128 Whirlpool Refrigerator Screw
14	Knob, Temperature Control
15	Air Duct
16	Baffle, Air
17	Grille, Freezer
18	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
19	Blade, Fan
20	WP487887 Whirlpool Refrigerator Screw
21	Fan, Bracket Double
22	Bracket, Fan Mounting (Single)
23	Grommet (3)
24	Screw Grommet
25	WP489069 Whirlpool Compactor Screw
26	Baffle, Liner Top
27	Scroll Fan
28	Air Scoop Assembly
29	Gasket, Air Scoop
30	Retainer, Damper
31	Control Knob
32	Knob, Retainer
33	Cover, Evaporator
34	Screw, Grommet
35	WP488729 Whirlpool Refrigerator Door Screw
36	End Cap, Evaporator
37	Gasket, Evaporator Cover
38	Air Diffuser Assembly
39	Gasket, Air Diffuser
40	836667 Whirlpool Refrigerator Spacer
41	Screw, 8 x 1-1/4 (3)
42	Drain Pan
43	Fitting, Drain Pan
44	Gasket, Drain Pan
45	Cap, Drain
46	Cover, Heat Exchanger
47	Heat Exchanger, Clip
48	Expansion Clip
49	Grommet
50	Liner Wiring (Defrost Timer)
51	WP2196003 Whirlpool Refrigerator Bar Riser
