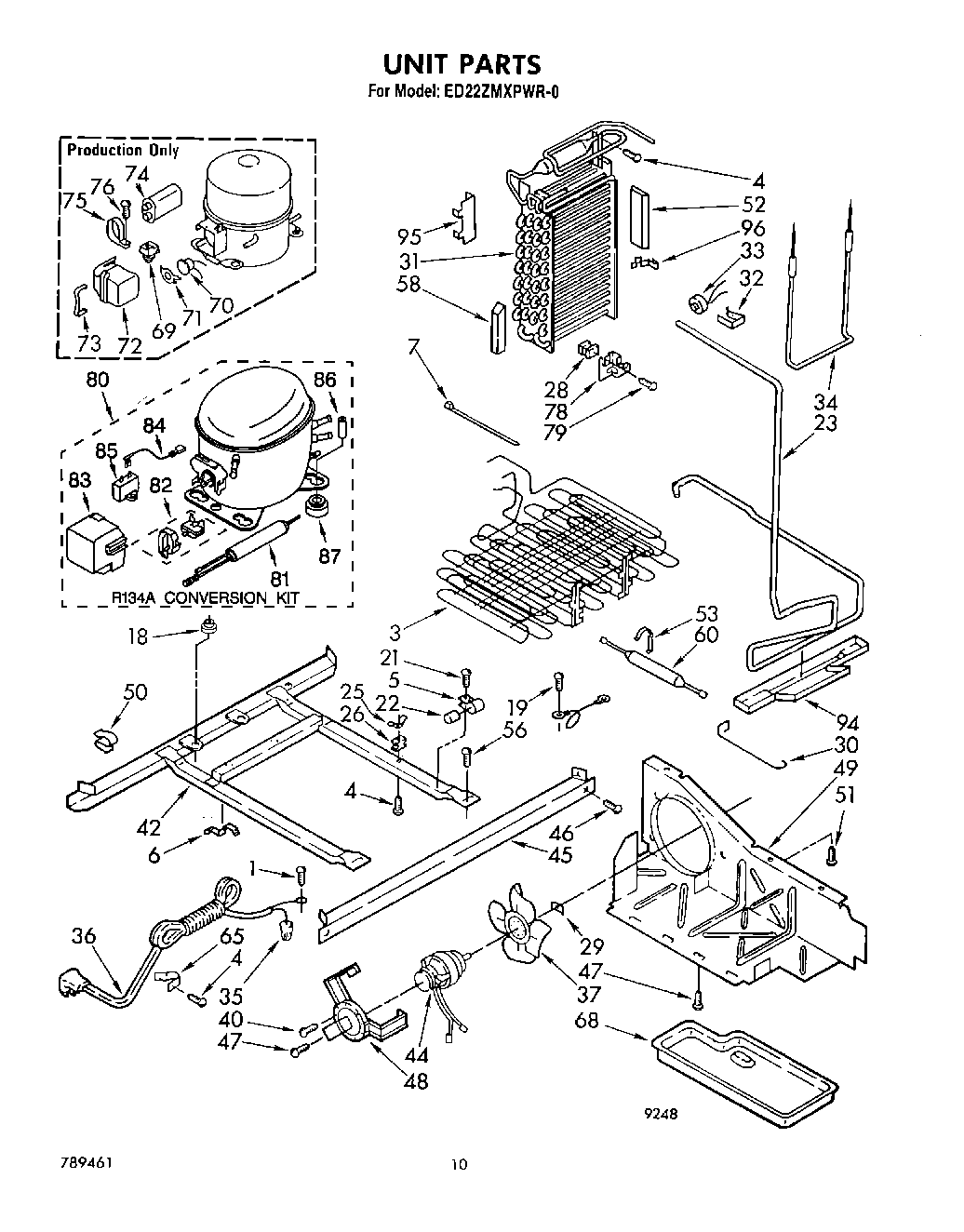

ED22ZMXPWR0 06 – UNIT

Products

Position	Product
1	Screw, 8-32 x 3/8
3	Condenser & Precooler
4	W11624204 Whirlpool Screw
5	Clamp Tube
6	Clip (2)
7	Strap
18	876811 Whirlpool Grommet
19	303776 Whirlpool Dishwasher Screw
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Dampener (2)
23	Exchanger, Heat
25	Clamp (4)
26	Grommet (4)
28	Grommet, Screw
29	WP486692 Whirlpool Refrigerator Nut
30	Guard, Fan
31	Evaporator
32	Clamp
33	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34	WP549433 Whirlpool Refrigerator Heater
35	Wire Connector
36	Cord, Service
37	Fan, Blade
40	681390 Whirlpool Refrigerator Screw
42	Frame
44	833697 Whirlpool Condenser Fan Motor
45	Rail, Front
46	489340 Whirlpool Refrigerator Screw
47	Screw, 8 x 3/8
48	Bracket, Motor
49	Baffle, Air
50	Clip, Wire (2)
51	Screw, 8-15 x 3/8
52	Baffle, Air
53	Clamp
56	Screw, 1/4-28 x 1/2 (2)
58	Air Baffle, Evaporator
65	549193 Whirlpool Refrigerator Power Clamp
68	Tray, Evaporator
69	Relay
70	Overload
71	Overload Spring
72	Case, Relay
73	Spring, Case
74	Running Capacitor
75	Clamp, Capacitor
76	WP489128 Whirlpool Refrigerator Screw
78	Support, Evaporator
79	SCREW
80	Compressor (Includes Items 81, 82, 83, 84, 85, 86, & 87) Also order
80	876765 Whirlpool Primary Mounting Kit Refrigerator
81	W10843121 Whirlpool Refrigerator Tube
82	W11239930 Whirlpool Refrigerator Overload Relay
83	WP2162358 Whirlpool Refrigerator Terminal Cover
84	WP2172890 Whirlpool Refrigerator Wire
85	WP4387764 Whirlpool Run Capacitor
86	Sleeve (4) (Service Only)
87	WP4387558 Whirlpool Refrigerator Compressor Grommet
94	Pan, Drip
95	Heat Shield
96	VALVE, ACCESS (5/8“)
96	VALVE, ACCESS (1/2“)
96	WP978025 Whirlpool Refrigerator Valve
96	876764 Whirlpool Refrigerator Primary Valve
96	Heater, Clamp (4)
96	978030 Whirlpool Refrigerator Valve
96	978026 Whirlpool Refrigerator Primary Valve
96	978027 Whirlpool Refrigerator Primary Valve
