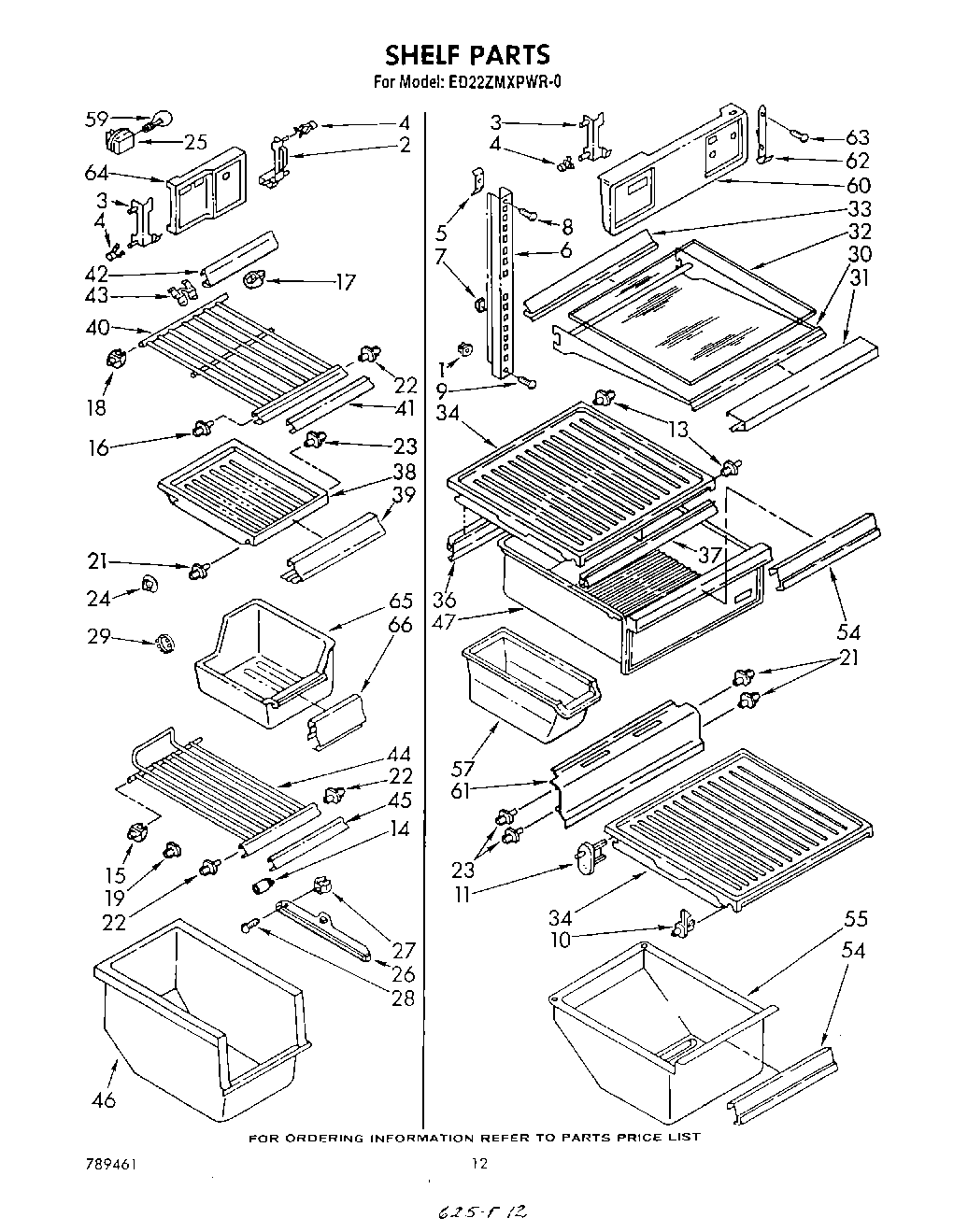

| 1 | Grommet |
| 2 | Support, Light Lens (R.S.) |
| 3 | Support, Light Lens (L.S.) |
| 4 | Clip, Tubular |
| 5 | Screw, Anchor (3) |
| 6 | Shelfladder (2) |
| 7 | 520965 Whirlpool Refrigerator Support |
| 8 | Screw, 8 x 1-1/4 (3) |
| 9 | Screw (Repair) |
| 9 | Screw, 8-32 x 1-1/4 |
| 10 | Shelf, Stud |
| 11 | Shelf Stud |
| 13 | Shelf, Stud |
| 14 | Grommet |
| 15 | Shelf Support |
| 16 | Shelf, Stud (2) |
| 17 | Shelf, Saddle (R.S.) |
| 18 | Shelf Stud, Saddle |
| 19 | Retainer Stud |
| 21 | Stud, Shelf (2) |
| 22 | Shelf, Stud |
| 23 | Stud, Shelf |
| 24 | Hole, Plug |
| 25 | 4387478 Whirlpool Refrigerator Light Socket |
| 26 | Slide, Freezer Bin |
| 27 | Expansion Clip |
| 28 | Screw, 8 x 1 |
| 29 | Hole, Plug |
| 30 | Shelf, Cantilever |
| 31 | Shelf Trim, Cantilever |
| 32 | Glass, Cantilever Shelf |
| 33 | Reflector, Cantilever |
| 34 | Pan Slide & Cover |
| 36 | Crisper Basket, Rear |
| 37 | Crisper Gasket Front |
| 38 | Solid Shelf |
| 39 | Solid Shelf Trim |
| 40 | Shelf, Freezer |
| 42 | Shelf Reflector |
| 43 | Clip, Reflector |
| 44 | Shelf, Ice Cube Pan |
| 45 | Shelf Trim, Ice Pan |
| 46 | Freezer Bin, Plastic |
| 47 | Pan, Crisper |
| 54 | Overlay, Front Cover |
| 55 | Pan |
| 57 | WP982704 Whirlpool Refrigerator Container |
| 59 | RANGE ONLY 40W 120V APPL BULB |
| 60 | Light Lens |
| 61 | Light Lens, Crisper |
| 62 | Support, Light Lens |
| 63 | W11624204 Whirlpool Screw |
| 64 | Light Lens, Freezer |
| 65 | PAN-ICE |
| 66 | Trim, Ice Pan |
