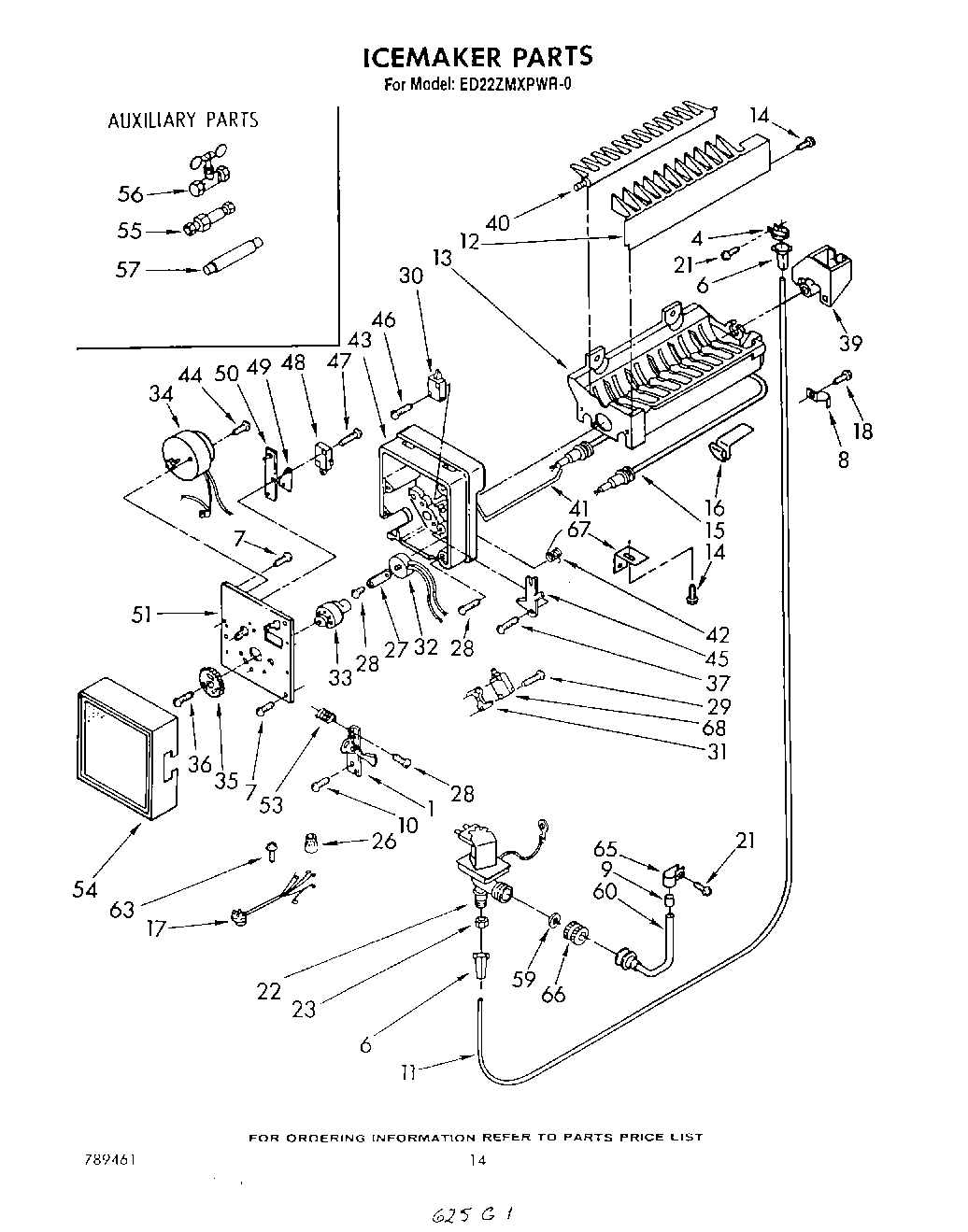

ED22ZMXPWR0 08 – ICE MAKER , LIT/OPTIONAL

ED22ZMXPWR0 08 – ICE MAKER , LIT/OPTIONAL

Written by

in

ED22ZMXPWR0 08 – ICE MAKER , LIT/OPTIONAL

Products

PositionProduct
WPL LIT789461
WPL LIT1110267
WPL LIT1110265
WPL LIT1105009
1Lever & Plate Assembly
4WP488878 Whirlpool Refrigerator Tube Clamp
64387491 Whirlpool Refrigerator Insert
7WP488787 Whirlpool Refrigerator Screw
8Clamp, Water Line (2)
9WP2158826 Whirlpool Refrigerator Dampener
10Screw (Use W/Motor 627106)
11W10823511 Whirlpool Refrigerator Water Tube
12Stripper, Ice
13Mold & Heater Assembly (Includes Illus. 15)
14WP489128 Whirlpool Refrigerator Screw
15Heater, Mold
16Clip
17Wire Harness
18WP489069 Whirlpool Compactor Screw
21WP965173 Whirlpool Dishwasher Screw
224318047 Whirlpool Water Valve
23WP627018 Whirlpool Refrigerator Nut
26Wire Connector
27Clamp, Thermostat
28Screw, 8-32 x 1
30Switch, S.P.D.T. (2)
31Spacer, Switch (2)
32Thermostat
33Cam
34Motor
35Gear
36Screw
37Screw, Shoulder
39Bearing & Inlet
40Ejector
41Arm, Shut-Off
42Spring, Shut-Off Arm
43Support
44Screw, 4-40 x 1
45Lever, Arm
46Screw, 4-24 x 3/4
47Screw
48Switch, S.P.S.T.
49Insulator
50Plate, Valve Switch
51Plate, Mounting
53Spring
54Cover
55Union, 1/4“ x 3/16“
56Valve, Shut-Off
57Filter Kit
59WP16123 Whirlpool Washer
60Tube, Inlet Valve
63Screw, Ground
65Clamp Tube
66Nut, Valve
67WP2256087 Whirlpool Refrigerator Bracket
68Golden Harvest
6872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
68Switch, S.P.D.T.
68350930 Whirlpool White Spray Paint
68350956 Whirlpool Spray Assembly
6872017 Whirlpool Appliance Touch-Up Paint White
68799344 Whirlpool Refrigerator Paint
68WP72107 Whirlpool Touchup
68Leveler (Thinner)
68Almond (Uncut)
68Toast
68Golden Harvest (Uncut)
68Paint, Spray (13 Oz.) (Platinum)
6872032 Whirlpool Touch Up Paint Black
68285006 Whirlpool Spray
68WP505587 Whirlpool Refrigerator Sealer
68WP542638 Whirlpool Refrigerator Grease
68TAPE, VINYL (3/4 X 108“)
68CEMENT, ALUMILASTIC (1 1/4 OZ.)
68WPL 876029
68WPL 799833
68876370 Whirlpool Refrigerator Insulation
68833938 Whirlpool Refrigerator Terminal
68Enamal, Toast (1 Qt. Uncut)
68Platinum (Uncut)
68WP503695 Whirlpool Refrigerator Sealer
68212643 Whirlpool Refrigerator Permagum Sealer
68Silicone (Spray)
68350942 Whirlpool Spray Paint
68511873 Whirlpool Refrigerator Paint
68606755 Whirlpool Refrigerator Bag
68WPL 799832
