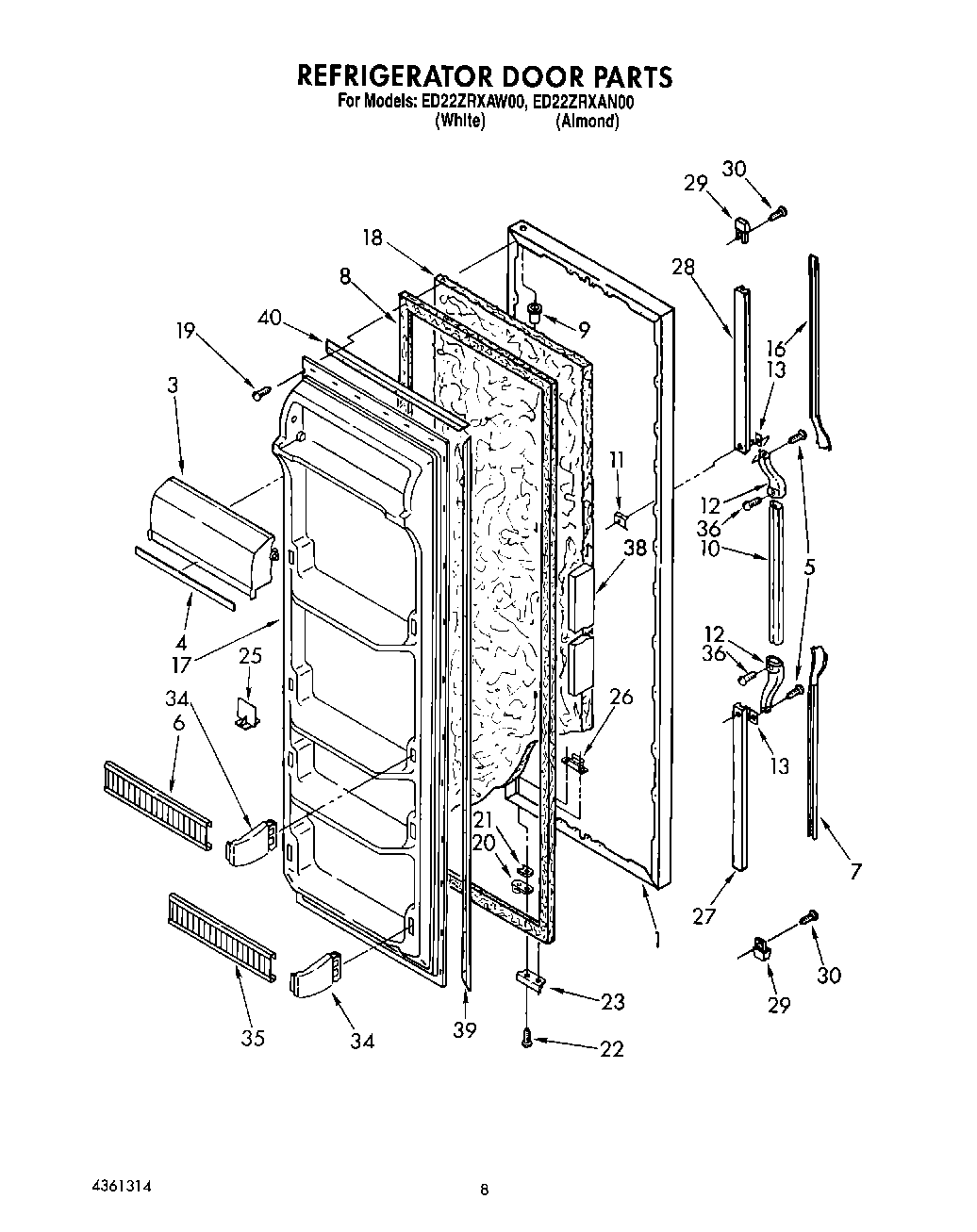

ED22ZRXAW00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Also Order Item 18)
1	Refrigerator Door (Almond (Also Order Item 18))
3	Door, Compartment
4	Trim, Compartment Door
6	Trim, Door Shelf
7	Insert, Handle (White)
7	Insert, Handle (Almond)
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	Handle, Center
11	Screw Anchor (2)
12	End Cap, Center Handle
13	Shim
16	Insert, Handle (Almond)
16	Insert, Handle
17	Panel, Interior Door
18	WPL 876029
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
25	Divider, Shelf
26	Tap Plate
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap (2)
30	Screw
34	4388286 Whirlpool Refrigerator Shelf Bar Endcap Kit 2 Pack White
35	Trim, Door Shelf
36	Screw
38	Reinforcement, Shelf
39	Retainer, Gasket
40	Gasket Retainer, Top & Bottom
