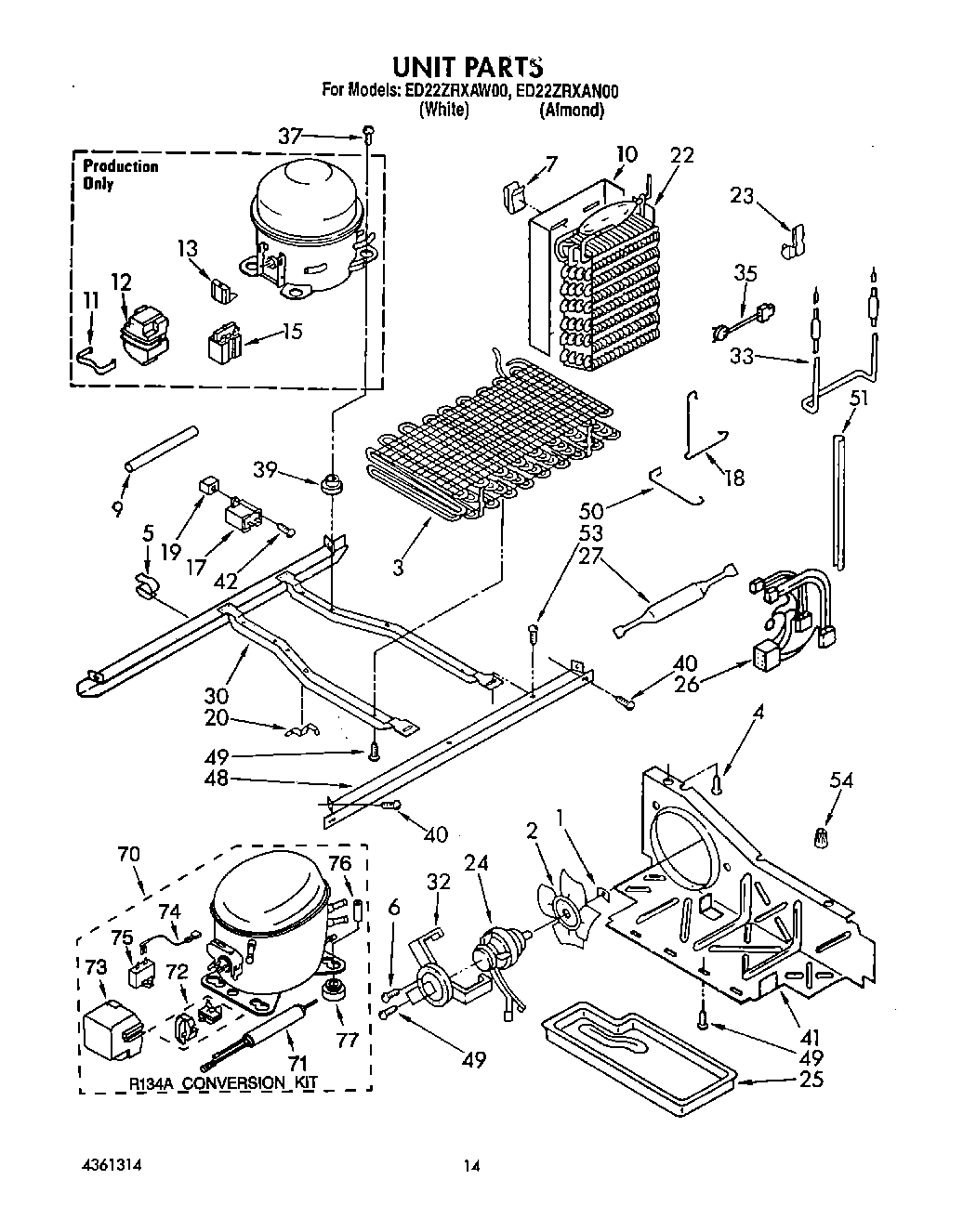

ED22ZRXAW00 10 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
5	Clip, Wire
6	681390 Whirlpool Refrigerator Screw
7	Clip, Heat Shield
9	WP2158826 Whirlpool Refrigerator Dampener
10	Heat Shield
11	case spring
12	Case, Relay
13	Overload (Includes Relay)
15	Relay (See Overload)
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	Clip, Defrost Heater
19	Screw Grommet
20	Clip (2)
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clip
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	Wiring Assembly, Intermediate
27	W10843121 Whirlpool Refrigerator Tube
30	2304903 Whirlpool Refrigerator Frame
32	Fan, Motor Bracket
33	Heater, Defrost
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	Screw
39	Grommet (Production)
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	W11693756 Whirlpool Screw Assembly
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	SLEEVE
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
70	876765 Whirlpool Primary Mounting Kit Refrigerator
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) Also order
72	WP4387835 Whirlpool Refrigerator Overload
73	WP2162358 Whirlpool Refrigerator Terminal Cover
74	WP2172890 Whirlpool Refrigerator Wire
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	978026 Whirlpool Refrigerator Primary Valve
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
77	WP978025 Whirlpool Refrigerator Valve
77	978030 Whirlpool Refrigerator Valve
77	978027 Whirlpool Refrigerator Primary Valve
77	876764 Whirlpool Refrigerator Primary Valve
77	VALVE, ACCESS (5/8“)
77	VALVE, ACCESS (1/2“)
