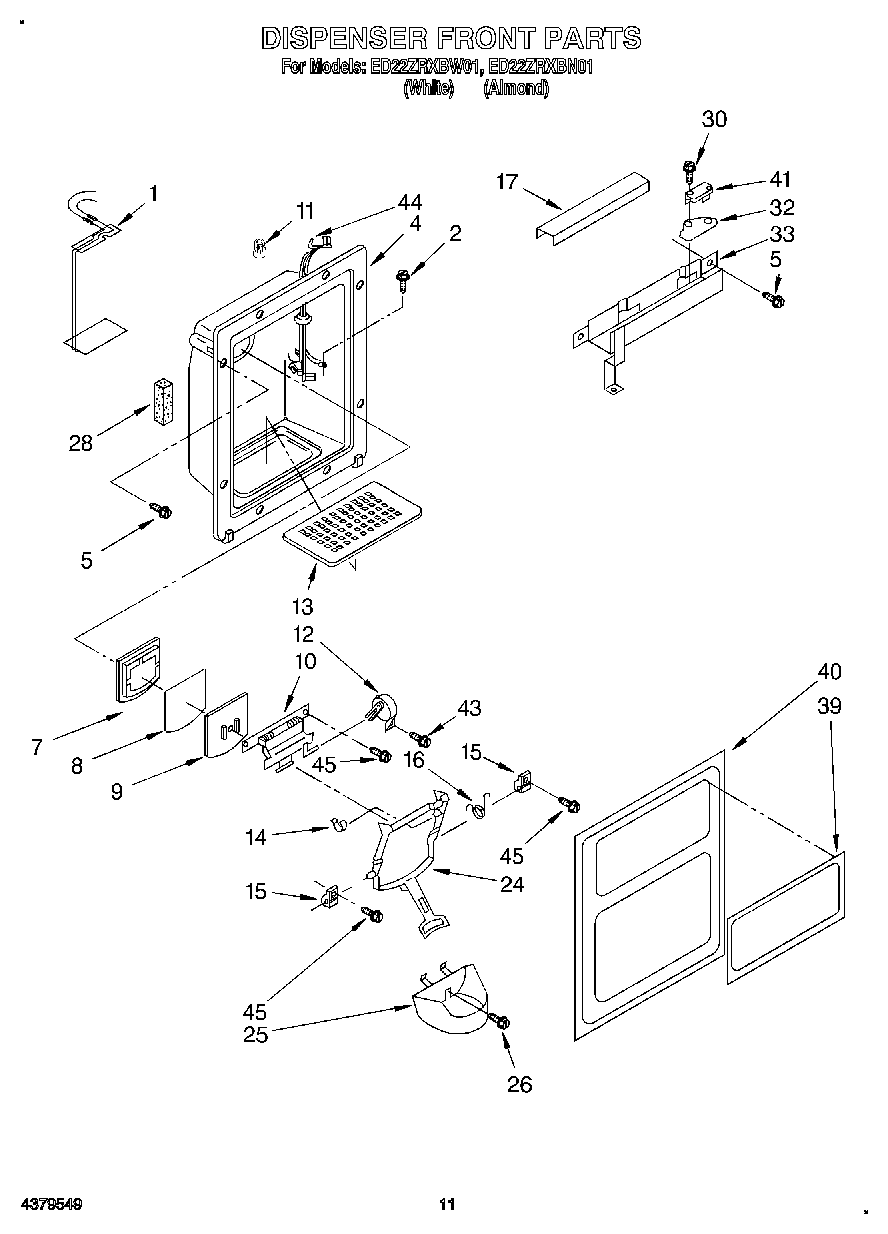

ED22ZRXBN01 08 – DISPENSER FRONT

Products

Position	Product
1	Heater, Dispenser
2	WP489128 Whirlpool Refrigerator Screw
4	Housing, Dispenser
5	W11693756 Whirlpool Screw Assembly
7	Gasket, Door
8	Shield, Ice Door
9	Door, Ice
10	Door Mechanism Assembly
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
24	Lever Assembly, Ice Dispenser
25	Guide, Ice
26	Screw
28	Seal
30	Screw,
32	Insulator, Switch (2)
33	Bracket, Control
39	Plaque, Front Cover
40	Front Cover, Housing (Includes Item 39)
41	WP2162361 Whirlpool Switch
43	Screw, 8-18 x 3/4
44	Wiring Assembly, Door
45	WP3400906 Whirlpool Refrigerator Screw
