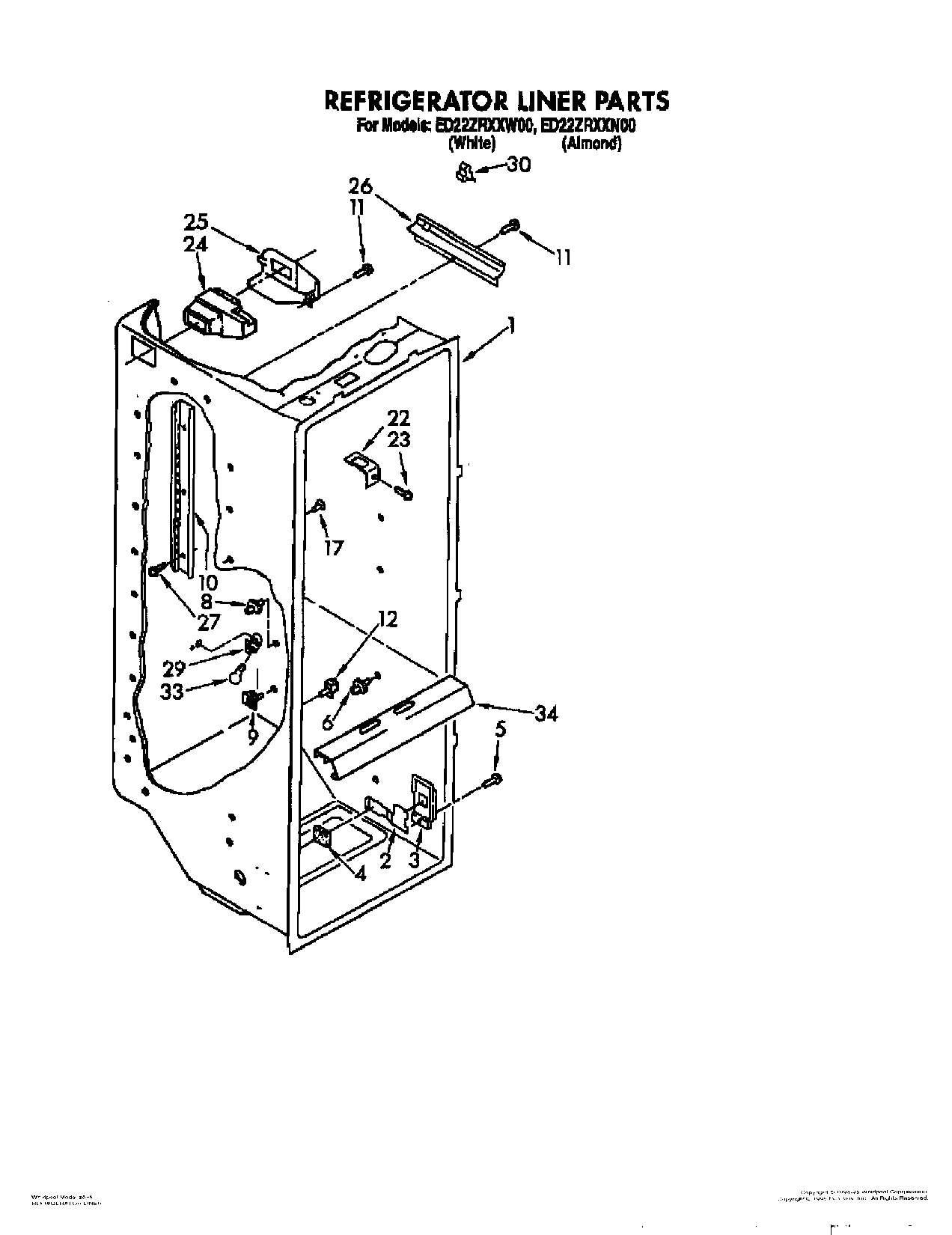

ED22ZRXXN00 03 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide, Meat Pan Control
4	Pad, Foam
5	Screw, 8-15 x 1/2 (4)
6	WP2149540 Whirlpool Shelf Support
8	Stud, Front R.S.
9	Stud, Rear R.S.
10	Ladder, Shelf
11	W10759522 Whirlpool Screw
12	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
17	Stud, Support
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP488488 Whirlpool Refrigerator Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	2150331 Whirlpool Refrigerator Wire Cover
27	WP488729 Whirlpool Refrigerator Door Screw
29	4387478 Whirlpool Refrigerator Light Socket
30	2215823 Whirlpool Refrigerator Clip
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
