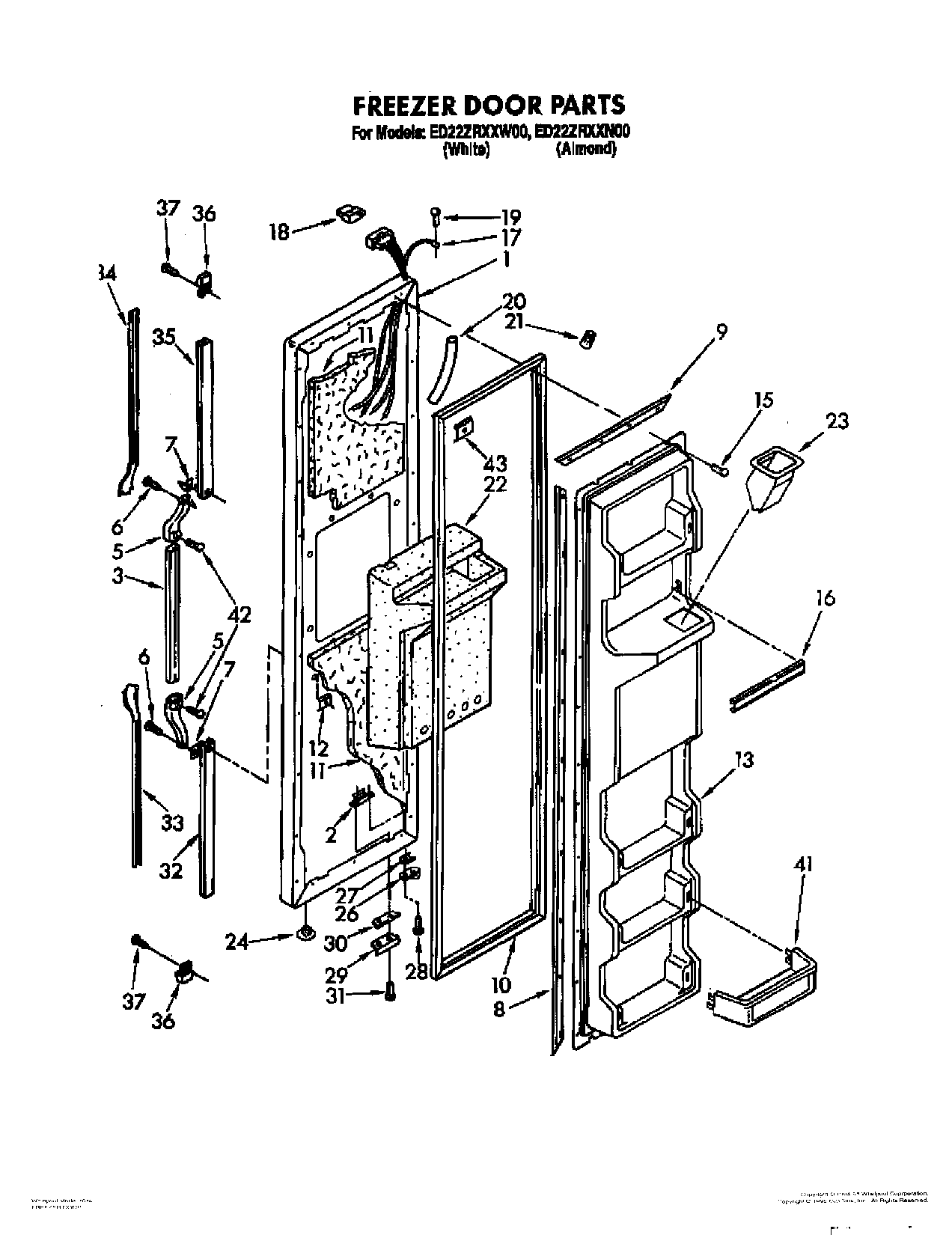

ED22ZRXXN00 08 – FREEZER DOOR

Products

Position	Product
1	freezer, door panel (almond (also order item 11))
1	Freezer, Door Panel (Also Order Item 11)
2	Tap Plate
3	Handle, Center
5	End Cap, Center Handle
6	WP488729 Whirlpool Refrigerator Door Screw
7	Shim
8	Retainer, Gasket
9	Retainer, Gasket
10	2188405A Whirlpool Refrigerator Door Gasket
11	WPL 876029
12	Screw Anchor (2)
13	Panel, Interior Door
16	Trim, Door Shelf
17	Harness, Door (Includes Illustration 18)
18	Connector, Plug
19	WP488234 Whirlpool Air Conditioner Screw
20	Tube, Door Wiring
21	Wire Connector
22	Insulation, Dispenser
23	Chute, Ice
24	Hole Plug (2)
26	4318165 Whirlpool Refrigerator Door Closure Cam Kit
27	WP1104787 Whirlpool Refrigerator Shim
29	Bracket, Door Stop
30	Shim
31	WP489069 Whirlpool Compactor Screw
32	Retainer, Insert (Bottom)
33	Insert, Handle (White)
33	Insert, Handle (Almond)
34	Insert, Handle (Almond)
34	Insert, Handle
35	Retainer, Insert
36	End Cap (2)
37	Screw
41	Door, Shelf
42	Screw
43	WP939101 Whirlpool Refrigerator Plate
