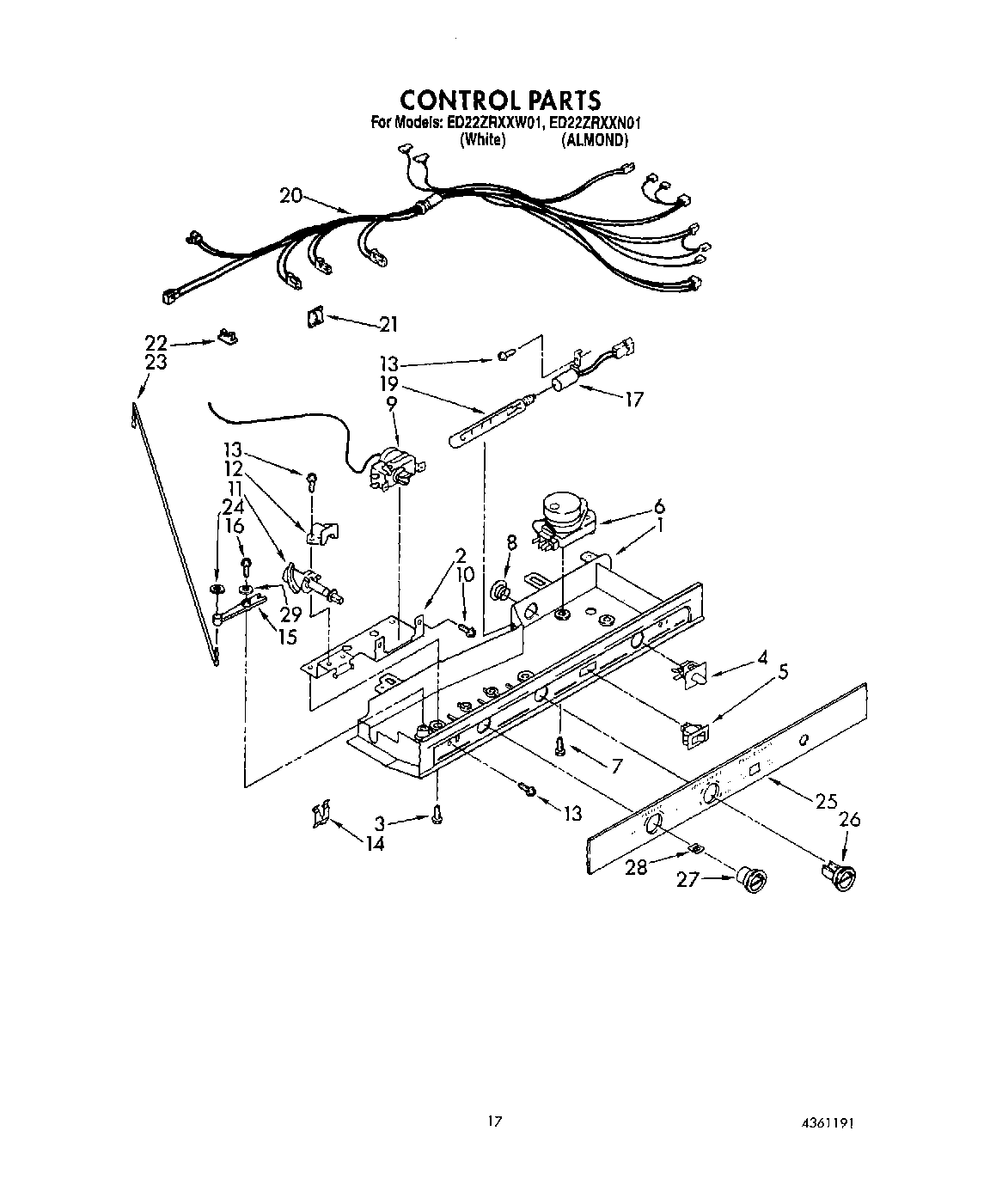

ED22ZRXXN01 12 – CONTROL

Products

Position	Product
1	Control Box
2	Mounting Bracket
3	Screw (2)
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP938213 Whirlpool Refrigerator Power Switch
6	Defrost Timer, (10 Hr.)
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	Cam Assembly
12	1110560 Whirlpool Refrigerator Bearing
13	SCREW
14	Retainer, Damper
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon Control
26	2182111 Whirlpool Refrigerator Thermal Knob
27	Knob, Air Control
28	Knob, Retainer
29	489203 Whirlpool Refrigerator Washer
