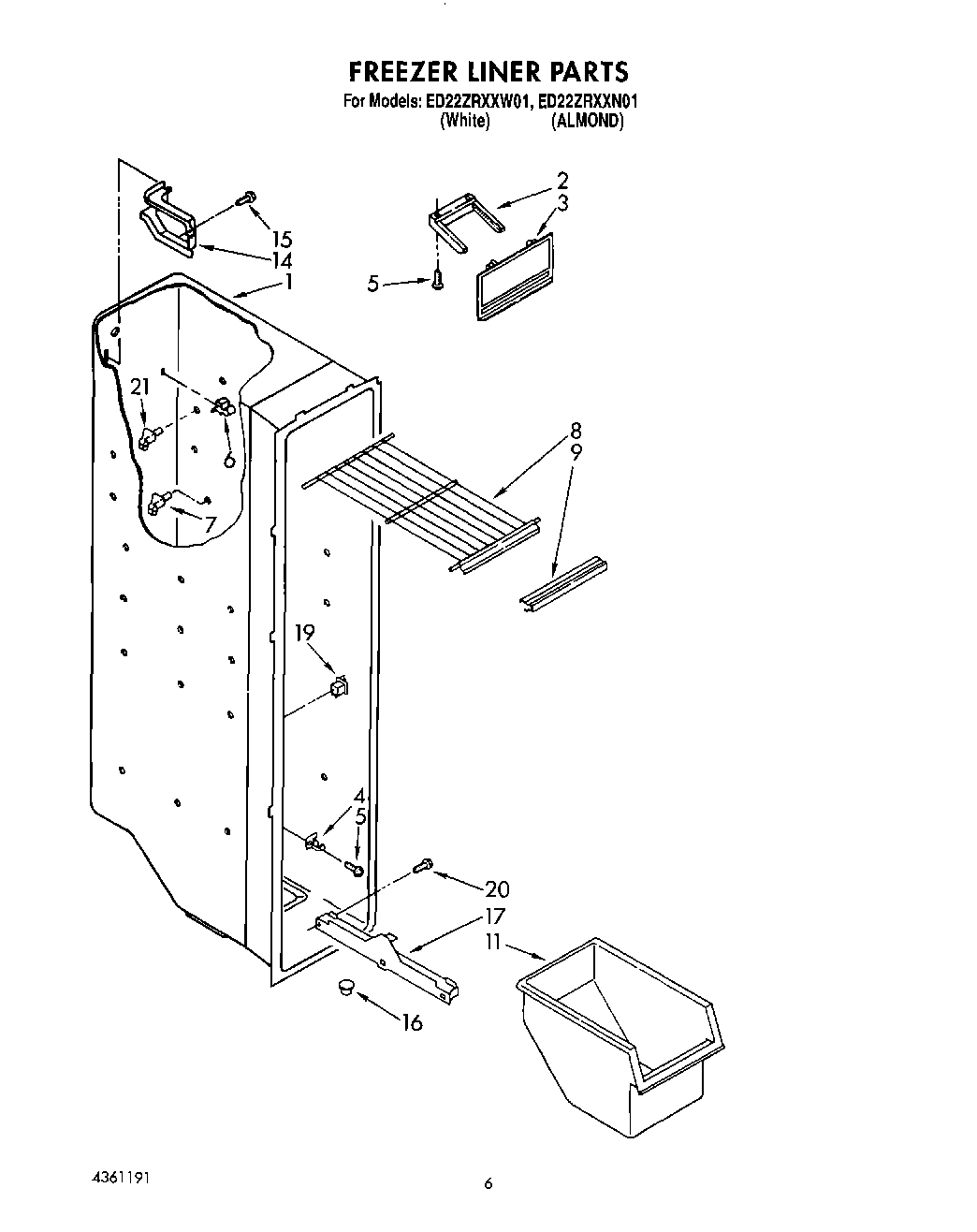

ED22ZRXXW01 05 – FREEZER LINER

ED22ZRXXW01 05 – FREEZER LINER

Written by

in

ED22ZRXXW01 05 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
3Door, Ice Compartment
4Evaporator, Support
5SCREW
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf (Long)
9Trim Shelf
11Bin, Freezer
14Wiring Cover
15WP488729 Whirlpool Refrigerator Door Screw
16Fitting, Drain
17Slide, Basket (Left Side)
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20Screw, 8 x 1
214388538 Whirlpool Refrigerator Stud Shelf Kit (White)
