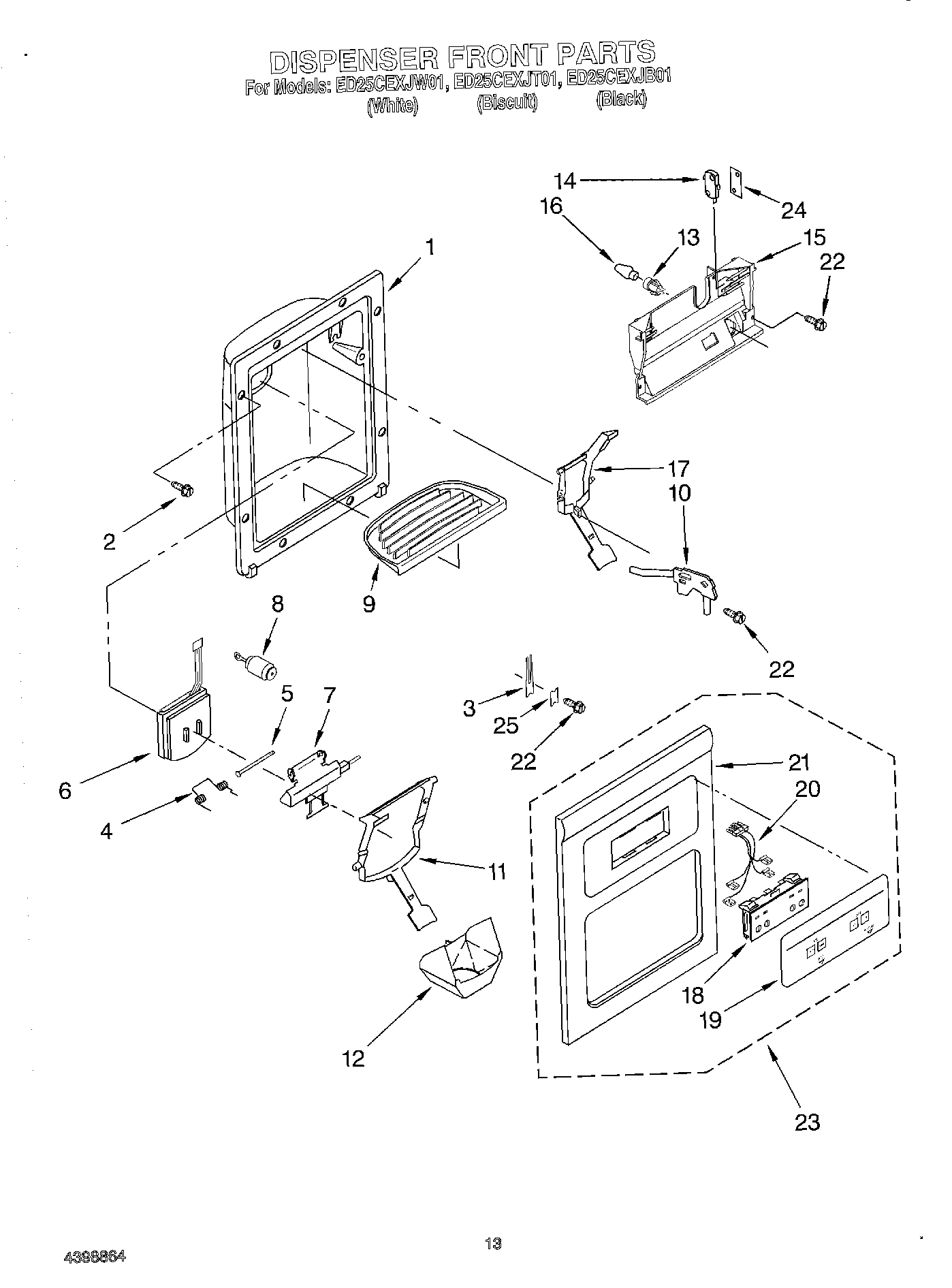

ED25CEXJW01 08 – DISPENSER FRONT

Products

Position	Product
1	Housing, Dispenser (Not a Serviceable Part)
2	WP489069 Whirlpool Compactor Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	Grille, Overflow (White)
9	Grille, Overflow (Biscuit)
9	Grille, Overflow (Black)
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (White)
11	Lever, Ice Dispenser (Black)
11	Lever, Ice Dispenser (Biscuit)
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2180200 Whirlpool Refrigerator Socket
14	WP2162361 Whirlpool Switch
15	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16	WP22002263 Whirlpool Dryer 10W Light Bulb
17	WPW10152858 Whirlpool Refrigerator Dispenser Arm
17	Lever, Water Dispenser (Biscuit)
18	WP2180279 Whirlpool Refrigerator Switch
19	Overlay, Front Cover (Biscuit)
19	Overlay, Front Cover (White)
19	Overlay, Front Cover (Black)
20	Wire Assembly
21	Front Cover, Housing (Not Available, Order No.23)
22	WP3400906 Whirlpool Refrigerator Screw
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Biscuit)
24	Spacer, Switch (2)
25	WP2195051 Whirlpool Refrigerator Clip
